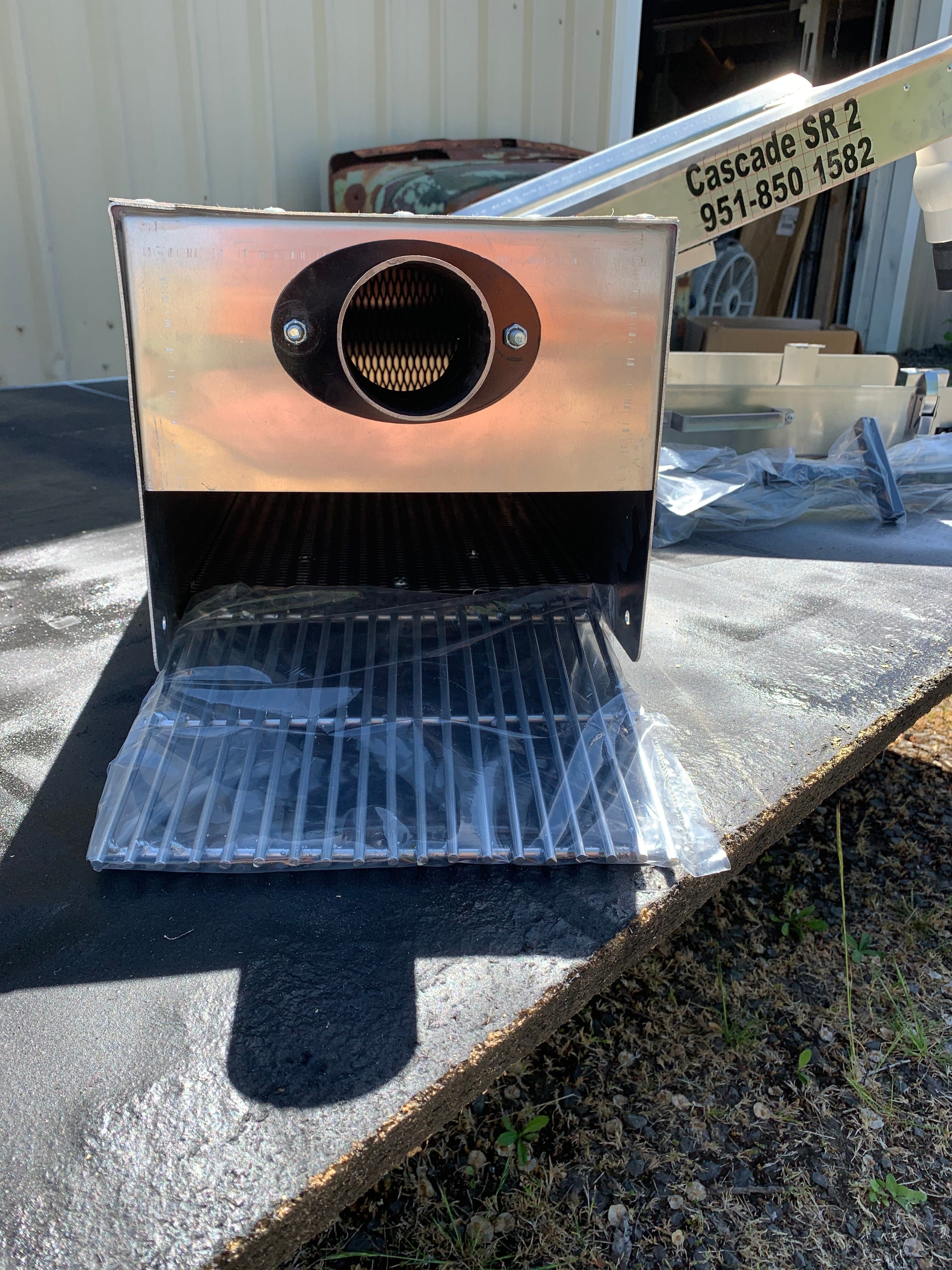

Cascade SR2 Highbanker and Crashbox Gold Recovery System
Process gold-bearing material with a durable, field-ready system designed for efficient washing, classification, and gold recovery. The Cascade SR2 combines a highbanker, sluice recovery section, and crashbox to create an even flow of water and material across the recovery trays.
The crashbox receives incoming water and helps distribute it across the sluice. This reduces uneven flow and gives the recovery system a more consistent opportunity to separate heavy gold from lighter sand and gravel.
Built for Productive Gold Prospecting
The Cascade SR2 is designed for prospectors who want to process more material than they could reasonably handle with a gold pan or small cleanup sluice. Its ten-inch-wide recovery section provides useful processing capacity while remaining manageable for field transportation and setup.
The system is suitable for streamside operation or a properly configured recirculating setup using a compatible pump, hose, water supply, and settling containers.
Removable Recovery Trays for Faster Cleanup
One of the Cascade system’s most useful features is its removable recovery-tray design. Instead of performing an extended teardown every time you want to inspect your concentrates, the trays can be removed, rinsed into a bucket, tub, or gold pan, and returned to the highbanker.
Keeping an additional set of compatible trays on hand may allow one set to be cleaned while another is placed into operation.
Key Features
-
Combined highbanker, sluice, and crashbox system
-
Crashbox helps distribute incoming water
-
Designed for processing gold-bearing sand and gravel
-
Approximately 10-inch-wide sluice section
-
Removable recovery trays simplify cleanups
-
Trays can be rinsed into a bucket, tub, or gold pan
-
Suitable for recovering fine and larger gold
-
Field-ready design for recreational prospecting
-
Can be used with an appropriately configured recirculating system
-
Adjustable setup helps establish the required sluice angle
-
Greater processing capacity than panning material by hand
What Is a Crashbox?
A crashbox receives water from the pump before it enters the sluice. The water’s energy is dispersed inside the box, helping create a more even flow across the recovery area.
A properly supplied crashbox can help reduce surging, uneven side-to-side flow, and concentrated streams of water that may interfere with material separation. Pump selection, hose size, sluice angle, material classification, and feed rate must still be matched to the system.
Operating Tips
For the best results:
-
Set the highbanker on firm, stable ground.
-
Establish the recommended sluice slope.
-
Connect a properly sized pump, hose, and nozzle.
-
Start the water and confirm even flow through the crashbox.
-
Feed material at a controlled, consistent rate.
-
Watch the recovery section and reduce the feed rate if it begins to overload.
-
Periodically inspect and clean the removable recovery trays.
Always test your tailings and adjust the water flow, slope, classification, and feed rate for the material being processed.
Product Specifications
-
Model: Cascade SR2
-
Product type: Highbanker and crashbox system
-
Sluice width: Approximately 10 inches
-
Sluice length: Approximately 28 inches
-
Recovery system: Removable recovery trays
-
Primary application: Processing gold-bearing sand, gravel, and concentrates
-
Water delivery: External pump required
-
Hose included: No
-
Nozzle included: No
-
Pump included: No unless specifically stated in the package contents
-
Power source included: No
What’s Included
Important Equipment Notice
A pump, hose, nozzle, power source, recirculating tub, and other equipment not specifically identified above are not included.
The correct pump and plumbing requirements should be confirmed before ordering. Using an undersized or oversized pump may prevent the highbanker from operating correctly.
Ideal For
-
Recreational gold prospecting
-
Streamside highbanking
-
Processing classified bank material
-
Working gold-bearing sand and gravel
-
Bulk concentrate processing
-
Recirculating gold-recovery systems
-
Prospectors who want removable, fast-cleanup recovery trays
Drop-Ship Processing Notice
This product ships from the manufacturer. Please allow approximately three to five business days before tracking information becomes available. Transit time begins after the manufacturer processes the order and may vary by destination.
Upgrade from hand processing to a more productive gold-recovery setup with the Cascade SR2 Highbanker and Crashbox.
The Cascade SR2 Highbanker and Crashbox is a great prospecting tool for gold miners and prospectors.
It combines a highbanker and sluice box for efficient processing of high volumes of material. Harvest gold with ease with this powerful and reliable system.
