Experience Minelab’s high-powered detecting technology with a complete three-coil MANTICORE package. The MANTICORE combines Multi-IQ+ simultaneous multi-frequency technology, an advanced two-dimensional Target ID map and extensive audio controls to provide serious detectorists with detailed information about targets before they dig.
This bundle includes three waterproof Double-D search coils for outstanding versatility. Navigate difficult terrain and target-filled ground with the compact M8, handle everyday detecting with the balanced M11, and search deeper while covering open ground efficiently with the large M15. The waterproof PRO-FIND 40 pinpointer, ML 105 wireless headphones and additional gear complete the detecting and recovery package.
Multi-IQ+ high-power simultaneous multi-frequency technology
Up to 50% more transmitted power than Minelab’s traditional Multi-IQ detectors

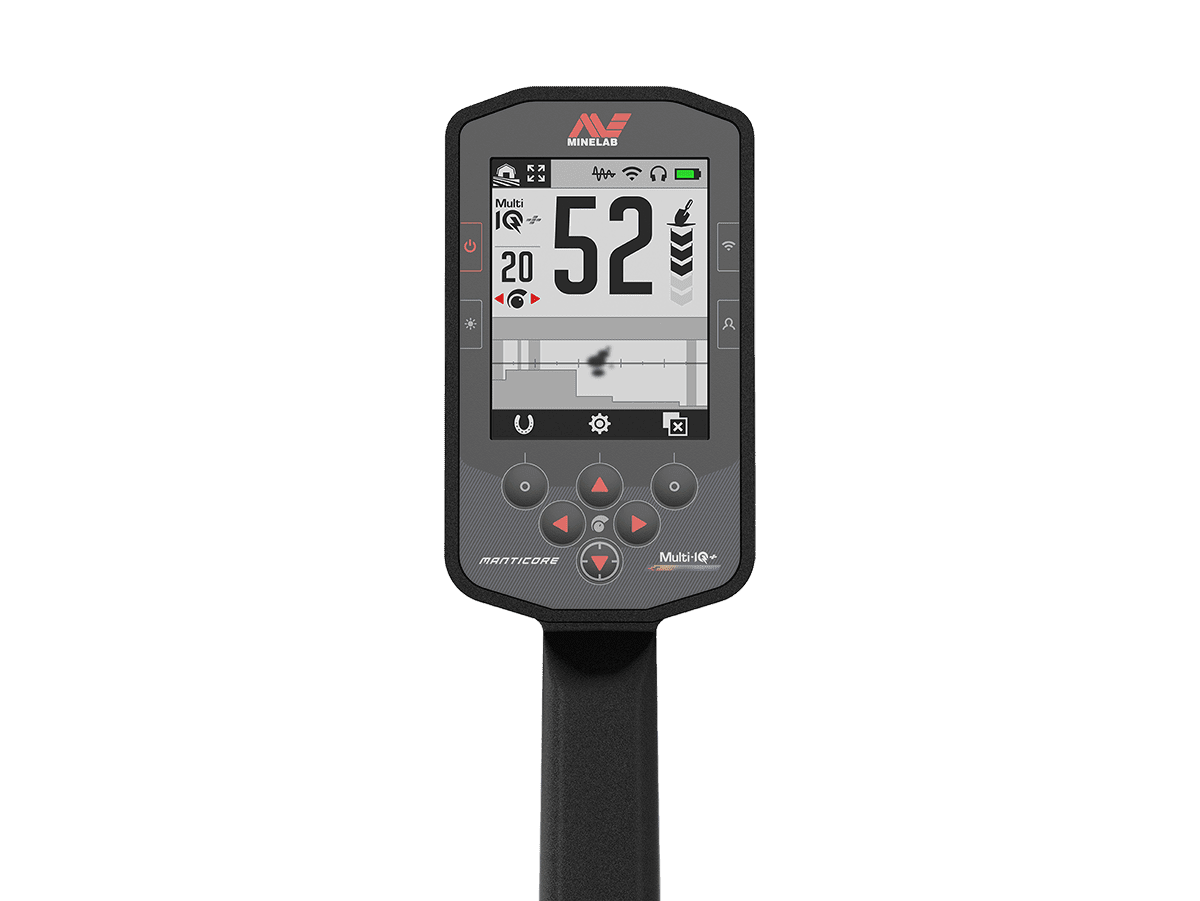

Advanced two-dimensional Target ID map
Target Trace provides visual target information
Conductive Target ID range from 0 to 99 with ferrous indication
Five All-Terrain search modes
Four Beach search modes
Goldfield search mode
Customizable user search profile
Selectable 5, 10, 15, 20 and 40 kHz single frequencies
Adjustable sensitivity from 1 to 35
Automatic, continuous automatic and manual Noise Cancel
Automatic, manual and tracking Ground Balance
Adjustable Recovery Speed
Customizable upper and lower Ferrous Limits
Multiple audio themes and volume profiles
Electronic pinpoint mode
Five-level depth indicator
Full-color LCD screen
Automatic or manually adjustable display brightness
Backlit keypad and control-pod flashlight
Proportional handgrip vibration
Three-piece collapsible carbon-fiber shaft
Built-in speaker and wired audio connection
Low-latency wireless audio
Fully waterproof to 16 feet
Software upgradeable through USB
Three-year Minelab limited warranty

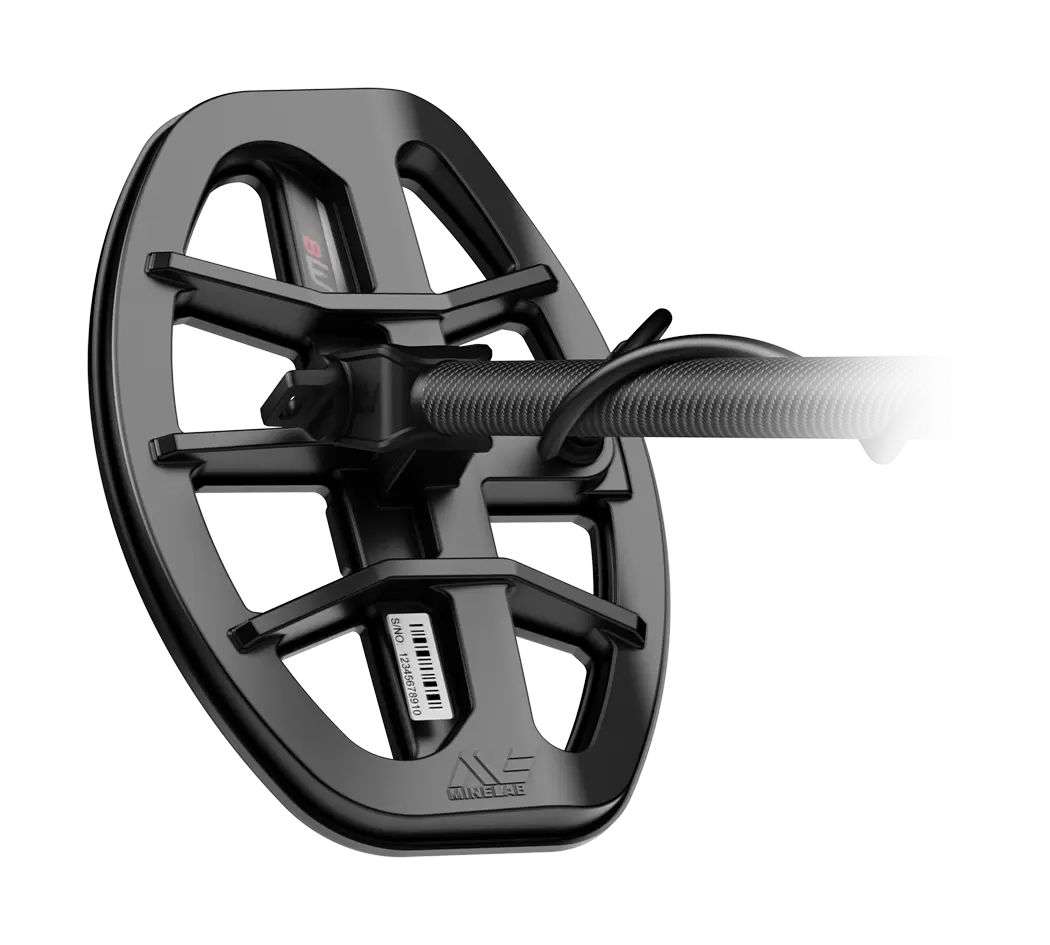

The compact elliptical M8 offers excellent sensitivity to small targets and improved maneuverability in difficult terrain. Its narrow footprint makes it particularly effective in iron-contaminated ground, modern trash, tight spaces and areas containing numerous obstacles.
Dimensions: 8" x 5.5"
Configuration: Elliptical Double-D
Weight with skid plate: Approximately 14.1 ounces
Waterproof depth: 16 feet
Best for: Target separation, small targets and difficult terrain
The standard M11 provides an excellent balance of depth, sensitivity, ground coverage and target separation. It is the versatile everyday choice for detecting coins, jewelry and relics in parks, fields, beaches and shallow water.
Diameter: 11 inches
Configuration: Round Double-D
Waterproof depth: 16 feet
Best for: General-purpose detecting

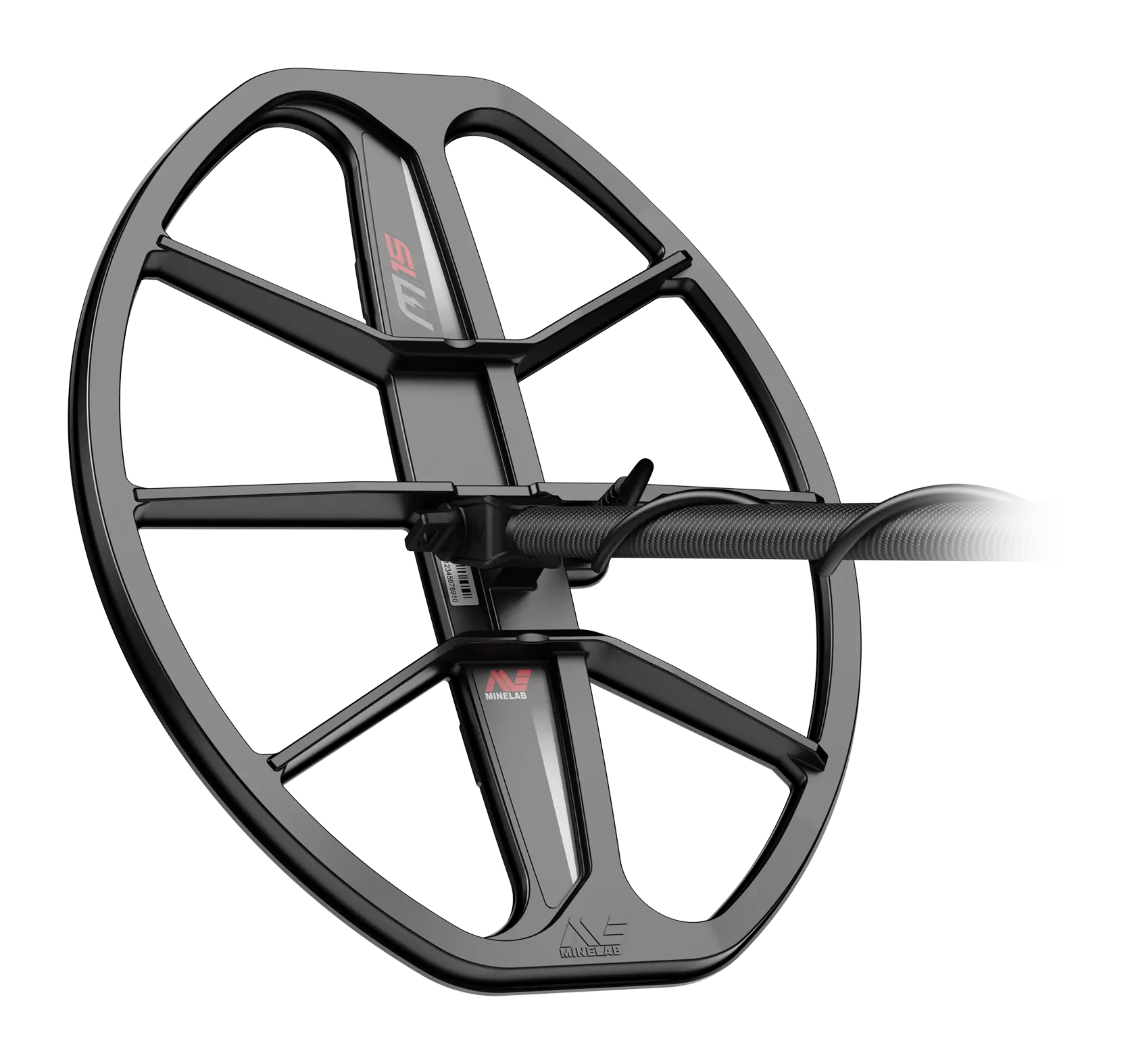

The large elliptical M15 provides maximum ground coverage and excellent depth potential for specialized treasure hunting. It is ideal for searching beaches, farm fields and other open areas where efficiency and depth are priorities.
Dimensions: 15" x 12"
Configuration: Elliptical Double-D
Weight with skid plate: Approximately 22.9 ounces
Waterproof depth: 16 feet
Best for: Maximum coverage and deeper targets

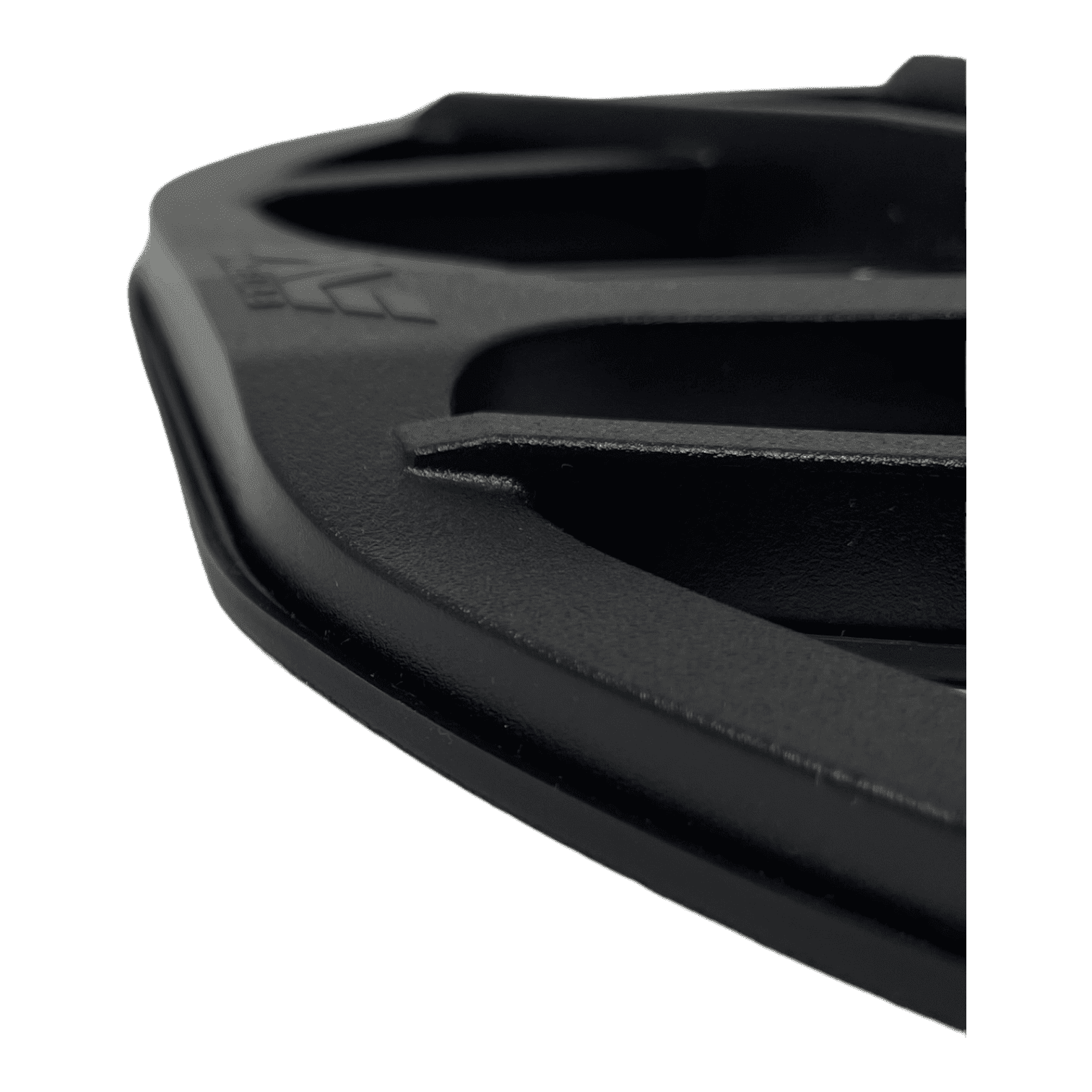

All three coils include protective skid plates.

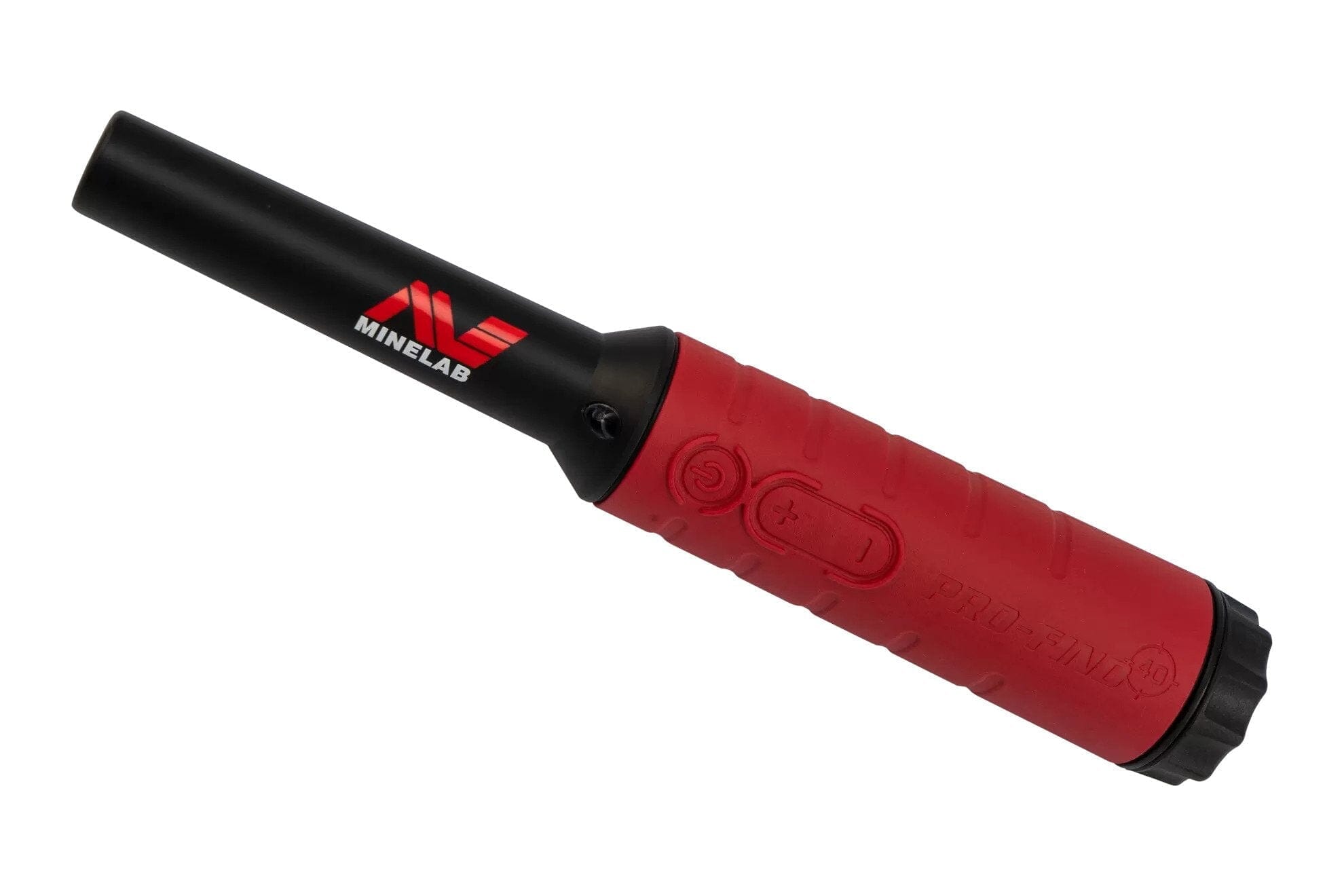

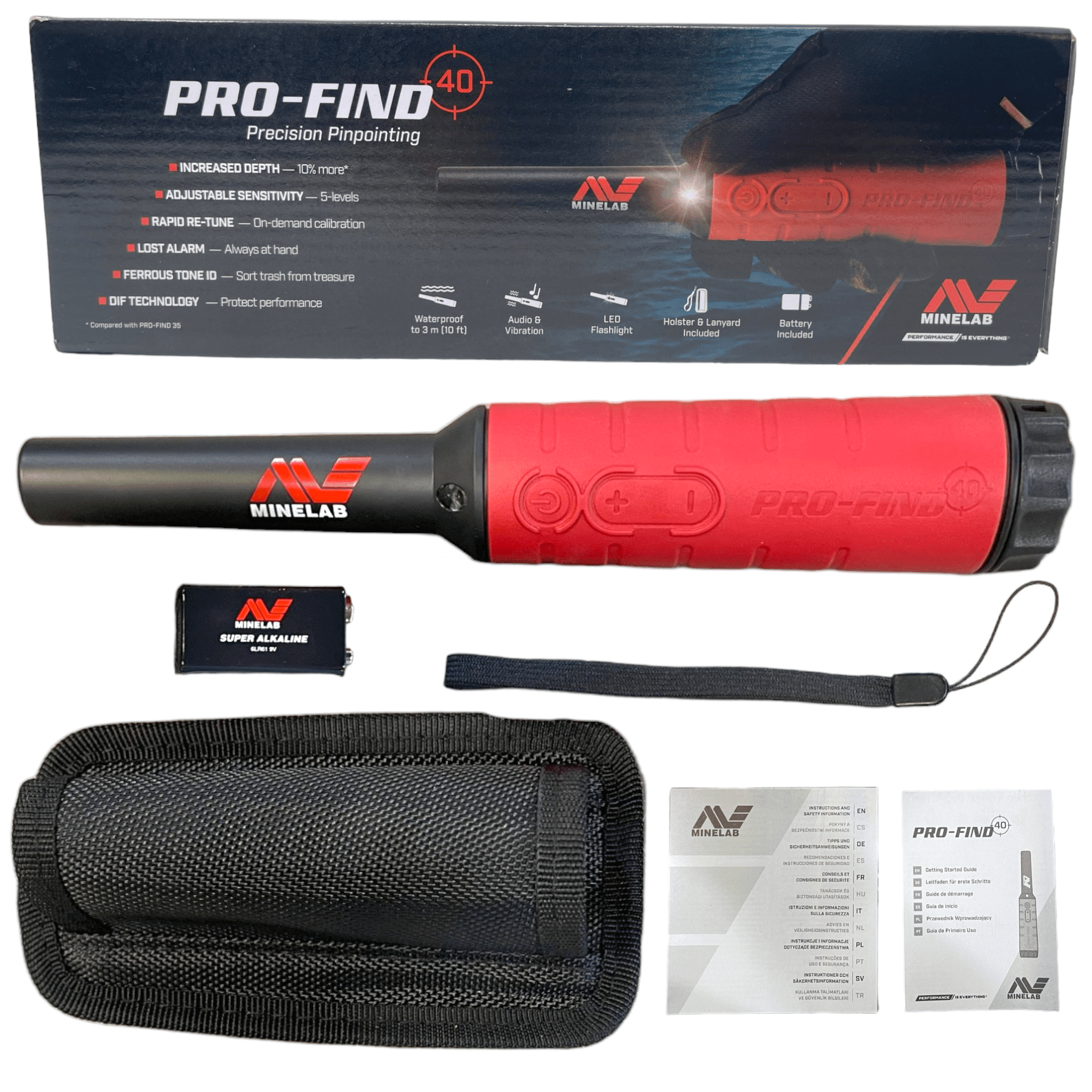

The included Minelab PRO-FIND 40 helps locate a detected object precisely within the recovery hole, loose soil, grass or sand. Five sensitivity levels provide control for different target sizes and ground conditions, while Ferrous Tone ID helps distinguish ferrous objects from potentially desirable finds.
Five adjustable sensitivity levels
Ferrous Tone ID
Detector Interference Free technology
Rapid Re-tune function
Audio and vibration target indication
Built-in LED flashlight
Lost-alarm function
High-visibility red handgrip
Waterproof to 10 feet
Up to 20 hours of battery life
Includes holster, lanyard and 9V battery
Two-year Minelab limited warranty
Choose from three coil sizes for different environments
Separate closely spaced targets with the compact M8 coil
Handle everyday hunting with the versatile M11 coil
Cover more ground and pursue deeper targets with the M15 coil
Evaluate targets using visual and audible information
Detect effectively in parks, fields, beaches and goldfields
Recover targets quickly with the PRO-FIND 40
Hear rapid target responses through ML 105 wireless headphones

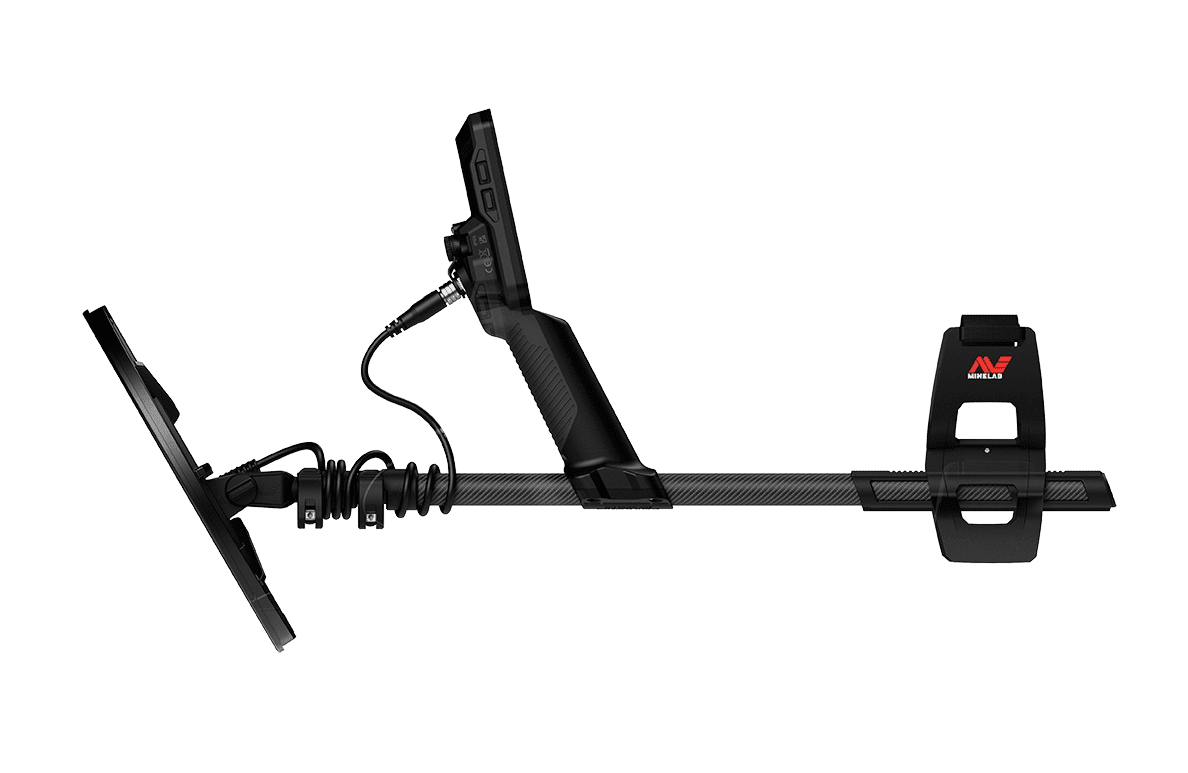

Collapse the carbon-fiber shaft for transportation and storage
Detect confidently on land or underwater
Detection technology: Multi-IQ+
Single-frequency options: 5, 10, 15, 20 and 40 kHz
Search modes: All-Terrain, Beach and Goldfield
Sensitivity range: 1–35
Target ID range: 0–99 with ferrous indication
Target display: Two-dimensional ID map with Target Trace
Recovery Speed: 0–8
Depth indicator: Five levels
Display: Full-color LCD
Audio: Built-in speaker, 1/8" wired output and low-latency wireless
Shaft: Three-piece collapsible carbon fiber
Extended length: Approximately 56.7 inches
Collapsed length: Approximately 24.8 inches
Weight with M11 coil: Approximately 2.9 pounds
Waterproof rating: IP68
Maximum waterproof depth: 16 feet
Battery: Internal rechargeable 3.7V, 6800mAh lithium-ion
Approximate operating time: 10 hours
Approximate charging time: Seven hours
Operating temperature: 14°F to 104°F
Storage temperature: -4°F to 158°F
Software upgradeable: Yes
Detector warranty: Three years
Technology: VLF
Sensitivity levels: Five
Waterproof depth: 10 feet
Length: Approximately 9.7 inches
Weight without battery: Approximately 6.6 ounces
Weight with battery: Approximately 8.3 ounces
Battery: One 9V PP3 battery
Battery life: Up to 20 hours
Warranty: Two years

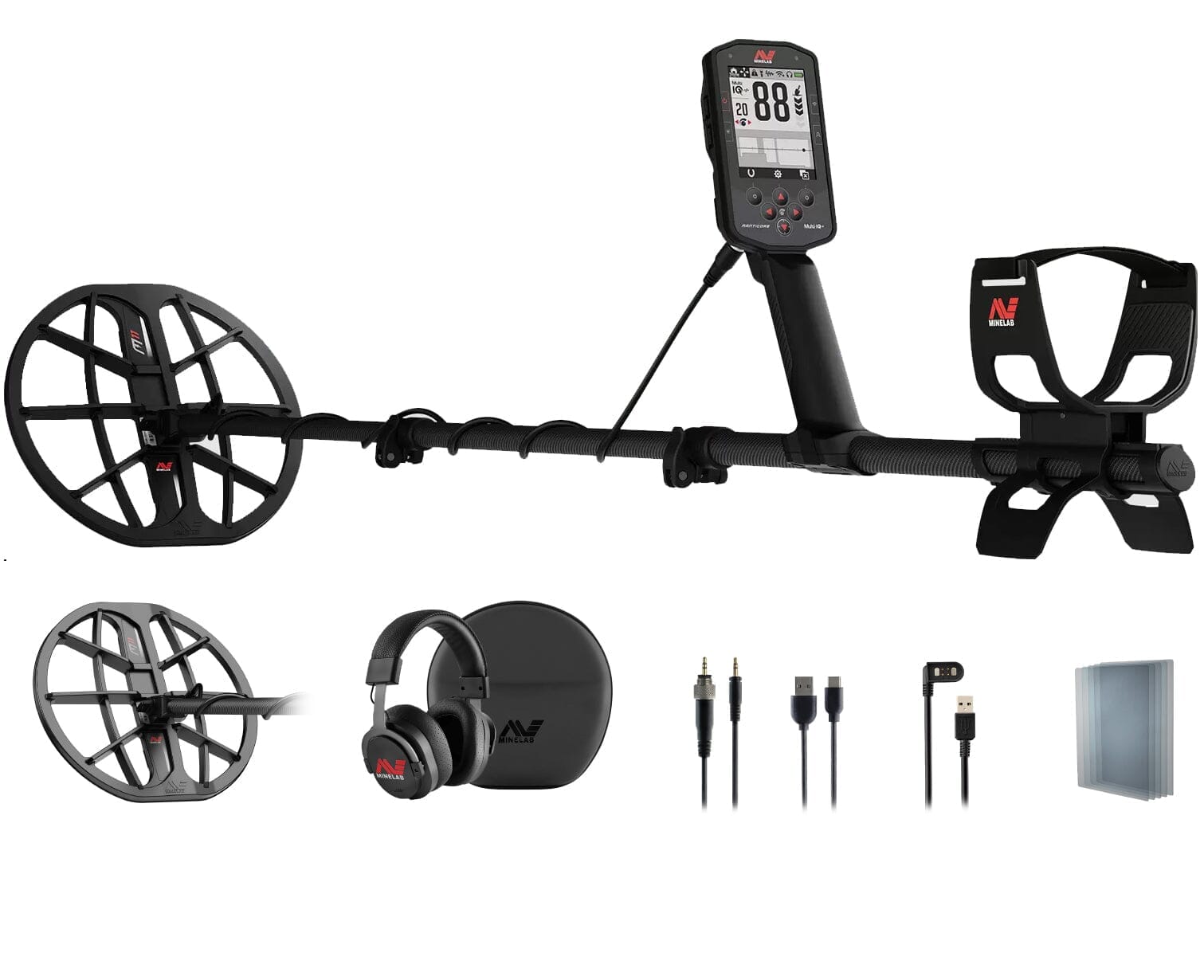

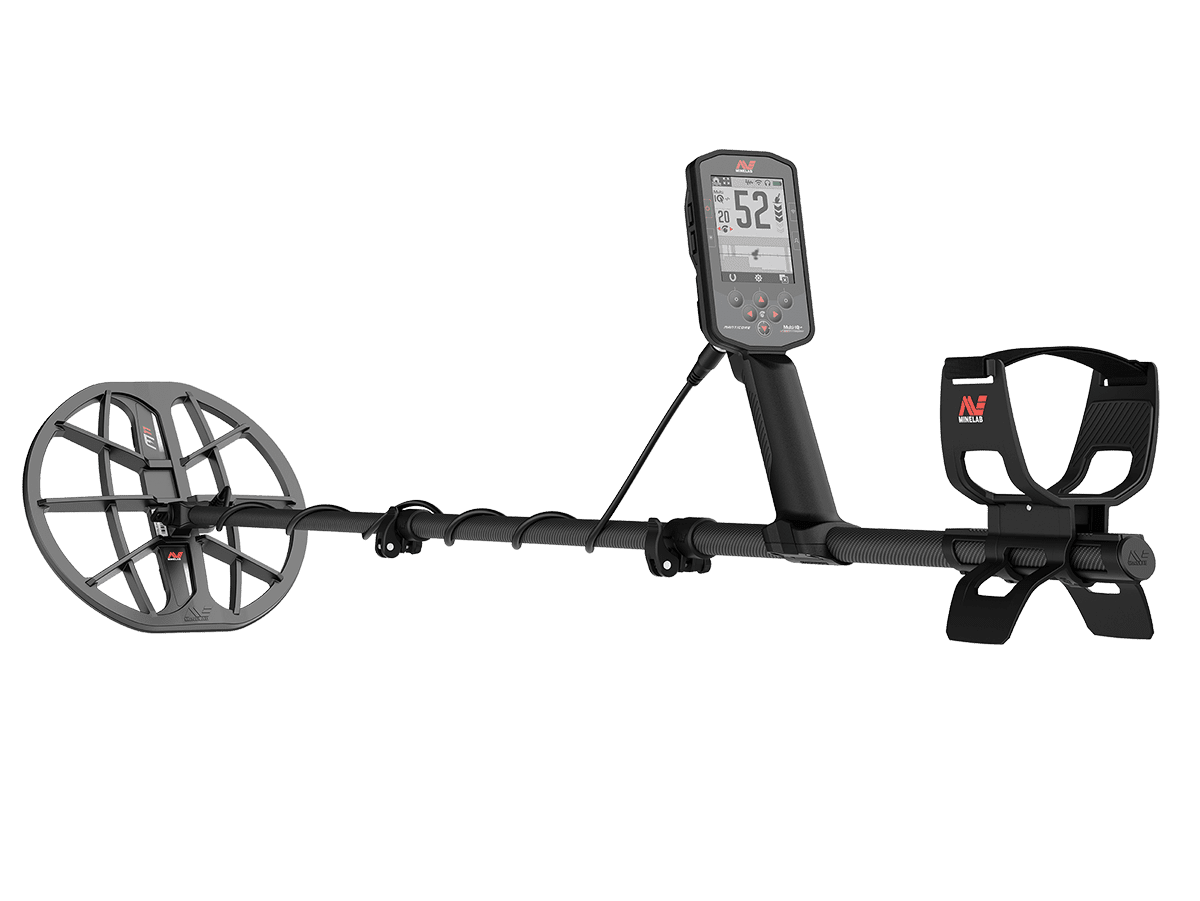

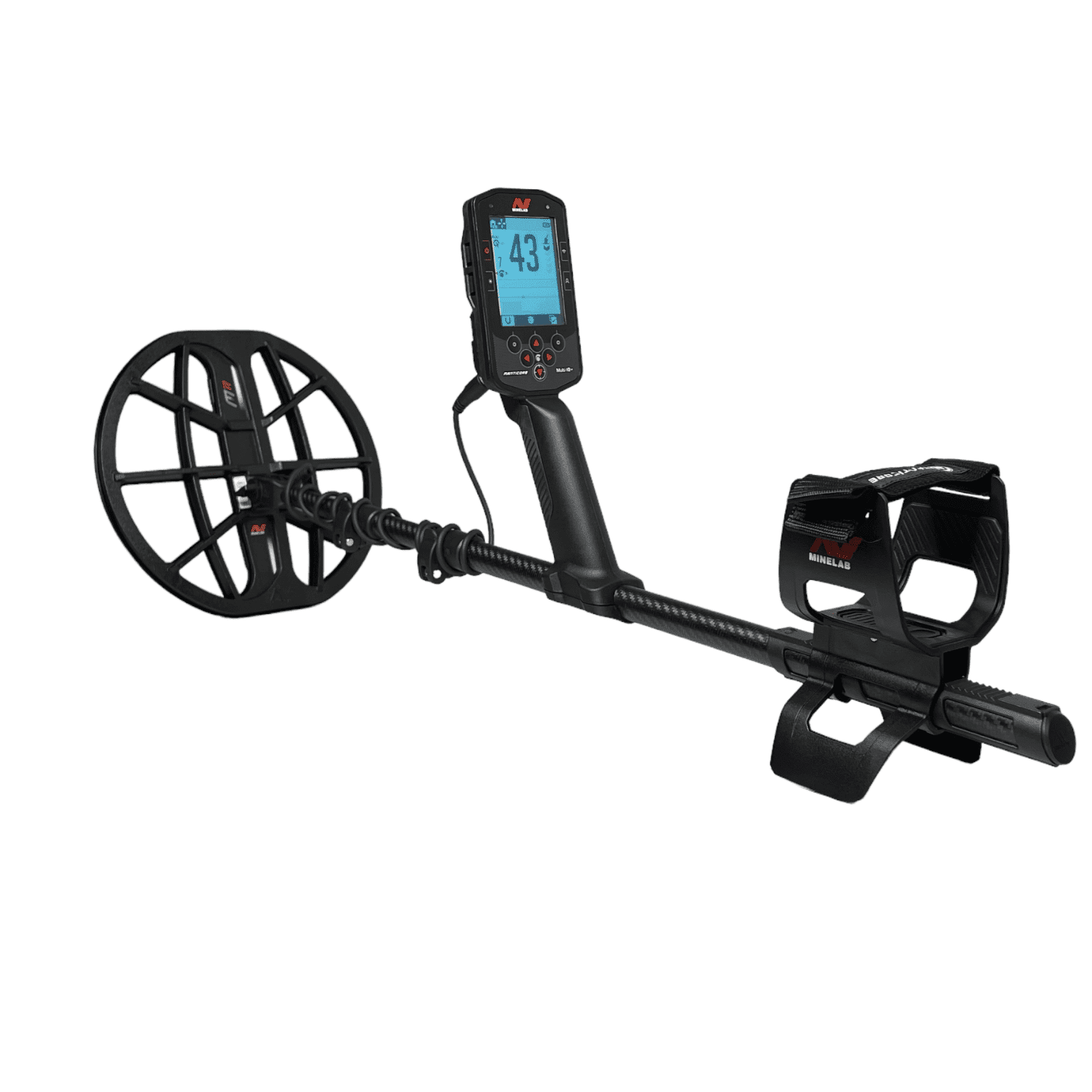

Minelab MANTICORE metal detector
M8 8" x 5.5" waterproof Double-D coil

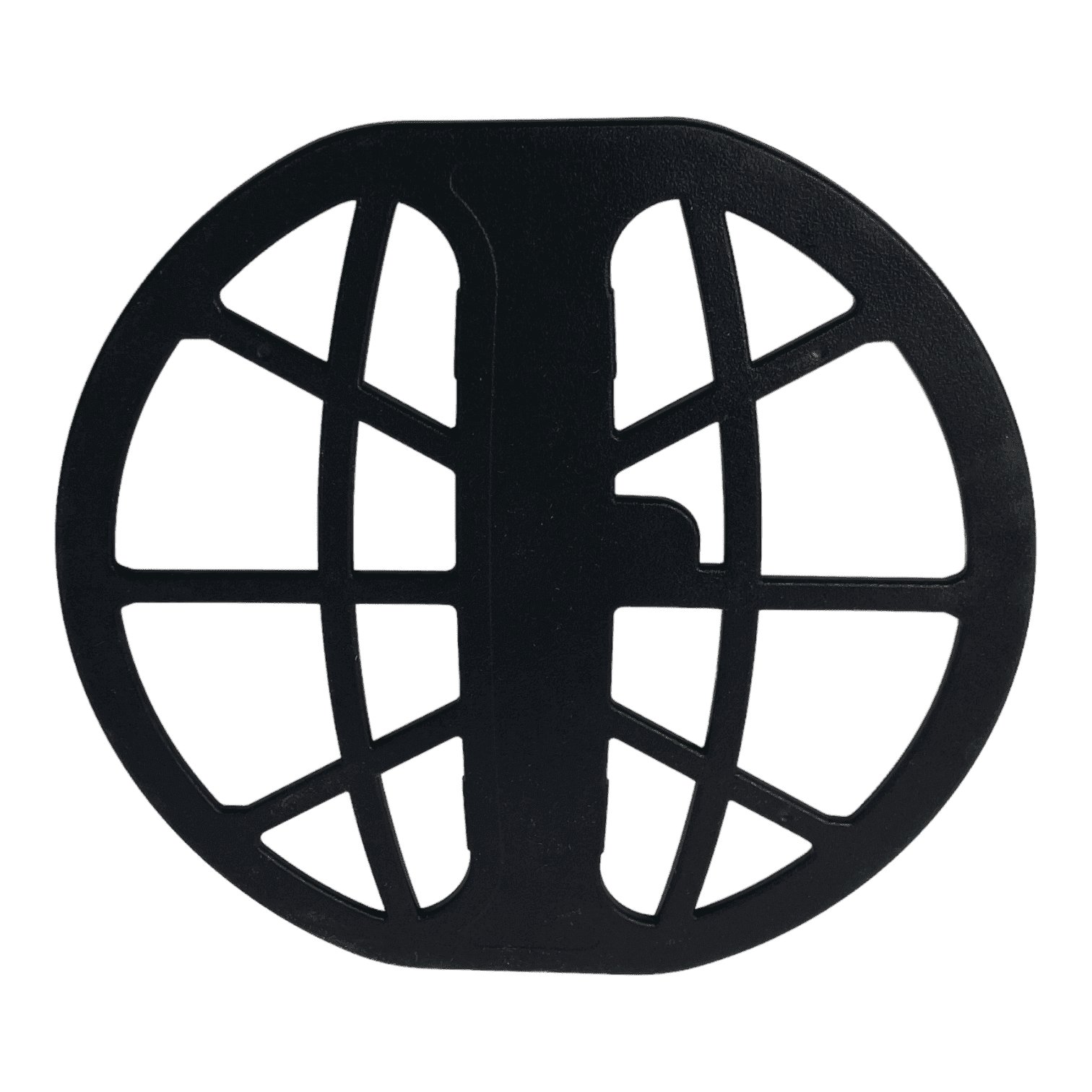

M8 protective skid plate

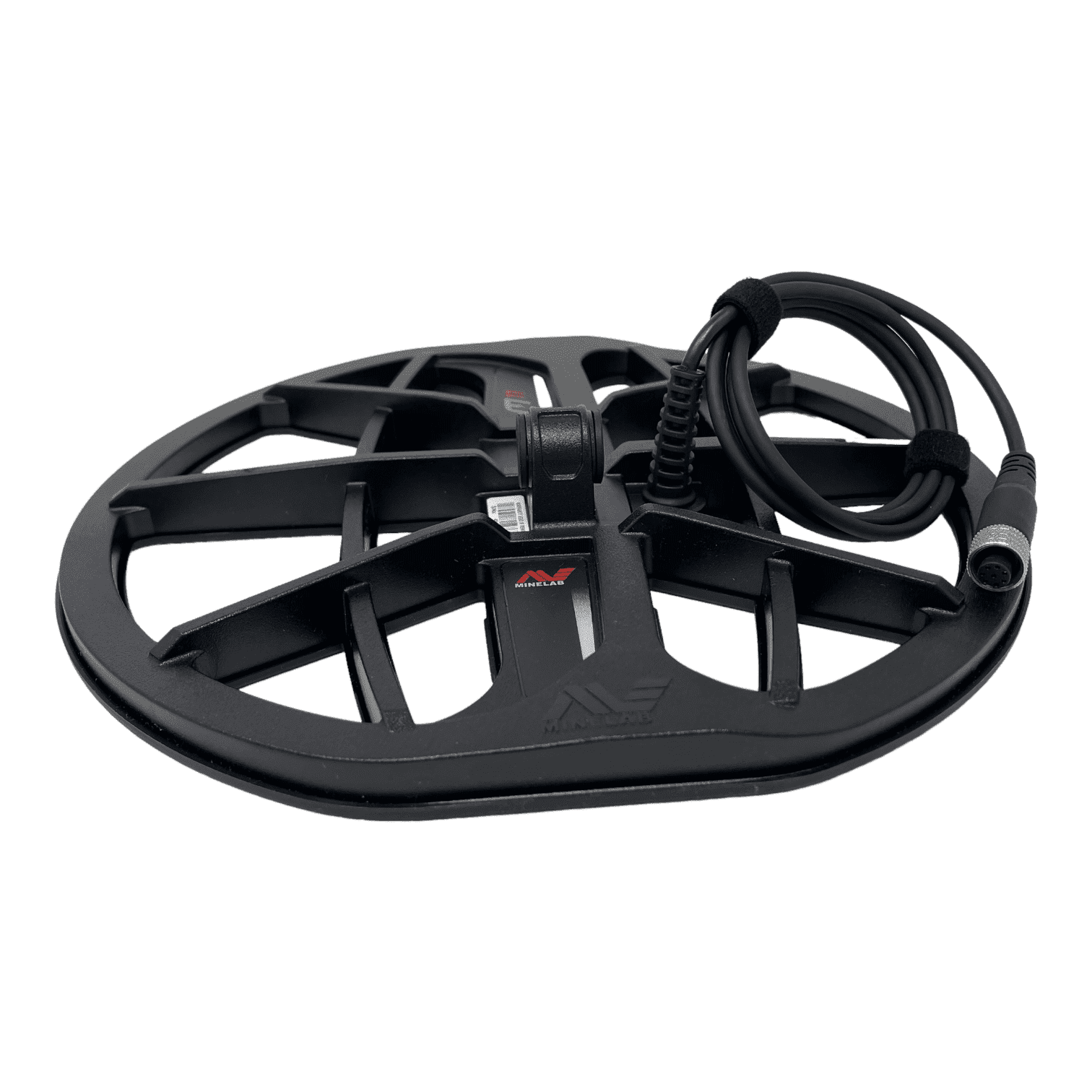

M11 11" waterproof Double-D coil
M11 protective skid plate
M15 15" x 12" waterproof Double-D coil
M15 protective skid plate
Minelab PRO-FIND 40 pinpointer
PRO-FIND 40 belt holster
PRO-FIND 40 lanyard
9V pinpointer battery

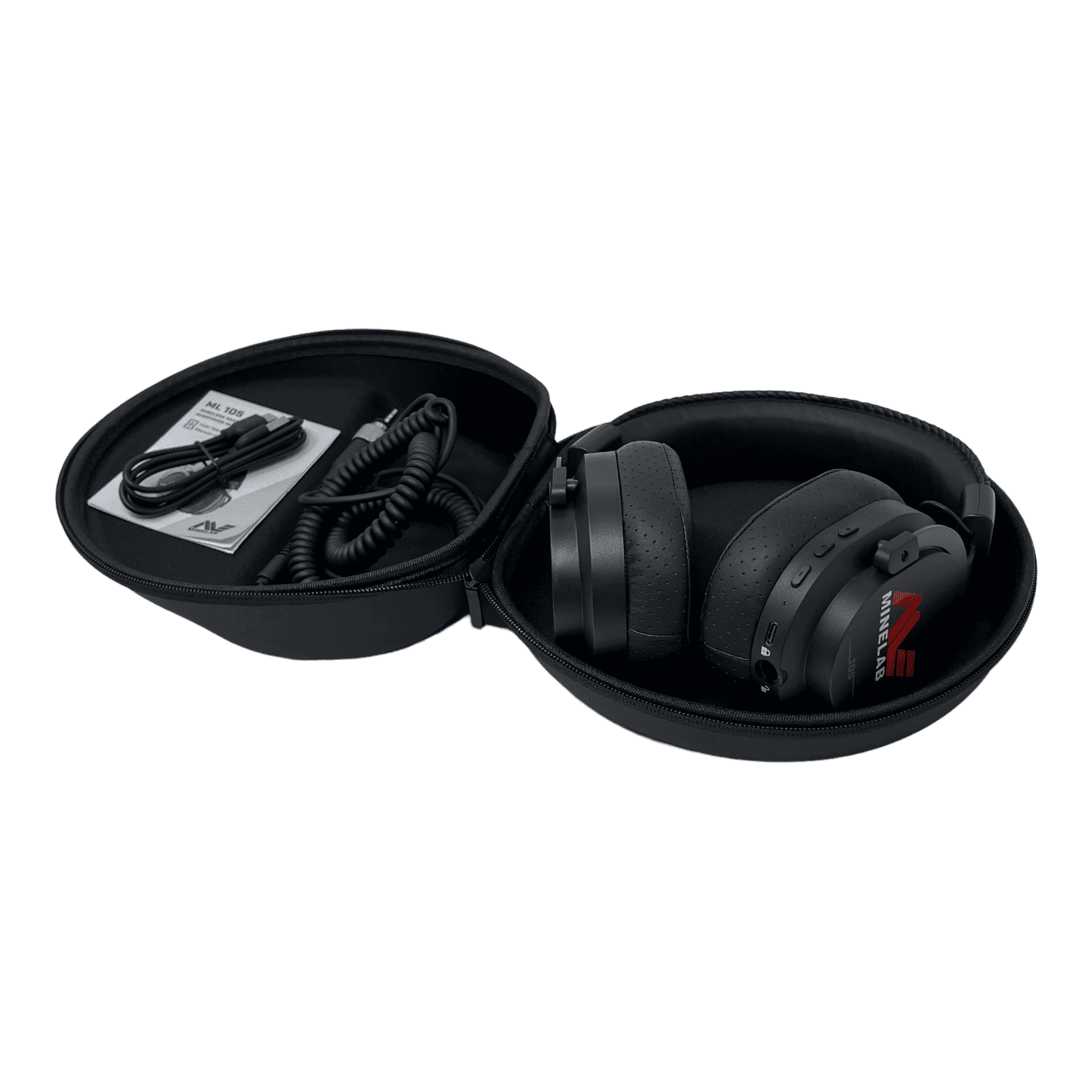

Minelab ML 105 low-latency wireless headphones
ML 105 hard carrying case
Headphone audio cable
Headphone charging cable
Magnetic USB detector charging cable

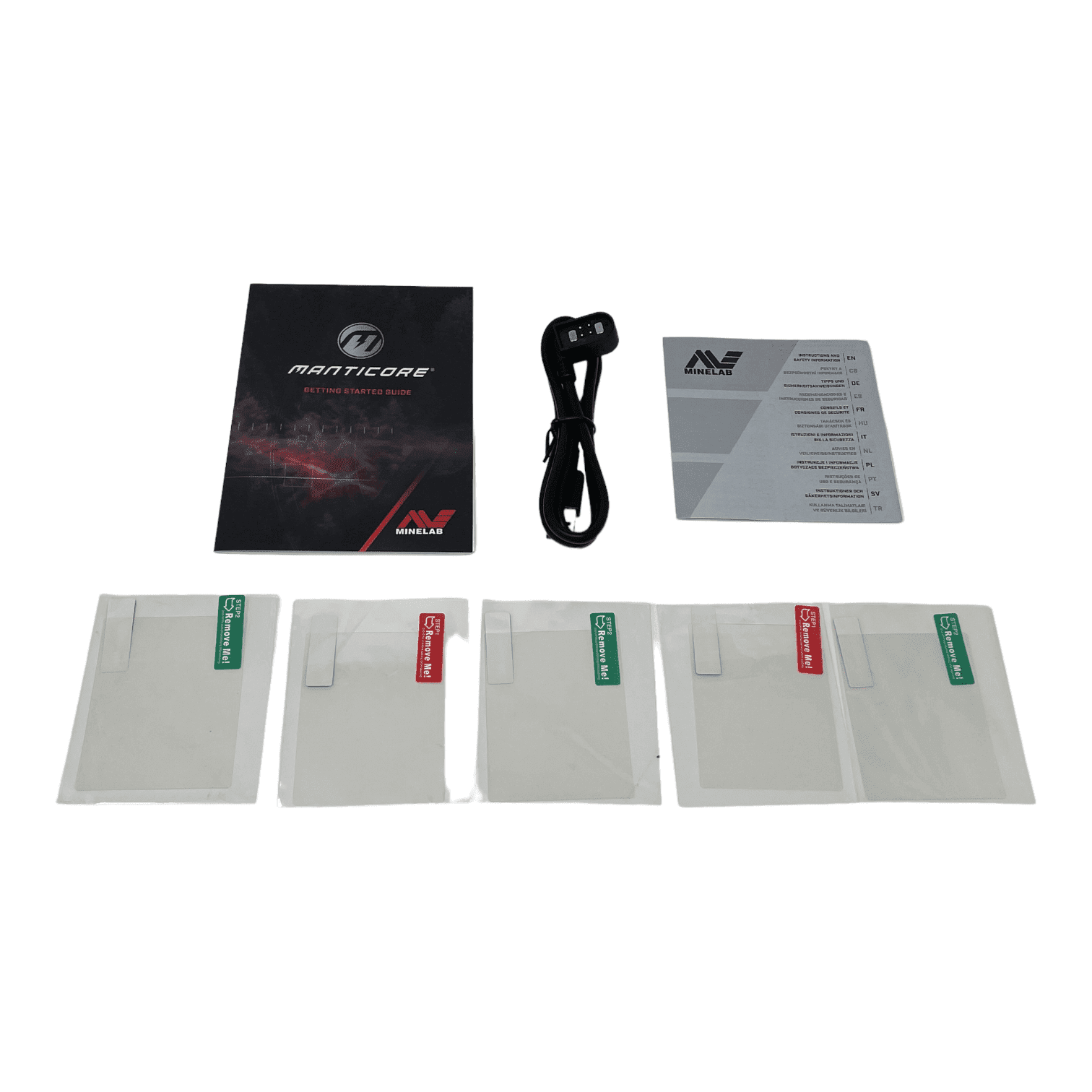

Five screen protectors
Getting Started Guide
Additional promotional gear
Serious coin and jewelry hunters
Relic detecting
Beach and surf hunting
Gold prospecting
Freshwater and saltwater detecting
Trashy or iron-contaminated sites
Difficult terrain and confined spaces
Deep-target searching
Large fields and open beaches
Advanced users who want extensive control
Detectorists wanting one system for diverse environments
The MANTICORE and all three search coils are waterproof to 16 feet. The PRO-FIND 40 is waterproof to 10 feet. The included ML 105 wireless headphones are not waterproof, and wireless audio does not operate when the detector is submerged. Compatible Minelab waterproof headphones are required for underwater audio.
The M8 and M15 coils are designed specifically for the Minelab MANTICORE and are not compatible with EQUINOX or X-TERRA detectors. Promotional gear may vary depending on availability; refer to the current product images and bundle selection for the additional gear included with the order.
Introducing the Manticore, featuring the revolutionary Multi-IQ+ technology – a true testament to Minelab's unwavering dedication to pushing the boundaries of innovation. This latest addition stands as the ultimate embodiment of power, speed, and precision in the realm of metal detectors. At its heart lies the unparalleled Simultaneous Multi-Frequency (MULTI-IQ+) engine, a technological masterpiece that outshines all its predecessors. With this extraordinary advancement, the Manticore elevates detection power by an impressive 50% compared to the esteemed EQUINOX, which stands as Minelab's best-selling detector series to date.This potency is further enriched by the seamless integration of advanced 2D Target Identification (ID) and a wide array of immersive audio options. All critical information is effortlessly delivered to the detectorist's senses. Embarking on a detecting adventure with the Manticore ensures an unparalleled experience that transcends the limits of traditional detection methods. Prepare yourself for heightened potency, increased depth capabilities, and an abundance of groundbreaking discoveries like never before.

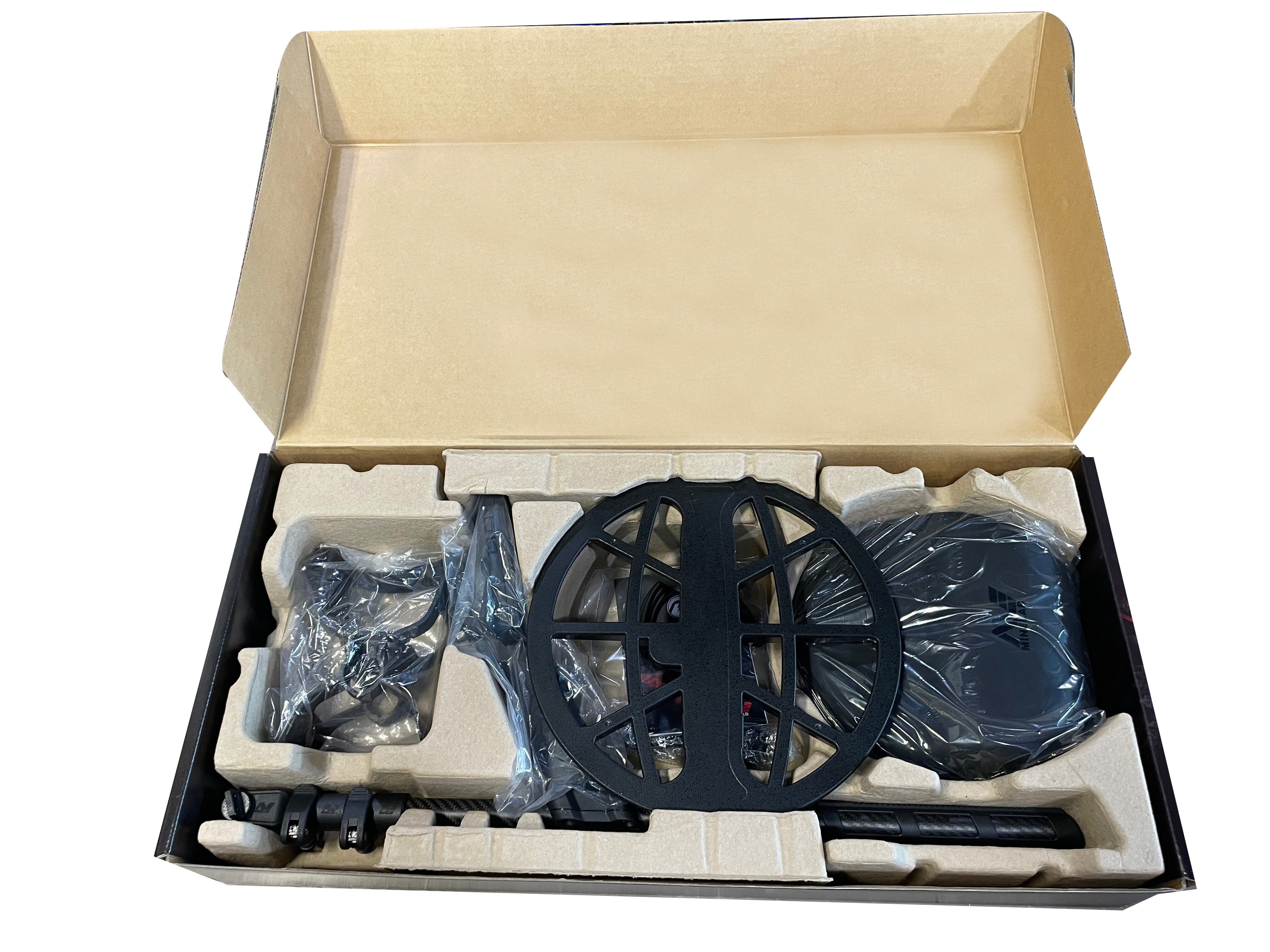

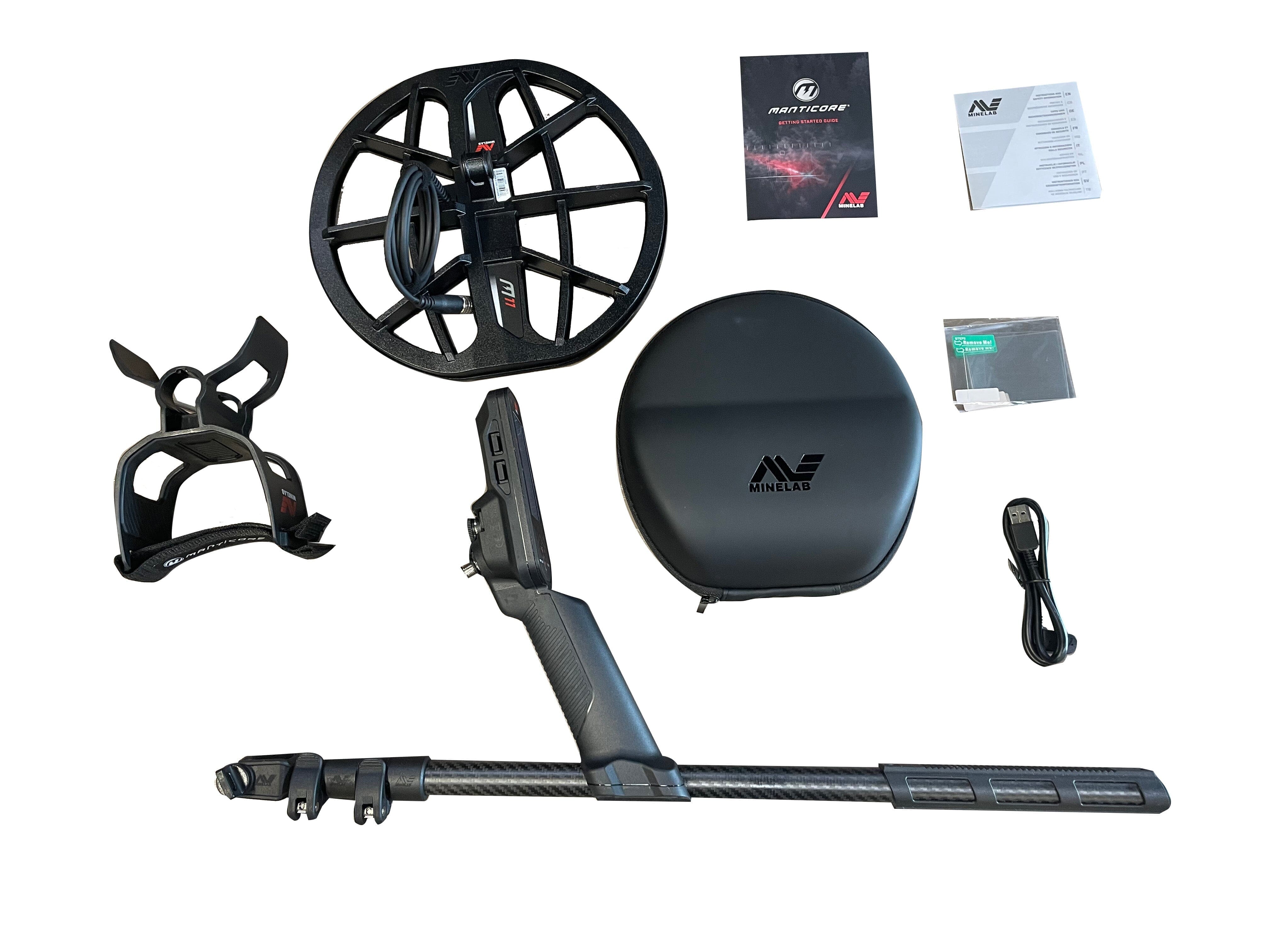

This package includes the following:
This package also includes:

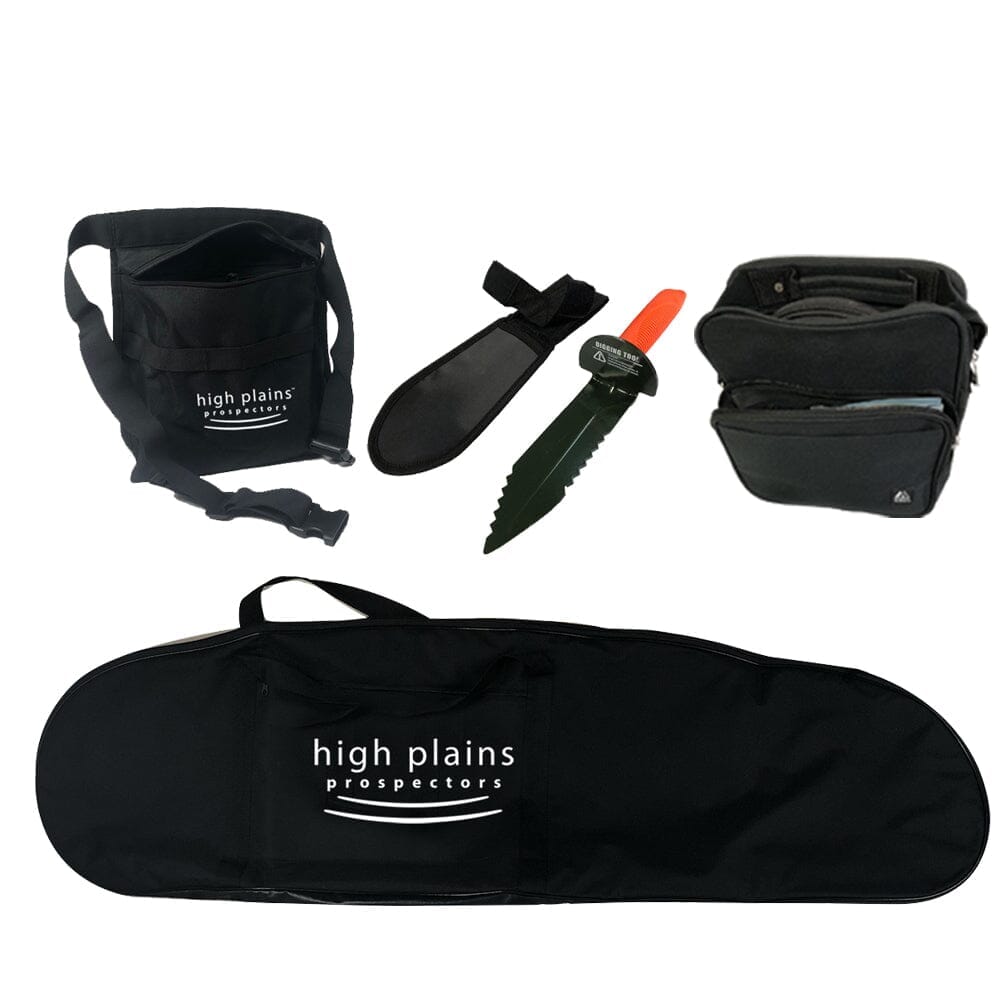

High Plains Prospectors is offering these free items with this bundle:
Click the dropdowns below for exclusive High Plains key features, additional search coils, specifications, and downloads
MANTICORE with Multi-IQ+ is the most powerful, fastest, and precise metal detector in Minelab’s history. The heart of MANTICORE is its super-charged Simultaneous Multi-Frequency (MULTI-IQ+) engine. This feat of innovation generates an incredible 50% power increase over the best-selling detector series of all time: EQUINOX. When combined with advanced 2D Target Identification (ID) and rich audio options, the detectorist has every bit of vital information arriving at their eyes and ears. MANTICORE is an unrivalled detecting experience that pushes the boundaries of detecting to deliver more power, more depth, and more finds.
Discover Hidden Treasures with Unparalleled Precision
Introducing the Manticore High Power Metal Detector, our Minelab's powerful detector yet. With its advanced capabilities and cutting-edge technologies, the Manticore outperforms even the most high-end models in the market. Experience a new level of power, precision, and accuracy that will revolutionize your metal detecting journey.
Unmatched Performance with Multi IQ+ Technology
Equipped with Minelab's revolutionary Multi IQ+
technology, the Manticore delivers 50% more power than traditional models, making it the highest-powered simultaneous multi-frequency machine available. Say goodbye to missed targets and hello to unprecedented detection capabilities. No target will go undetected, even in the most challenging
environments.
Boosted EMI Immunity
There may be a storm raging outside but inside MANTICORE it’s quiet and calm. Improved EMI rejection means it’s possible to operate using higher sensitivity whilst isolating target information — even in the most challenging environmental conditions.
Fast Response and Target Identification
Time is of the essence when it comes to metal
detecting, and the Manticore doesn't disappoint. Its fast response allows you to quickly and confidently identify your targets, enabling efficient sorting between trash and treasure. Experience exceptional target separation performance that enhances your detecting efficiency and eliminates unnecessary
digging.
Visualize
and Understand Your Targets
The Manticore comes with a powerful 2D ID map that provides greater visual and audible target insights. Easily identify your targets with enhanced clarity and make informed decisions on whether to accept or reject finds. With its exceptionally accurate target ID, you can confidently focus on the valuable discoveries that await you.
Wireless
Audio for Enhanced Detection
Say goodbye to tangled wires and hello to wireless
freedom. The Manticore offers wireless audio capabilities, allowing you to detect with confidence and precision. Customize the audio controls to your
preference, reducing noise and honing in on valuable targets. With clear and crisp sound, you'll never miss a signal again.
Lighting and Vibration
The daylight may have ended, but that doesn’t mean your hunt has to. With Control Pod Flashlight, Display
Backlight with Auto Adjust, and Backlit Keypad, plus Handgrip Vibration, you can power on long after the sun has gone.
Customizable Search Modes
With over 10+ preset search modes, the Manticore
empowers you to set the stage for success. Whether you're a beginner or a seasoned detectorist, these predefined modes cater to various hunting scenarios. Additionally, you have the flexibility to customize up to 10 unique modes tailored to your specific needs. Unleash your detecting potential and optimize your chances of unearthing remarkable finds.
Built
to Conquer Any Terrain
The Manticore is not only powerful but also built to
withstand the rigors of metal detecting. Its unrivaled construction combines strength and lightweight design, with a three-piece compact Carbon-Fiber shaft system. Weighing in at only 1.3 kg (2.9 lbs.), it ensures comfortable and effortless detecting for extended periods. Plus, with its waterproof capability
of up to 16 ft (5 m), you can explore even the most challenging environments with confidence.
IntuitiveControl for Seamless Operation
Navigating through your metal detecting adventures hasnever been easier. The Manticore features a large LCD panel that provides clearvisibility and intuitive control. Effortlessly adjust settings, access vital
information, and fine-tune your detector to suit your preferences. Withuser-friendly navigation, you can focus on the thrill of the hunt without any distractions.
Unmatched Reliability and Support
Investing in the Manticore High Power Metal Detector means investing in long-term
