Get added versatility from the Minelab EQUINOX 700 with an additional EQX 06 6-inch search coil. Powered by Minelab’s Multi-IQ simultaneous multi-frequency technology, the EQUINOX 700 delivers accurate target identification, excellent separation and reliable performance in parks, fields, beaches and underwater environments.
Use the standard 11-inch Double-D coil for balanced depth and ground coverage, then switch to the compact 6-inch coil when searching trash-filled sites, confined spaces or areas containing numerous obstacles. This two-coil package gives detectorists the flexibility to adapt the EQUINOX 700 to a wide range of conditions.
Multi-IQ simultaneous multi-frequency technology
Four selectable single frequencies: 4, 5, 10 and 15 kHz
Park, Field and Beach search modes
Six customizable search profiles
All-Metal shortcut
High-resolution Target ID system with 119 segments
Target ID range from -19 to 99
Adjustable Recovery Speed
Adjustable Iron Bias
Automatic, manual and tracking Ground Balance
Automatic and continuous automatic Noise Cancel
Electronic pinpoint mode
Five-level target-depth indicator
Multiple target-tone options
Advanced audio controls
Red monochrome LCD backlight
Backlit keypad
Built-in control-pod flashlight
Handgrip vibration with separate ferrous control
Built-in speaker
Wired and low-latency wireless audio
Lightweight three-piece carbon-fiber shaft
Fully waterproof to 16 feet
Internal rechargeable lithium-ion battery
Three-year Minelab warranty

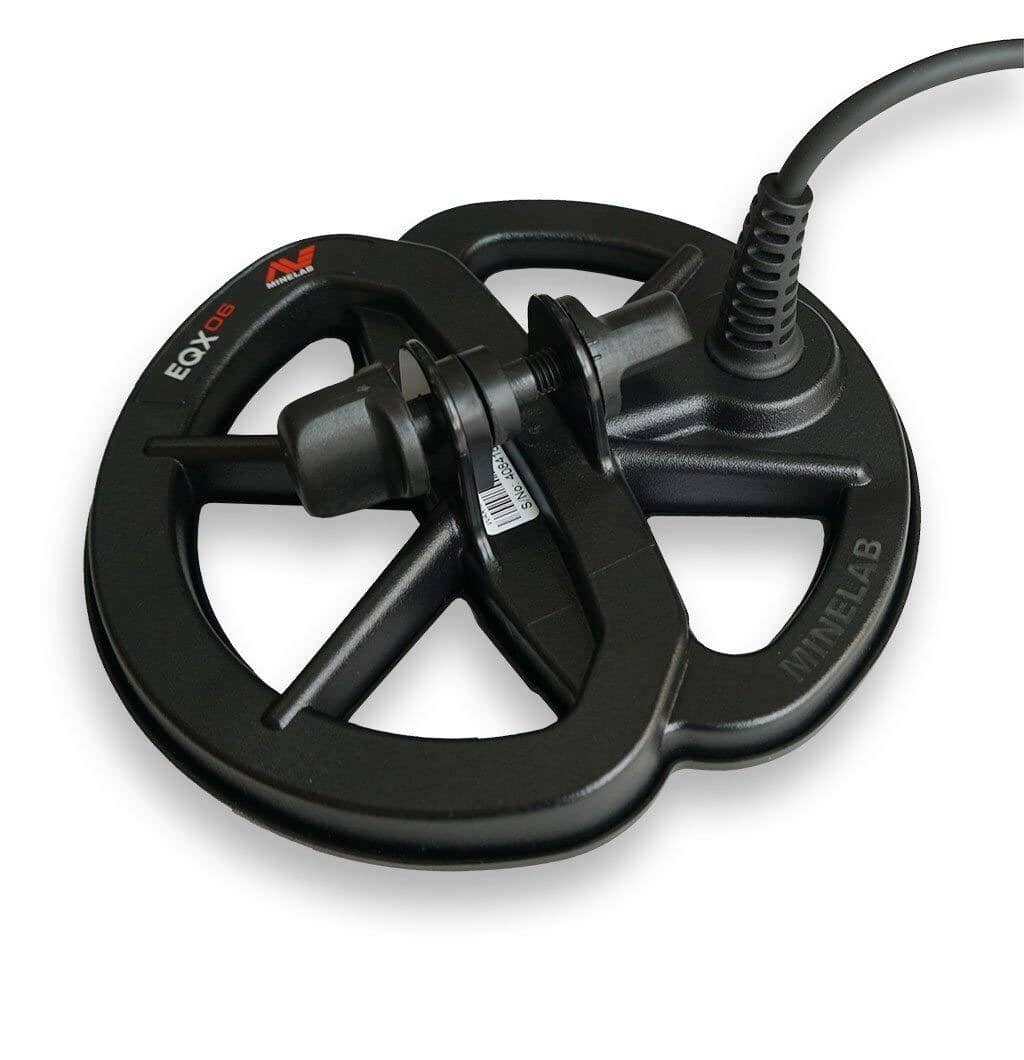

The compact EQX 06 provides excellent maneuverability, sensitivity to small targets and separation between closely spaced signals. Its narrow detection footprint makes it especially effective in iron-contaminated ground and areas containing modern trash.
Diameter: 6 inches
Configuration: Round Double-D
Waterproof depth: 16 feet
Protective skid plate: Included
Best for: Trashy sites, small targets and confined spaces
The standard EQX 11 delivers a practical balance of detection depth, ground coverage, sensitivity and target separation. It is the versatile everyday coil for coin, jewelry and relic hunting.
Diameter: 11 inches
Configuration: Round Double-D
Waterproof depth: 16 feet
Protective skid plate: Included
Best for: General-purpose detecting
Separates desirable targets from nearby iron and trash
Fits between rocks, roots and other obstacles
Maneuvers easily around playground equipment
Provides excellent sensitivity to small targets
Reduces the amount of ground beneath the coil at one time
Works well in cellar holes, foundations and heavily hunted locations
Offers a lightweight alternative to larger search coils
Remains fully waterproof for beach and underwater detecting
Detection technology: Multi-IQ simultaneous multi-frequency
Single-frequency options: 4, 5, 10 and 15 kHz
Search modes: Park, Field, Beach and All Metal
Custom search profiles: Six
Sensitivity: 1–25
Target ID range: Ferrous -19 to 0; non-ferrous 1 to 99
Discrimination segments: 119
Recovery Speed: 1–3
Iron Bias: 0–3
Depth indicator: Five levels
Display: Monochrome LCD
Display and keypad backlight: Red
Audio: Speaker, 1/8" wired output and low-latency wireless
Included headphones: Minelab ML 85 wireless headphones
Shaft: Three-piece collapsible carbon fiber
Extended length: Approximately 56.7 inches
Collapsed length: Approximately 24 inches
Weight with EQX 11 coil: Approximately 2.8 pounds
Waterproof rating: IP68
Maximum waterproof depth: 16 feet
Battery: Internal rechargeable 3.7V, 5100mAh lithium-ion
Operating temperature: 14°F to 104°F
Storage temperature: -4°F to 158°F
Detector warranty: Three years
Minelab EQUINOX 700 metal detector
EQX 06 6" waterproof Double-D coil
EQX 06 protective skid plate
EQX 11 11" waterproof Double-D coil
EQX 11 protective skid plate
Minelab ML 85 low-latency wireless headphones
Magnetic detector charging cable
Screen protector
Search-coil mounting hardware
Getting Started Guide
Coin and jewelry hunting
Relic detecting
Park and field detecting
Beach and surf hunting
Freshwater and saltwater environments
Trashy or iron-contaminated sites
Playgrounds and confined spaces
Cellar holes and old foundations
Areas containing rocks, roots or heavy vegetation
Detectorists wanting two versatile search-coil sizes
The EQUINOX 700 and both included search coils are waterproof to 16 feet. The supplied ML 85 wireless headphones are not waterproof, and wireless audio does not operate while the detector is submerged. Compatible waterproof headphones are required for underwater audio.
Introducing the enhanced Minelab Equinox 700 Metal Detector – Powered by Minelab's groundbreaking Multi-IQ technology, this detector showcases a remarkable 119 High Resolution Target ID system, unmatched target separation, and boasts a waterproof design, rated to withstand depths of up to 5 meters (16 feet) with an IP68 rating. The Equinox 700 is equipped with a 3-piece carbon-fiber collapsible shaft system and advanced audio controls, along with a range of loaded features such as the Control Pod Flashlight and Handgrip Vibration.
This package Includes:
This bundle also includes:
Click the dropdowns below for exclusive High Plains key features, additional search coils, specifications, and downloads.
Minelab Equinox 700 Metal Detector
The best-selling treasure detector of all time, the Minelab Equinox series, just got better. The EQUINOX 700, driven by Minelab’s proven ground-breaking Multi-IQ technology, boasts an impressive 119 High Resolution Target ID system, superior target separation, and is fully waterproof to 5 m (16 ft.) with IP68 rating. With upgrades like its 3-piece carbon-fiber collapsible shaft system and advanced audio controls, plus fully-loaded features including Control Pod Flashlight and Handgrip Vibration there’s never been a better time to join the Minelab EQUINOX revolution.
THE MULTI-IQ ADVANTAGE
Why Minelab Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Nothing goes undiscovered and no terrain is off limits. Silver, relics or jewellery. Park, field, or beach. Unearth the power of EQUINOX powered by Multi-IQ.
WATERPROOF
With IP68 waterproof capability to 5 m (16 ft), take EQUINOX anywhere and own the ground beneath your feet.
TARGET SEPARATION
Recovery Speed and Iron Bias controls how your detector responds to multiple signals: from minimising your chances of digging iron to sniffing out gold and treasures hiding within the trashiest ground and everything in between.
LIGHT AND COMPACT
Comprising lightweight 3-piece carbon-fibre shafts, EQUINOX 700 weighs only 1.2 kg (2.8 lb) and packs down to a mere 61 cm (24 in) — throw it in your backpack, and you’re all set.
SUPREME ALL-TERRAIN DETECTING
Whether you’re swinging in the forest or snorkelling at the beach, EQUINOX 700® finds treasure that other detectors miss.
ADVANCED AUDIO CONTROL
With multiple tone audio options, the sound of treasure has never been clearer — EQUINOX’s superior audio means you’ll not only ‘hear’ if a target is trash or treasure but you’ll also be able to gauge its size and depth simply by listening.
EXTREME PRECISION
The EQUINOX Multi-IQ engine delivers Stable IDs for even the deepest targets. Depend on solid, stable information to tell you whether to dig in or move on — when
4 SINGLE FREQUENCY OPTIONS
For those with a specific goal in mind, EQUINOX® delivers total control and the power to choose from four single frequencies: 4/5/10/15 kHz.
LIGHTING AND VIBRATION
The daylight may have ended, but that doesn’t mean your hunt has to — with Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration you can power on long after the sun has gone.
LOUD AND CLEAR AUDIO
Enjoy the crystal-clear audio with lightning-fast Low Latency Wireless Headphones and In-Built Speaker (Included), or Wired Headphones and Waterproof Headphones (Accessories).
Search Modes: Park, Field, Beach
All-Metal Shortcut: Yes
Custom Search Profiles: 6
User Profile Button: No
Operating Frequencies: (kHz) Multi, 4, 5, 10, 15
Noise Cancel Auto: (19 Channels)
Ground Balance: Auto, Manual, Tracking
Sensitivity: 1 to 25
Target Volume: 0 to 25
Threshold Level: 0 to 25
Threshold Pitch: Fixed
Target Identification (TID): 119 segment notch discrimination: Ferrous: -19 to 0 I Non-ferrous: 1 to 99
Target Tones: 1,2, 5, All Tones (At), Depth (dP)
Tone Break: Ferrous (T1)
Tone Pitch: Tone 1 adjustable: 0 to 25
Tone Volume: Tone 1 adjustable: 0 to 25
Recovery Speed: 1 to 3
Iron Bias: 0 to 3
Depth Indicator: 5 Levels
Discrimination Segments: 119 Segments
Pinpoint Mode: Yes
Wireless Audio: Yes
Length (approx.): Collapsed: 61 cm (24 in) - Extended: 144 cm (56.7 in)
Weight: 1.27 kg (2.8 lbs) Display
Monochrome LCD Display and Keypad Backlight (red): Off, High, Low
Flashlight: On, Off
Vibration: On, Off with separate Ferrous Control
Supplied Coil: EQX11 11" Double-D coil with skid plate
Audio Output: In-built loudspeaker, Wired 3.5 mm (1/8") headphones, Wireless headphones
Supplied Headphones: Minelab ML 85 Low Latency wireless headphones
Battery: 3.7V/5100 mAh Internal Lithium-lon battery
Additional Included Accessories: Getting Started Guide, Screen Protector (English), Charging Cable
Waterproof: 5m (16 ft) IP68
Operating Temperature Range: -10 to +40 degrees celcius (+14 to +104 degrees fahrenheit)
Storage Temperature Range: -20 to +70 degrees celcius (-40 to +158 degrees fahrenheit)
Key Technologies: Multi-IQ
