Minelab Equinox 700 Metal Detector with Pro-Find 40 Pinpointer and 6" Coil

SKU: 3720-0005-PF40-6coil

Price: $1,123

Taxes and shipping calculated at checkout

Quantity

Frequently Bought Together

Product Description

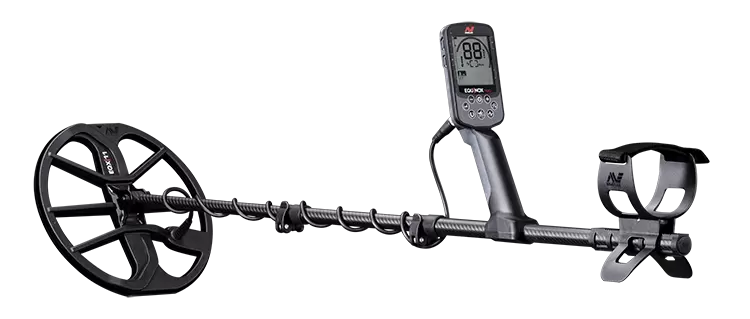

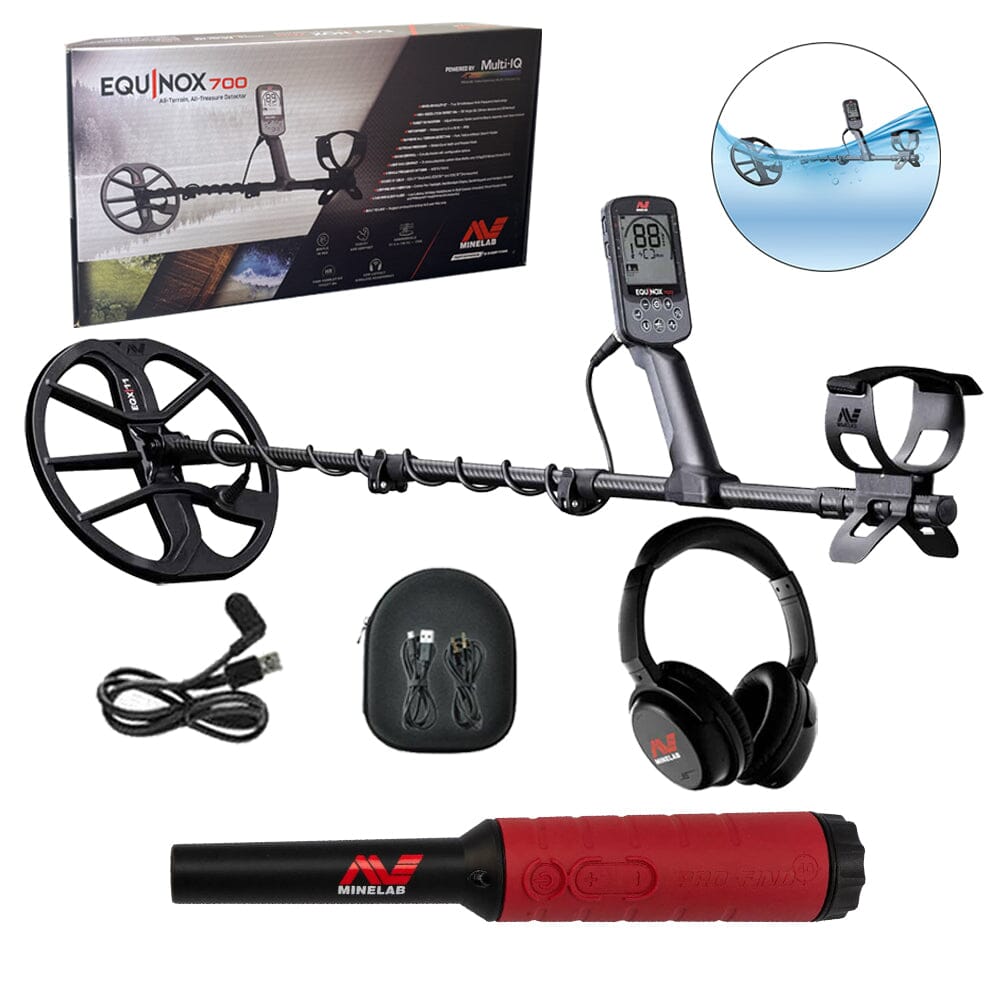

Minelab EQUINOX 700 Metal Detector Package with PRO-FIND 40 Pinpointer and 6" Search Coil

Take on parks, fields, beaches, rivers, and underwater sites with this versatile Minelab EQUINOX 700 metal detector package. It combines the waterproof EQUINOX 700 with its standard 11-inch Double-D search coil, an additional 6-inch Double-D coil for tight spaces and trash-heavy sites, and a waterproof PRO-FIND 40 pinpointer for fast, precise target recovery.

Powered by Minelab’s Multi-IQ simultaneous multi-frequency technology, the EQUINOX 700 delivers stable performance across changing ground conditions while providing accurate target identification from -19 to 99. The detector and both search coils are waterproof to 16 feet, making this package ready for land, beach, freshwater, and underwater treasure hunting.

Package Highlights

Minelab EQUINOX 700 Multi-IQ metal detector
Standard EQX 11-inch Double-D search coil
Additional EQX 06 6-inch Double-D search coil
Minelab PRO-FIND 40 waterproof pinpointer
ML 85 low-latency wireless headphones
Complete detector and target-recovery package
Waterproof detector and coils rated to 16 feet
Three-year warranty on the detector control box and coils

Multi-IQ Simultaneous Multi-Frequency Technology

Minelab Multi-IQ technology transmits multiple frequencies simultaneously, providing dependable target detection across a wide variety of soil and beach conditions. It offers the versatility to search for coins, jewelry, and relics without constantly changing frequencies as the terrain changes.

Park, Field, and Beach Search Modes

The EQUINOX 700 includes optimized search profiles for different detecting environments:

Park 1 and Park 2
Field 1 and Field 2
Beach 1 and Beach 2
All Metal
Custom user search profile
Pinpoint Mode

Each profile can be adjusted to match the site, target type, and detectorist’s preferences.

Expanded -19 to 99 Target Identification

A high-resolution 119-segment discrimination system provides target identification from -19 to 99. Ferrous targets register from -19 to 0, while non-ferrous targets register from 1 to 99, helping you make more informed digging decisions.

Two Search Coils for Greater Versatility

EQX 11" Double-D Search Coil

The standard 11-inch round Double-D coil provides an excellent balance of depth, sensitivity, target separation, and ground coverage. It is well suited for general-purpose detecting in parks, fields, beaches, and open terrain.

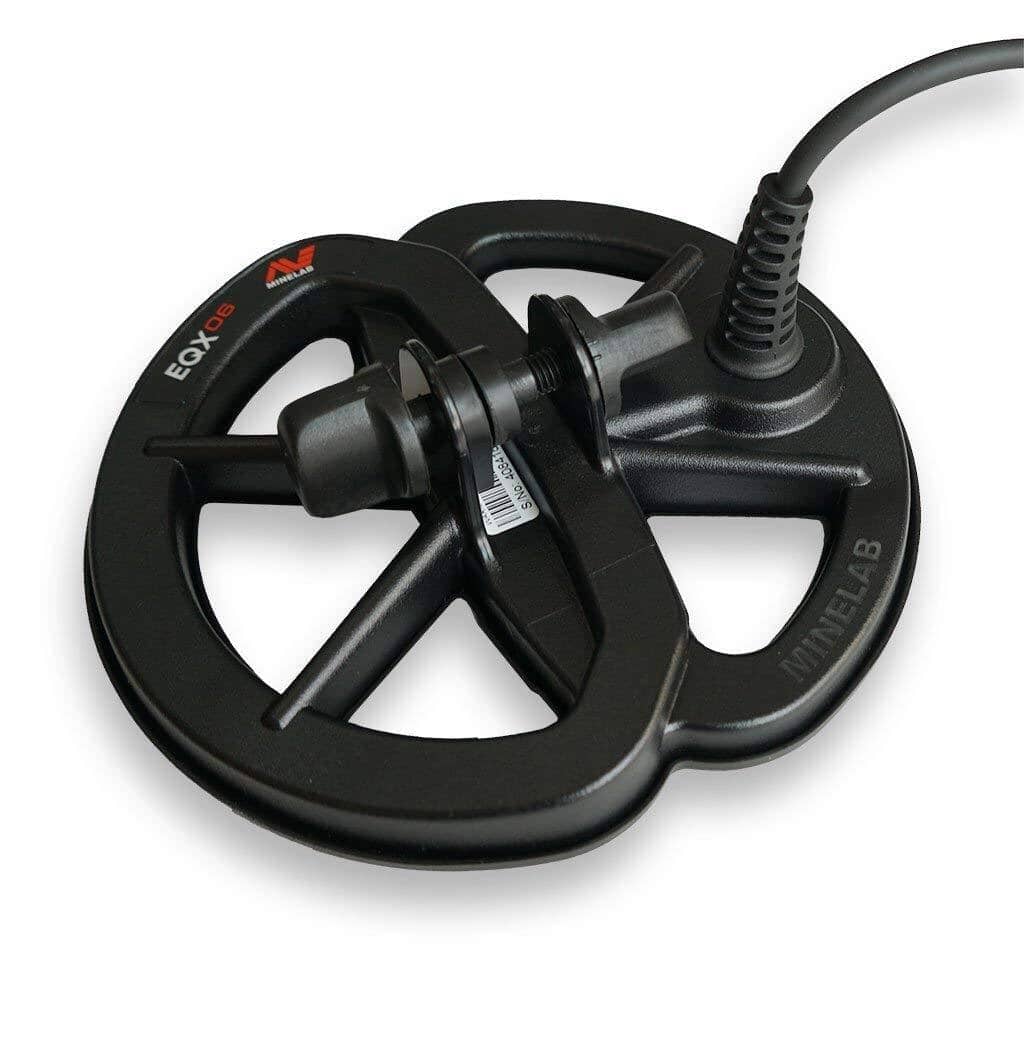

EQX 06 6" Double-D Search Coil

The additional 6-inch round Double-D coil is designed for detecting in confined spaces and areas with closely spaced targets. Its compact size offers precise separation around playground equipment, foundations, rocks, brush, stubble, and iron-contaminated sites.

Fully Waterproof Design

The EQUINOX 700 detector and compatible search coils are waterproof to 16 feet and carry an IP68 rating. This allows you to search confidently in rain, surf, rivers, lakes, and submerged environments.

The included ML 85 wireless headphones are not waterproof and should not be submerged. Waterproof wired headphones are required for underwater audio.

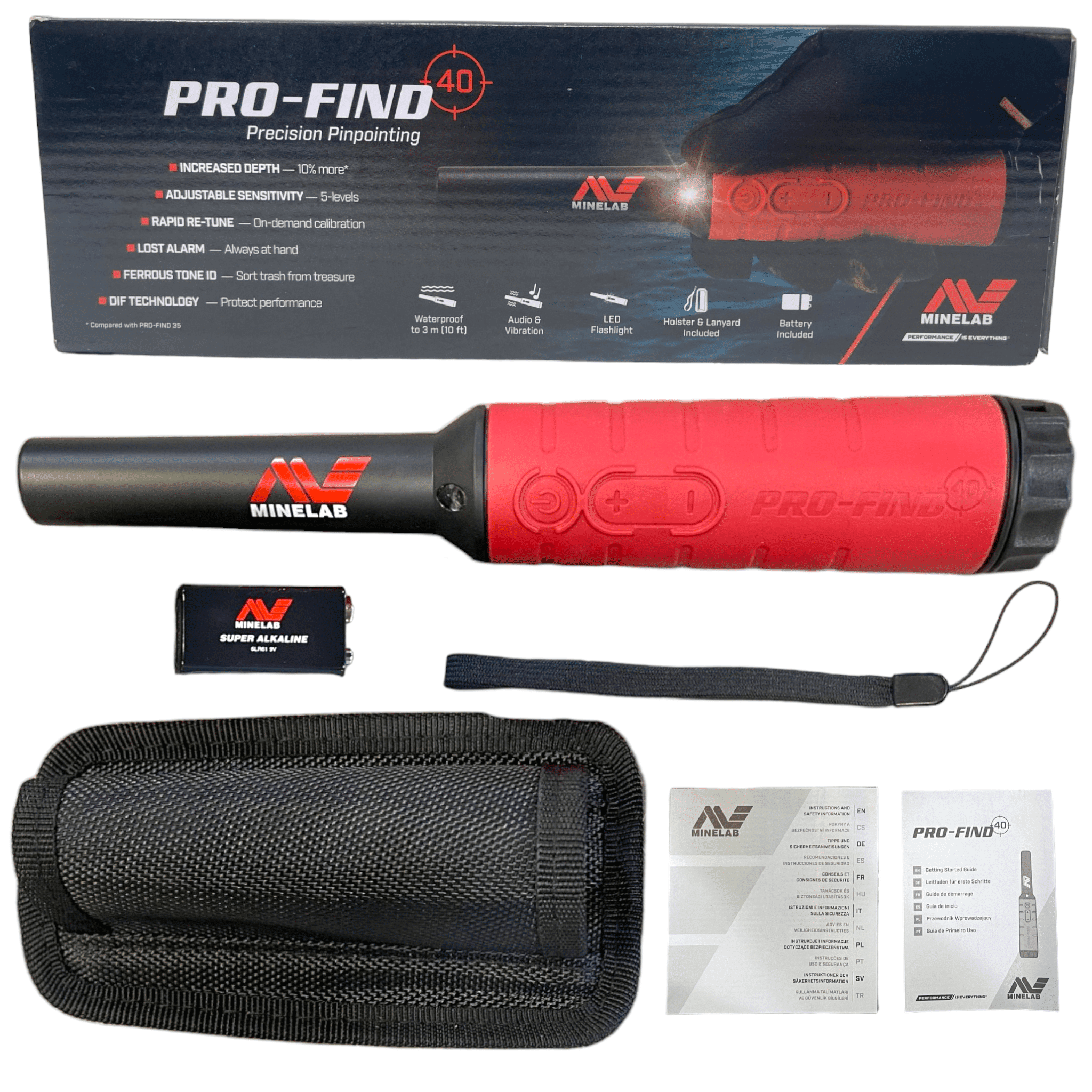

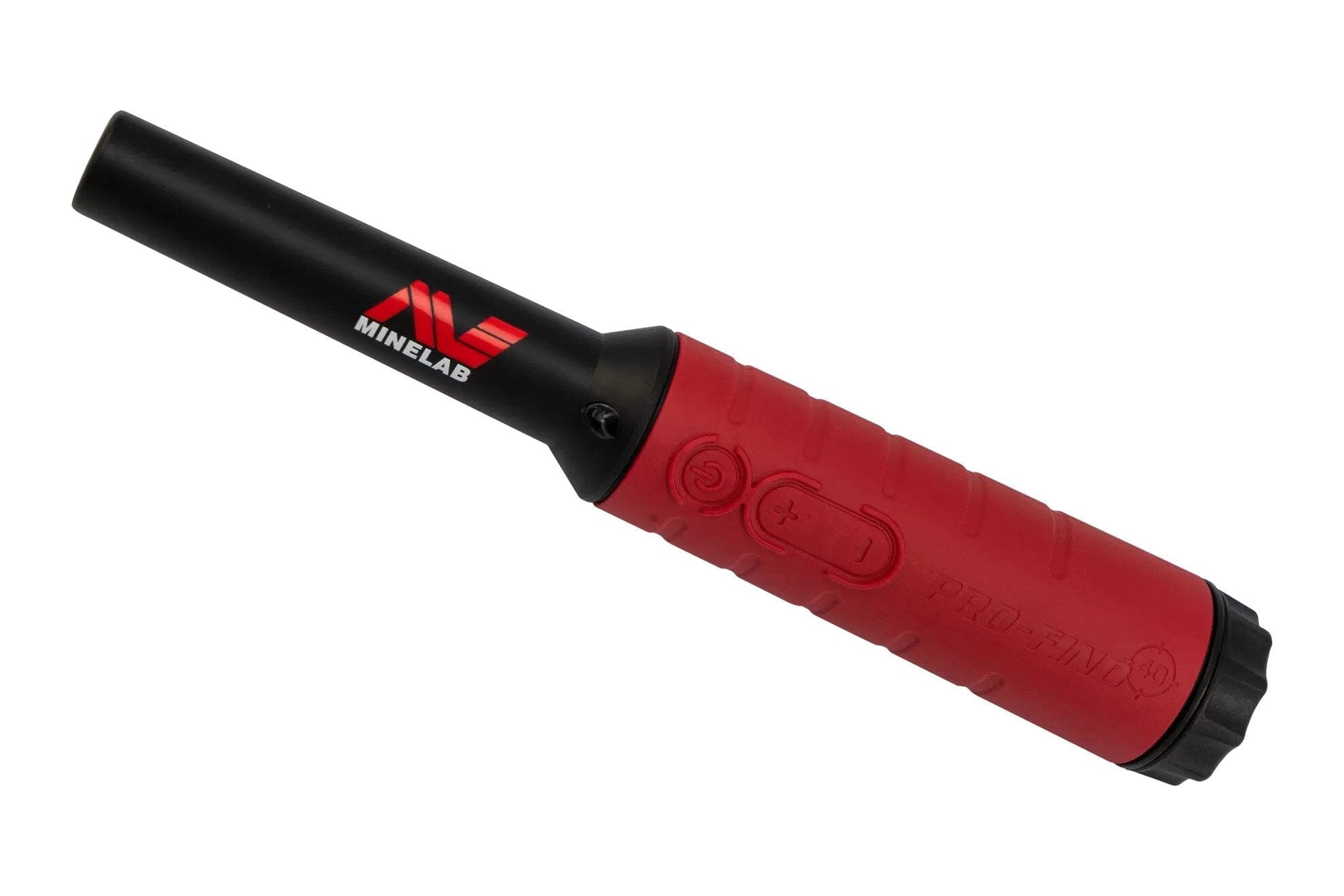

Minelab PRO-FIND 40 Pinpointer

The PRO-FIND 40 helps locate targets quickly after digging begins. Its five adjustable sensitivity levels, audio and vibration feedback, LED flashlight, and Rapid Re-tune function make it easier to recover objects from holes, plugs, loose soil, sand, and shallow water.

PRO-FIND 40 features include:

Waterproof to 10 feet
Five adjustable sensitivity levels
Audio and vibration target indication
Ferrous Tone ID
Built-in LED flashlight
Rapid Re-tune
Detector Interference Free technology
Lost-alarm feature
Up to 20 hours of battery life
High-visibility construction
Belt holster and lanyard included

Additional EQUINOX 700 Features

Lightweight carbon-fiber shaft system
Compact collapsible design
Red backlit LCD and keypad
Built-in control-box flashlight
Ferrous target vibration
Automatic and continuous automatic Noise Cancel
Five-level depth indicator
Adjustable Iron Bias
Adjustable ferrous volume
1, 2, 5, All Tones, and Depth audio options
Built-in speaker
1/8-inch wired headphone connection
Low-latency wireless audio
Rechargeable internal lithium-ion battery
Upgradeable detector software

EQUINOX 700 Specifications

Brand: Minelab
Model: EQUINOX 700
Detection technology: Multi-IQ simultaneous multi-frequency
Search profiles: Park 1 and 2, Field 1 and 2, Beach 1 and 2
All Metal Mode: Yes
Custom user profile: Yes
Pinpoint Mode: Yes
Sensitivity range: 1–28
Target ID range: -19 to 99
Discrimination segments: 119
Ferrous target range: -19 to 0
Non-ferrous target range: 1 to 99
Target tones: 1, 2, 5, All Tones, and Depth
Volume range: 0–25
Ferrous volume range: 0–25
Iron Bias range: 0–3
Target depth indicator: Five levels
Standard search coil: EQX 11-inch round Double-D
Additional search coil: EQX 06 6-inch round Double-D
Waterproof rating: IP68, up to 16 feet (5 meters)
Display: Monochrome LCD with red backlight
Keypad backlight: Red
Flashlight: Yes
Ferrous vibration: On or off
Audio outputs: Built-in speaker, 1/8-inch wired headphones, and low-latency wireless audio
Battery: Internal 3.7-volt, 5100 mAh rechargeable lithium-ion
Detector weight with standard coil: 2.8 pounds (1.27 kg)
Extended length: 56.7 inches (144 cm)
Collapsed length: 24 inches (61 cm)
Operating temperature: 14°F to 104°F (-10°C to 40°C)
Manufacturer warranty: Three years on the control box and coils

PRO-FIND 40 Specifications

Model: Minelab PRO-FIND 40
SKU: 3226-0005
Detection technology: VLF with DIF
Sensitivity: Five adjustable levels
Target indication: Audio and vibration
Ferrous identification: Dual-tone Ferrous Tone ID
Waterproof rating: Up to 10 feet (3 meters)
Length: 9.7 inches (24.7 cm)
Weight without battery: 6.6 ounces (188 g)
Weight with battery: 8.3 ounces (234 g)
Battery: One 9-volt PP3 battery
Battery life: Up to 20 hours
Flashlight: Built-in LED
Manufacturer warranty: 24 months

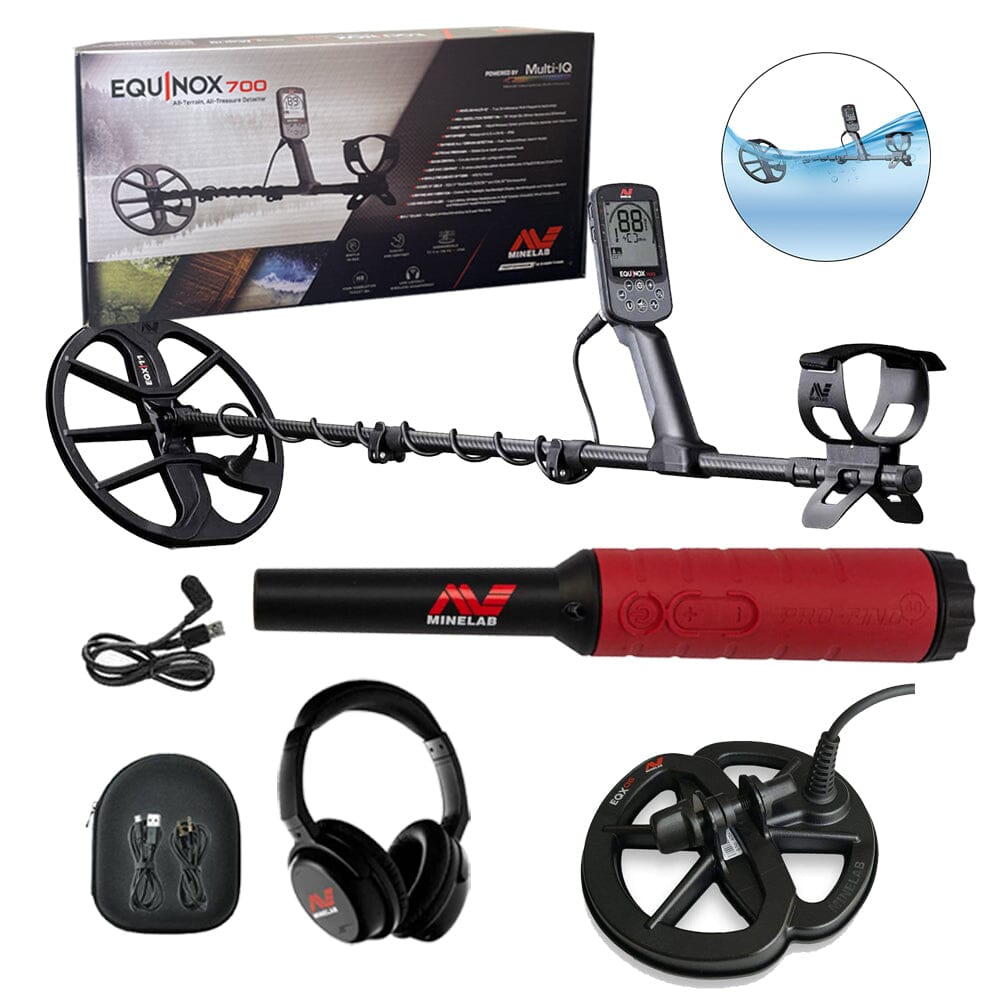

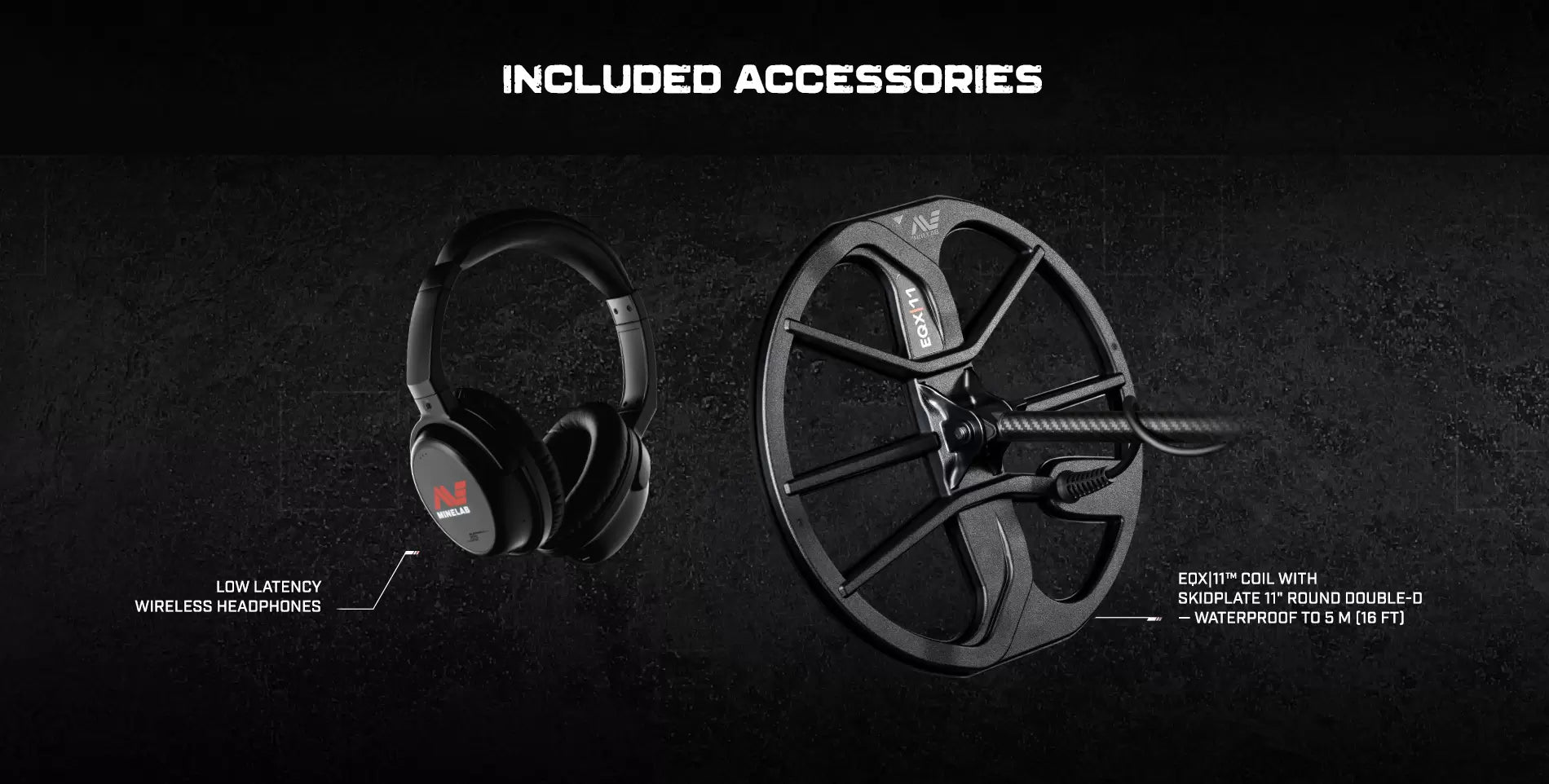

Package Includes

Minelab EQUINOX 700 metal detector
EQX 11-inch round Double-D search coil with skidplate
EQX 06 6-inch round Double-D search coil with skidplate
Minelab PRO-FIND 40 waterproof pinpointer
PRO-FIND 40 belt holster
PRO-FIND 40 lanyard
9-volt pinpointer battery
ML 85 low-latency wireless headphones
Magnetic USB detector charging cable
Multi-language screen protectors
Search-coil mounting hardware
Manufacturer documentation

Ideal For

Coin and jewelry hunting
Relic and old-home-site detecting
Trash-heavy parks and picnic areas
Beaches and saltwater environments
Rivers, lakes, and shallow-water detecting
Playground and foundation searches
Tight spaces and areas with heavy vegetation
Intermediate and advanced detectorists
Anyone wanting a complete detector, small-coil, and pinpointer package

Important Waterproof Notice

The EQUINOX 700, EQX 11 coil, EQX 06 coil, and PRO-FIND 40 pinpointer are designed for submerged use within their specified depth limits. The included ML 85 wireless headphones are not waterproof and must remain dry. Use compatible Minelab waterproof wired headphones when detecting underwater.

Introducing the enhanced Minelab Equinox 700 Metal Detector – Powered by Minelab's groundbreaking Multi-IQ technology, this detector showcases a remarkable 119 High Resolution Target ID system, unmatched target separation, and boasts a waterproof design, rated to withstand depths of up to 5 meters (16 feet) with an IP68 rating. The Equinox 700 is equipped with a 3-piece carbon-fiber collapsible shaft system and advanced audio controls, along with a range of loaded features such as the Control Pod Flashlight and Handgrip Vibration.

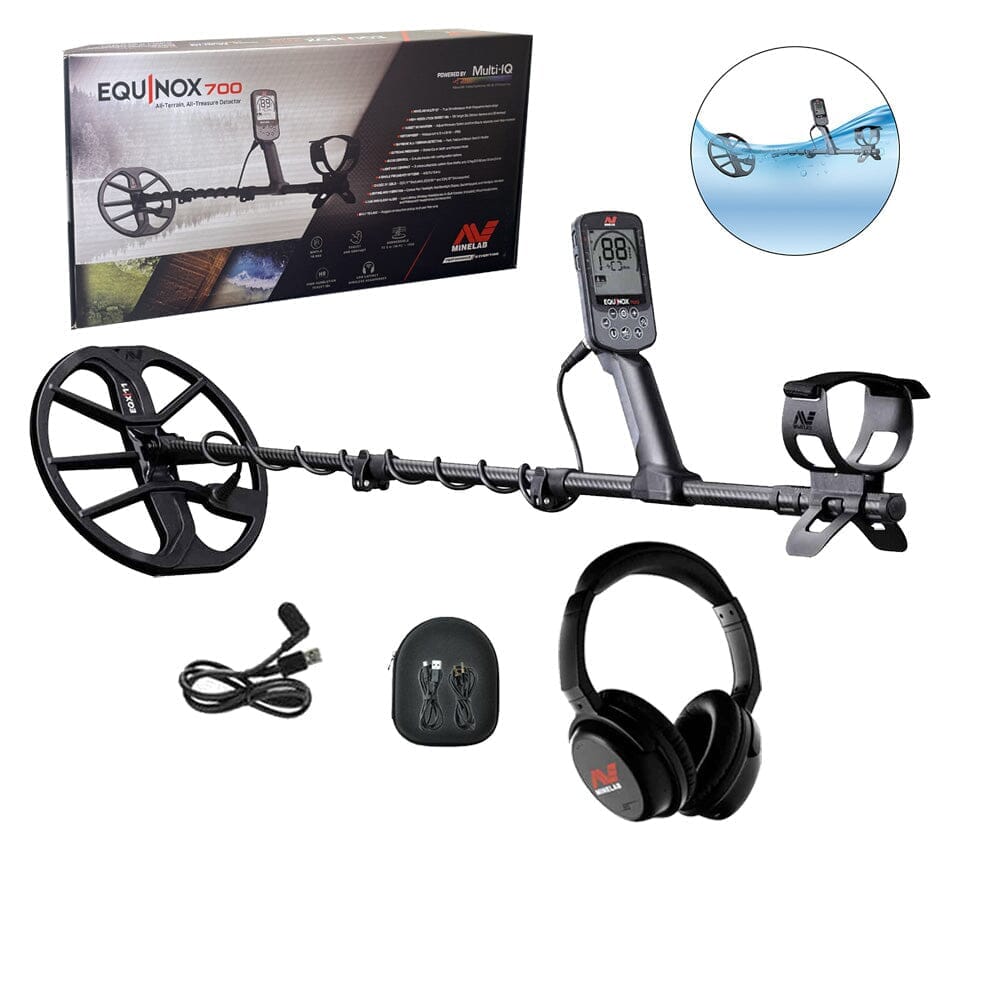

This package Includes:

Minelab Equinox 700 Metal Detector
EQX11 11" DD coil with skid plate,
ML 85 Low Latency Wireless Headphones,
Charging Cable
Screen Protector
Getting Started Guide

This bundle also includes:

Minelab Equinox 700 Metal Detector
Minelab Pro-Find 40 Pinpointer
Equinox 6 Inch Coil

Click the dropdowns below for exclusive High Plains key features, additional search coils, specifications, and downloads.

Click down arrow next to titles below for complete information

Overview

Minelab Equinox 700 Metal Detector

The best-selling treasure detector of all time, the Minelab Equinox series, just got better. The EQUINOX 700, driven by Minelab’s proven ground-breaking Multi-IQ technology, boasts an impressive 119 High Resolution Target ID system, superior target separation, and is fully waterproof to 5 m (16 ft.) with IP68 rating. With upgrades like its 3-piece carbon-fiber collapsible shaft system and advanced audio controls, plus fully-loaded features including Control Pod Flashlight and Handgrip Vibration there’s never been a better time to join the Minelab EQUINOX revolution.

Key Features

THE MULTI-IQ ADVANTAGE

Why Minelab Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Nothing goes undiscovered and no terrain is off limits. Silver, relics or jewellery. Park, field, or beach. Unearth the power of EQUINOX powered by Multi-IQ.

WATERPROOF

With IP68 waterproof capability to 5 m (16 ft), take EQUINOX anywhere and own the ground beneath your feet.

TARGET SEPARATION

Recovery Speed and Iron Bias controls how your detector responds to multiple signals: from minimising your chances of digging iron to sniffing out gold and treasures hiding within the trashiest ground and everything in between.

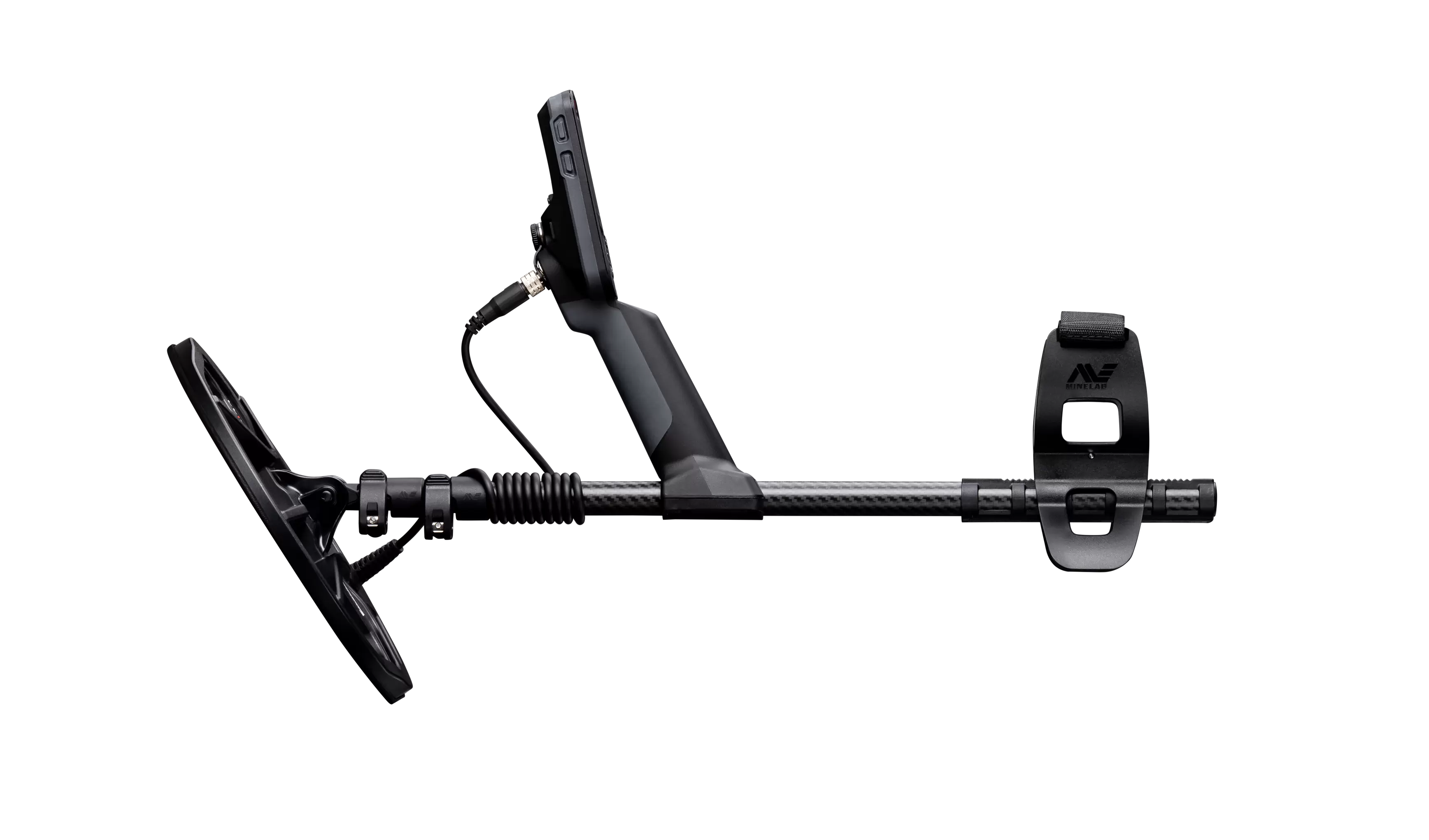

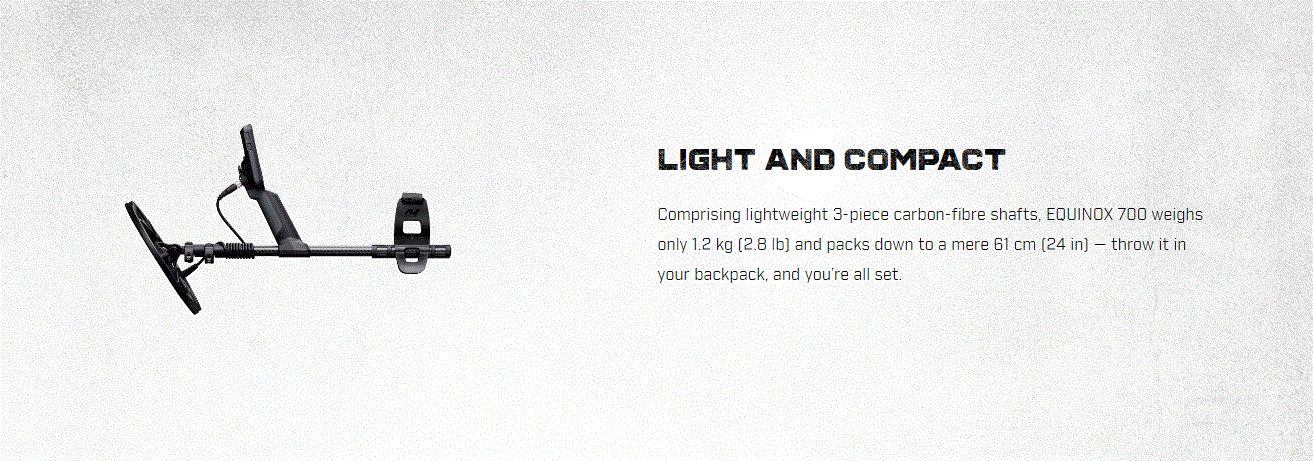

LIGHT AND COMPACT

Comprising lightweight 3-piece carbon-fibre shafts, EQUINOX 700 weighs only 1.2 kg (2.8 lb) and packs down to a mere 61 cm (24 in) — throw it in your backpack, and you’re all set.

SUPREME ALL-TERRAIN DETECTING

Whether you’re swinging in the forest or snorkelling at the beach, EQUINOX 700® finds treasure that other detectors miss.

ADVANCED AUDIO CONTROL

With multiple tone audio options, the sound of treasure has never been clearer — EQUINOX’s superior audio means you’ll not only ‘hear’ if a target is trash or treasure but you’ll also be able to gauge its size and depth simply by listening.

EXTREME PRECISION

The EQUINOX Multi-IQ engine delivers Stable IDs for even the deepest targets. Depend on solid, stable information to tell you whether to dig in or move on — when

4 SINGLE FREQUENCY OPTIONS

For those with a specific goal in mind, EQUINOX® delivers total control and the power to choose from four single frequencies: 4/5/10/15 kHz.

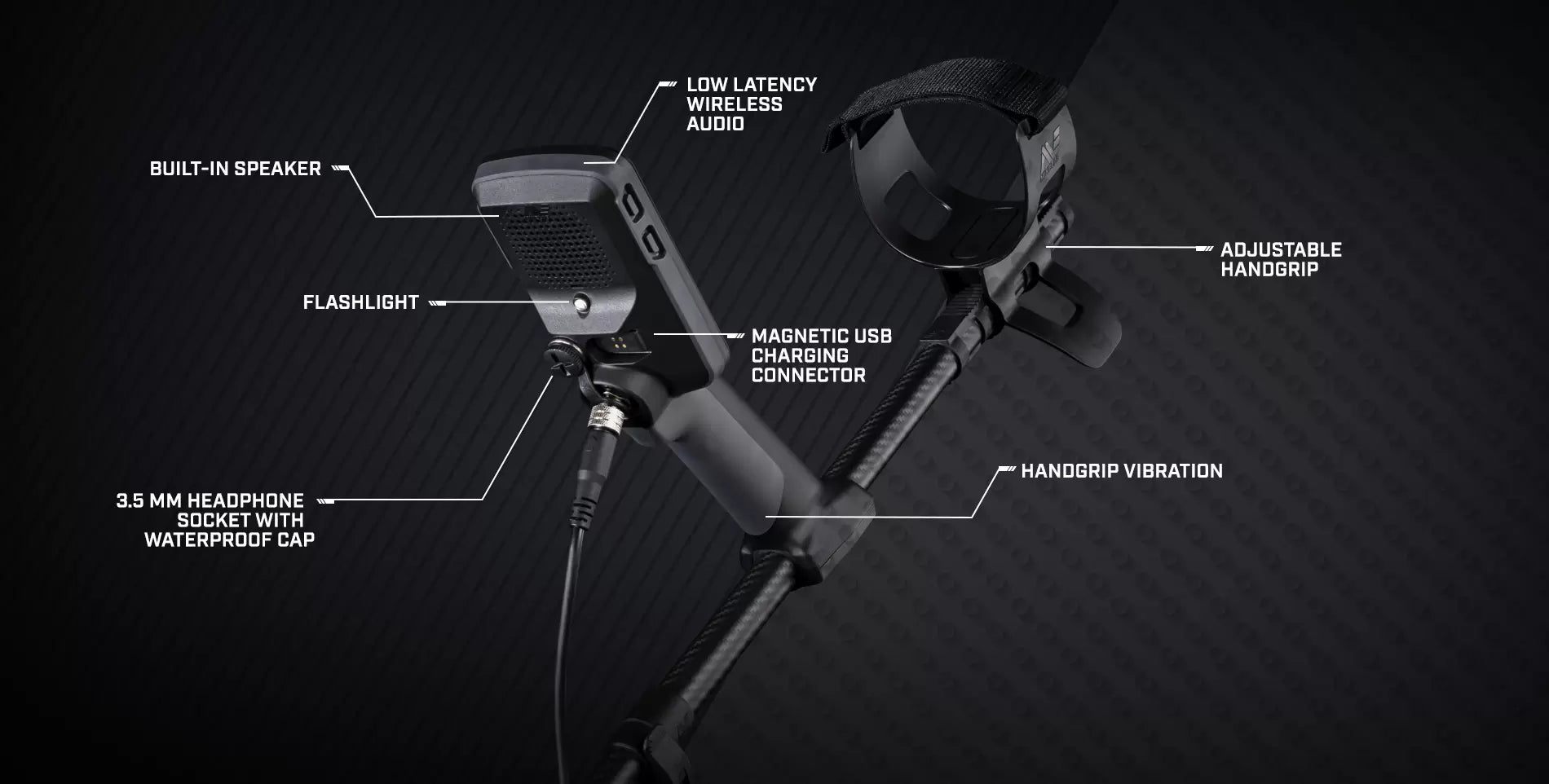

LIGHTING AND VIBRATION

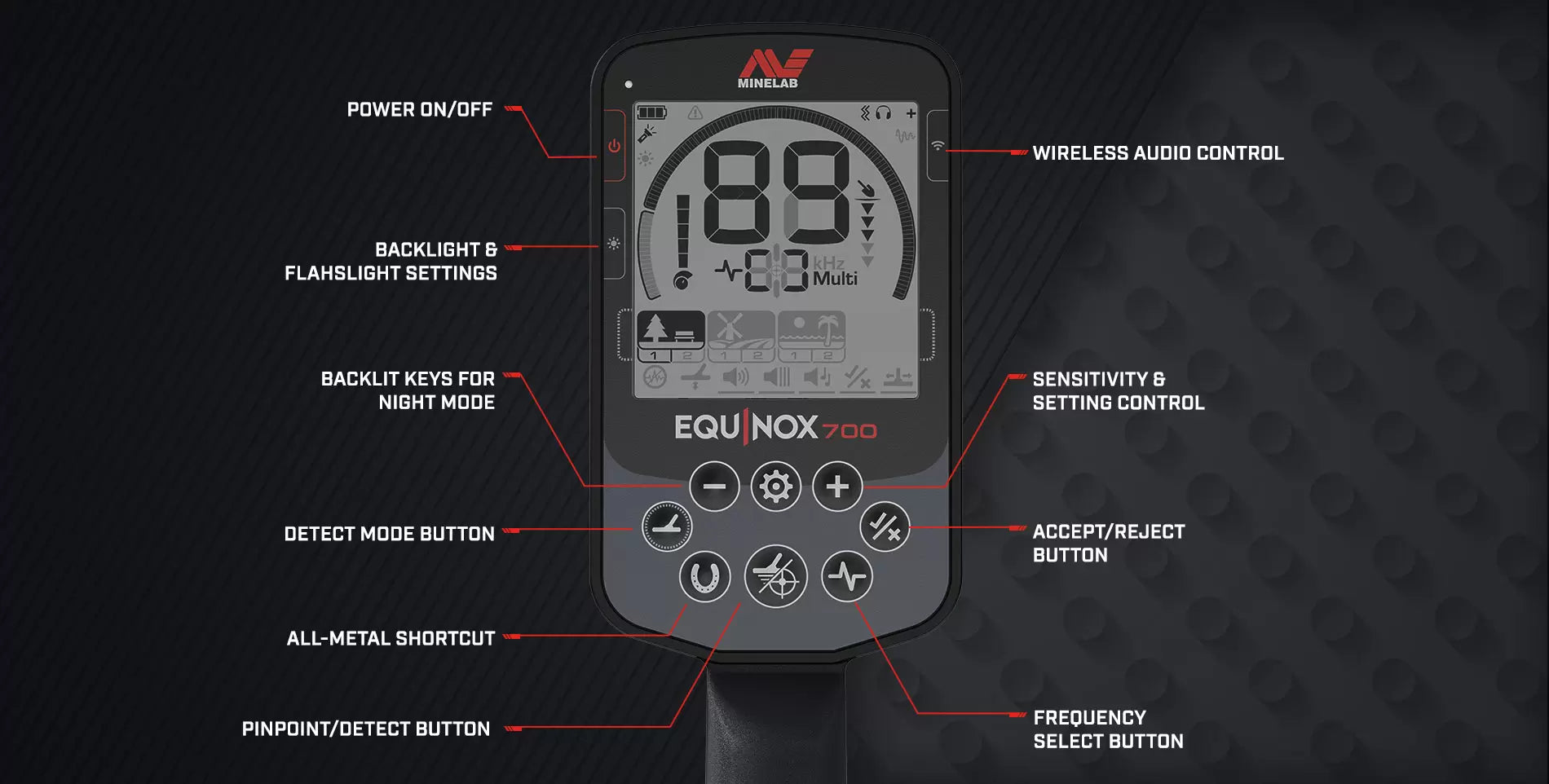

The daylight may have ended, but that doesn’t mean your hunt has to — with Control Pod Flashlight, Red Backlight Display, Backlit Keypad, and Handgrip Vibration you can power on long after the sun has gone.

LOUD AND CLEAR AUDIO

Enjoy the crystal-clear audio with lightning-fast Low Latency Wireless Headphones and In-Built Speaker (Included), or Wired Headphones and Waterproof Headphones (Accessories).

Specifications

Search Modes: Park, Field, Beach
All-Metal Shortcut: Yes
Custom Search Profiles: 6
User Profile Button: No
Operating Frequencies: (kHz) Multi, 4, 5, 10, 15
Noise Cancel Auto: (19 Channels)
Ground Balance: Auto, Manual, Tracking
Sensitivity: 1 to 25
Target Volume: 0 to 25
Threshold Level: 0 to 25
Threshold Pitch: Fixed
Target Identification (TID): 119 segment notch discrimination: Ferrous: -19 to 0 I Non-ferrous: 1 to 99
Target Tones: 1,2, 5, All Tones (At), Depth (dP)
Tone Break: Ferrous (T1)
Tone Pitch: Tone 1 adjustable: 0 to 25
Tone Volume: Tone 1 adjustable: 0 to 25
Recovery Speed: 1 to 3
Iron Bias: 0 to 3
Depth Indicator: 5 Levels
Discrimination Segments: 119 Segments
Pinpoint Mode: Yes
Wireless Audio: Yes
Length (approx.): Collapsed: 61 cm (24 in) - Extended: 144 cm (56.7 in)
Weight: 1.27 kg (2.8 lbs) Display
Monochrome LCD Display and Keypad Backlight (red): Off, High, Low
Flashlight: On, Off
Vibration: On, Off with separate Ferrous Control
Supplied Coil: EQX11 11" Double-D coil with skid plate
Audio Output: In-built loudspeaker, Wired 3.5 mm (1/8") headphones, Wireless headphones
Supplied Headphones: Minelab ML 85 Low Latency wireless headphones
Battery: 3.7V/5100 mAh Internal Lithium-lon battery
Additional Included Accessories: Getting Started Guide, Screen Protector (English), Charging Cable
Waterproof: 5m (16 ft) IP68
Operating Temperature Range: -10 to +40 degrees celcius (+14 to +104 degrees fahrenheit)
Storage Temperature Range: -20 to +70 degrees celcius (-40 to +158 degrees fahrenheit)
Key Technologies: Multi-IQ
