This item is anchored to a table or workbench. It allows the user to collect magnetite in a Jar as working material is continuously fed through the system, leaving other minerals behind.
Similar to the Magnetite Mover, the Magnetite Collector creates a rotational force within the magnetite, causing it to spin, roll, and flow like a "magnetic river."

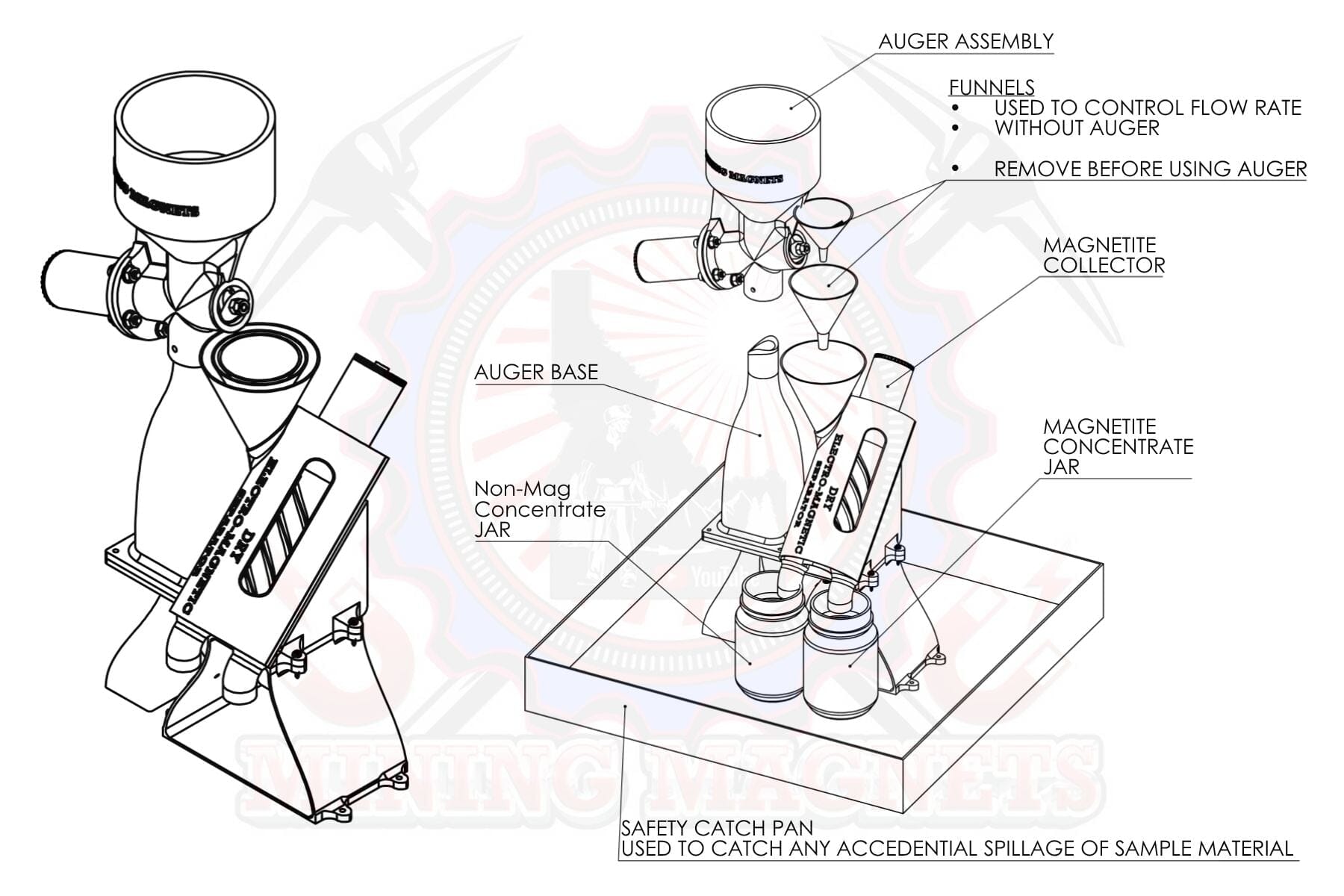

Unlike the Magnetite Mover, the Magnetite collector is intended for continuous throughput. Dry Classified (sub-30 mesh) working material is fed into the top hopper, where the adjustable speed "auger" funnels a consistent flow of material into a pulsing magnetic field. In this field, the magnetite is collected and deposited into a jar, while the non-magnetite material is deposited into a separate jar.
Note this device is not recommended for Hematite or any other "Black Sands".
Technical Specifications:
-Power Adaptor: 120-240AC input 9-12 VDC Output
-Magnet Strength: (Magnetite)
-Magnetite Particle size 0-1/4" (0 represents infinitely small)
-Magnetite must be dry
-4" Wide 3" Diameter Pulsing Field generated
-Feed rate: 1 gallon/hr at 80% magnetite
****NON-Removable Magnet****
This item generates a large, pulsing magnetic field that can interfere with medical devices like pacemakers. When handling dry, dusty materials, ventilation should be carefully prepared.
