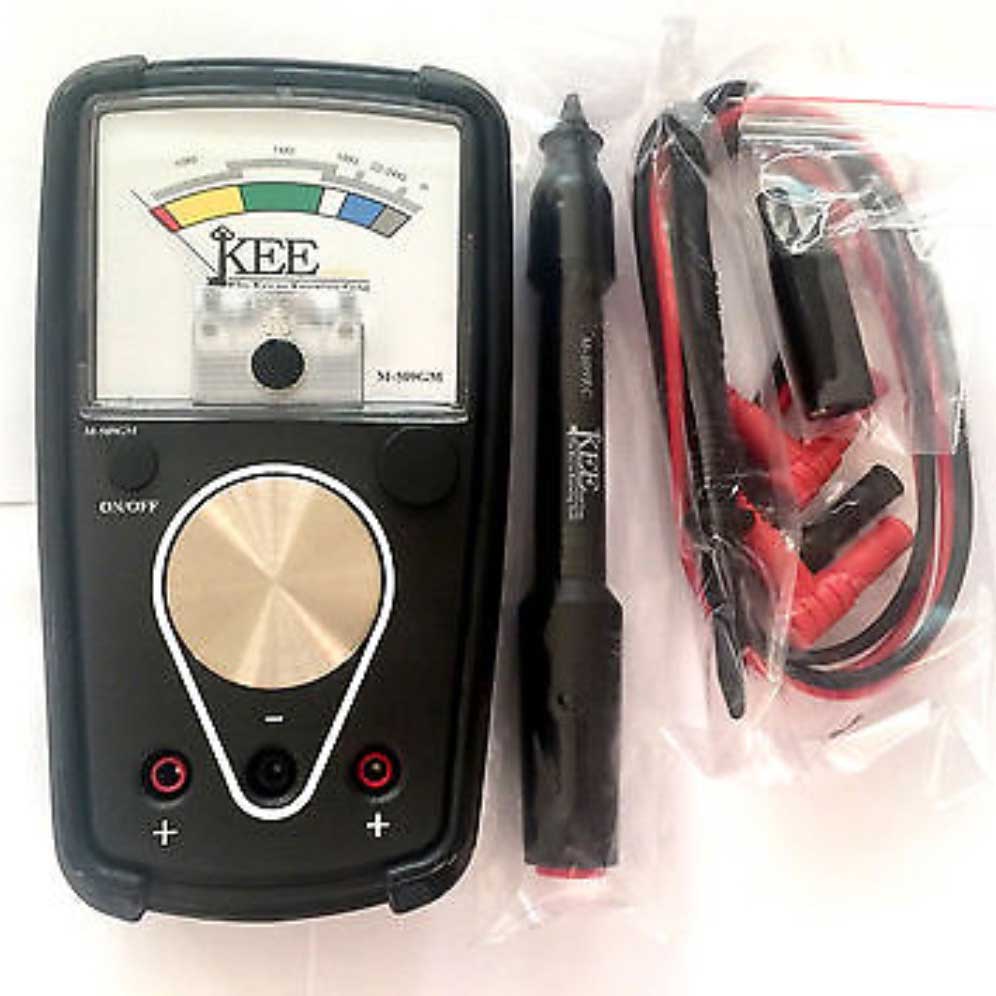

Kee Electronic Gold Karat and Platinum Testing Machine
kee gold tester and platinum tester electronic
Kee Electronic Gold Karat and Platinum Testing Machine

Kee Electronic Gold Karat and Platinum Testing Machine

SKU: KGT
Sale price
$379
Regular price
$415
You save
$36 (9%)
Taxes and shipping calculated at checkout
 More payment options

Product Information

Kee Gold Analyzer

110% SATISFACTION GUARANTEED STRAIGHT FROM THE HARTZ

(These products are NON RETURNABLE to High Plains Prospectors due to the nature of people buying them, testing "gold" and sending back the unit.  Please inquire if you want to rent a gold analyzer.  Defects would need to go to the manufacturer.)

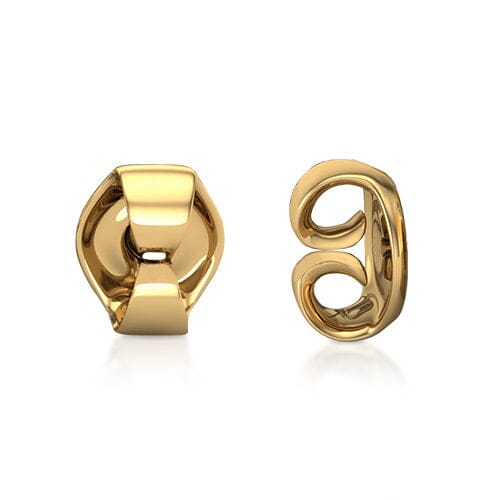

With 18KY Stuller Earring Back

24/7 SUPPORT!

Kee Gold Analyzer Instructions:

Always!
1) Turn Kee Gold Analyzer (KGA) off when not in use (battery will die)
2) Keep Cap snapped on Wand when not in use (Wand will dry out)

Basic Instructions:
1. Turn KGA on
2. Remove Cap from Wand
3. Calibrate KGA with known piece of 18K, set meter to center of white zone.
4. Test items
5. Replace Cap to Wand and Turn KGA off when done.

Better Calibrating Instructions:
1. With KGA off, adjust meter needle to bottom of red zone using the meter adjustment screw
2. Turn KGA on,
3. Calibrate Unit with known piece of 18K, set meter to center of white zone using large knob.
4. Meter needle should be within or beyond the grey zone when on, adjust with large knob on right of KGA and retest 18K
5. The meter needle should now have full range of the meter
6. If the meter will not calibrate at room temperature, change the battery.

Changing the battery:
1. Turn KGA off and remove testing wand and wires.
2. Remove protective rubber cover.
3. Remove two Phillips screws
4. Gently pull KGA apart
5. Replace the one AA Battery with a fresh one, reassemble

A revolutionary, affordable and user friendly gold/platinum purity analyzer. This meter is a quick and easy nondestructive way to test gold and platinum. Test gold alloys from 10K to 24K without having to push a color button. Uses no messy gels or chemicals. Easy to read analog meter movement allows each individual user, after calibration, to become very efficient and comfortable testing gold on his/her meter. The testing probe refill comes with a new cap and polishing tip and is easy to replace. This allows the user to get many years of service from one meter. Uses one AA battery. Calibrate with 18K.

SHR’s Top 5 KEE Testing Tips!

Calibrate your KEE Tester with a known piece of 18K YELLOW gold that does NOT have any special finish or plate on it, or you will need to gently clean the area you’re testing for calibration first. Place it down on the test plate. Lightly touch it with the uncapped, fiber tip pen probe, and adjust the calibration knob so that the needle falls in the center of the 18K range. Please keep the18KY calibration sample with your KEE Tester at all times.

“SNAP’ the pen probe cap tightly closed after testing the item or items. NOT DOING SO WILL DRY OUT THE FIBER TIP AND SUBSTANTIALLY DECREASE THE LIFE OF THE PEN PROBE. Replacement probes are regularly $65 USD.

Please confirm you meter needle resting settings are correct!  The needle should rest on or near the first black line when the unit is powered off. The needle should rest on or near the last black line when then unit is powered on.

Use only light pressure on the pen probe when testing. Excessive pressure will cause the fiber tip to distort, which can shorten the pen probe life.

With the pen cap still snapped tightly on the probe, USE THE PUMICE TO GENTLY CLEAN AN ENTRY POINT, OPENING, THIN AND/OR NARROW (SKINNY) AREA as both gold and non-gold can be plated with a finish on it that may mask its true karat.ON HEAVY PIECES, A FILE SHOULD BE USED TO CLEAN THE SMALL AREA FOR TESTING. REMEMBER, THE AREA THAT YOU CLEAN WILL FACE UP TOWARD YOU WHEN IT IS ON THE SILVER CONDUCTOR PLATE SO THAT THE PROBE TOUCHES THAT CLEANED AREA.

Always avoid Duracell as the Chinese copper top will not work properly with the upgraded firmware of your new 1.5V KEE.Use any other brand. The KEE only takes 1 AA battery.

Ask a Question

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Recommended for You

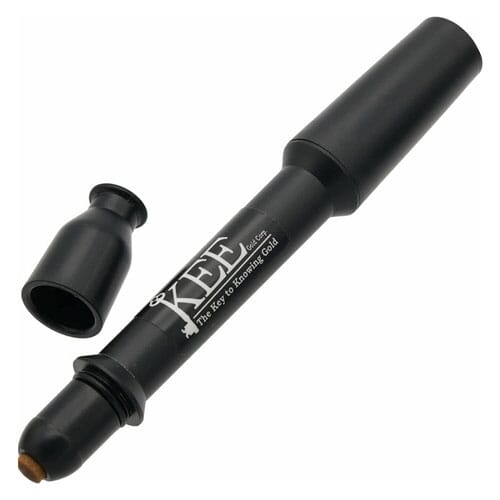

NEW Upgraded Replacement Pen Probe for Kee Gold Tester
Replacement Pen Prob for Kee precious metal tester

NEW Upgraded Replacement Pen Probe for Kee Gold Tester

Price
$59
Complete Precious Metal Testing Solution Kit with Storage Box, Acid Neutralizer for Gold, Platinum, Silver and Nickel Testing
20% off
Complete Precious Metal Testing Solution Kit with Storage Box, Gold Test Needle, Acid Neutralizer for Gold, Platinum, Silver and Nickel Testing
2

Complete Precious Metal Testing Solution Kit with Storage Box, Acid Neutralizer for Gold, Platinum, Silver and Nickel Testing

Sale price
$39.96
Regular price
$49.95

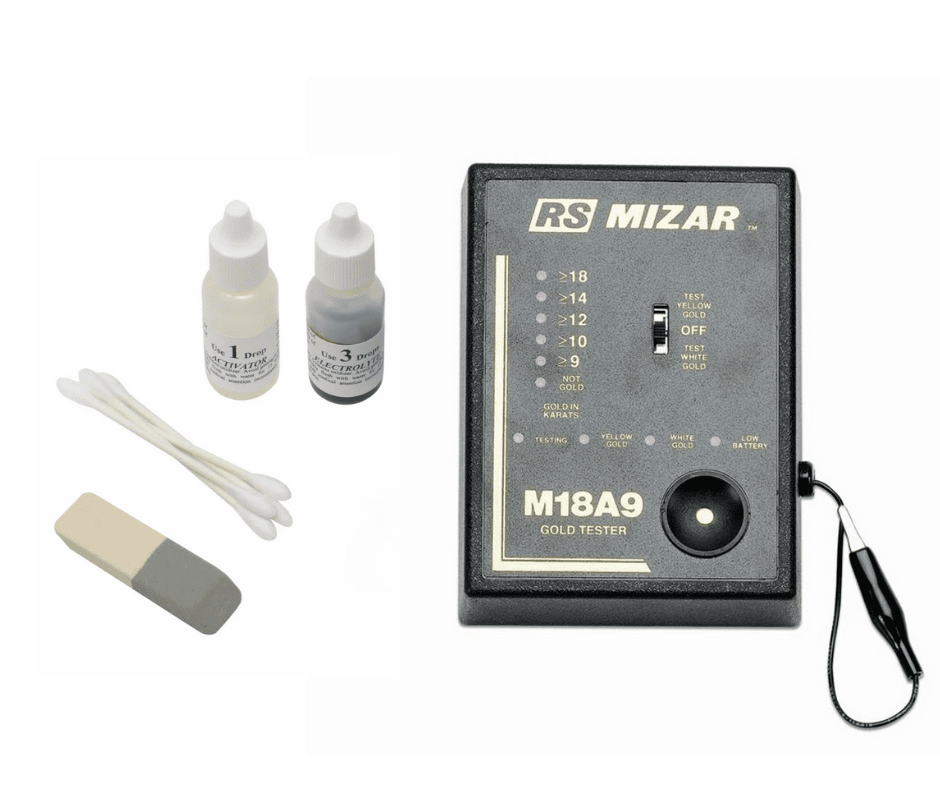

RS Mizar™ M1849 Professional Gold Karat Tester -9-18 Karat
