Minelab GPX 6000 Metal Detector with 11", 14", and GPX17 17" Inch Coil

Minelab GPX 6000 Gold Metal Detector with 11", 14" and 17" Coils

Search for gold of all sizes with the Minelab GPX 6000 three-coil package. This powerful gold detector combines GeoSense-PI technology with automatic ground balancing and three specialized Minelab search coils for working across a wide variety of terrain and soil conditions.

The package includes the sensitive GPX11 11-inch Monoloop coil, the salt- and EMI-capable GPX14 14-inch Double-D coil, and the large GPX17 17-inch elliptical Monoloop coil for covering more ground and reaching larger, deeper nuggets.

GeoSense-PI Gold-Detecting Technology

Minelab’s GeoSense-PI technology rapidly analyzes ground responses and gold signals, helping the GPX 6000 detect everything from small fragments to larger nuggets. The detector automatically adapts to changing soil conditions, allowing the operator to concentrate on listening for gold instead of continuously adjusting settings.

Three Minelab GPX Search Coils

GPX11 11-Inch Monoloop Coil

The round GPX11 is a versatile, highly sensitive coil for general gold prospecting. Its compact size is useful around rocks, vegetation, washes, and confined terrain while maintaining excellent sensitivity to small gold.

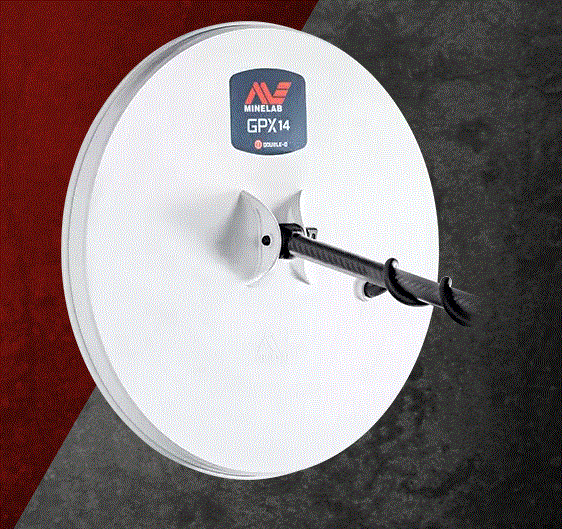

GPX14 14-Inch Double-D Coil

The round GPX14 Double-D coil is designed for difficult detecting environments. Its specialized operating modes help manage electromagnetic interference and conductive or salty ground that can challenge a conventional Monoloop coil.

Available Double-D modes include:

• EMI Cancel

• Conductive Ground Cancel

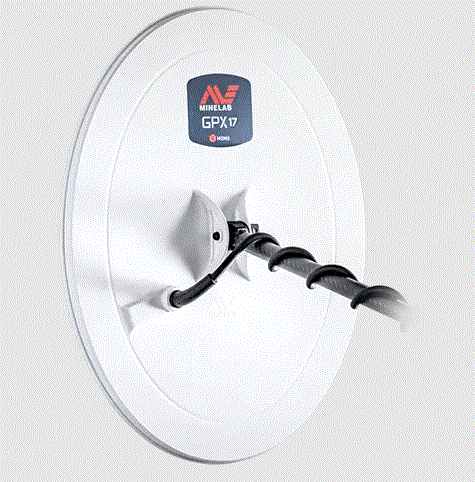

GPX17 17-Inch Elliptical Monoloop Coil

The large GPX17 provides increased ground coverage and strong performance on larger, deeper gold. Its 17-inch x 13-inch elliptical shape efficiently covers open areas while remaining narrow enough to maneuver through varied terrain.

Automatic Ground Balance

Automatic ground balancing continuously responds to changing mineralization as the coil moves across the terrain. This helps maintain a stable threshold while reducing the amount of manual adjustment required during a prospecting session.

Automatic and Manual Sensitivity

Choose automatic sensitivity for straightforward operation or use one of ten manual sensitivity levels for greater control. The GPX 6000 makes advanced pulse-induction gold detection accessible without sacrificing performance.

Lightweight Carbon-Fiber Design

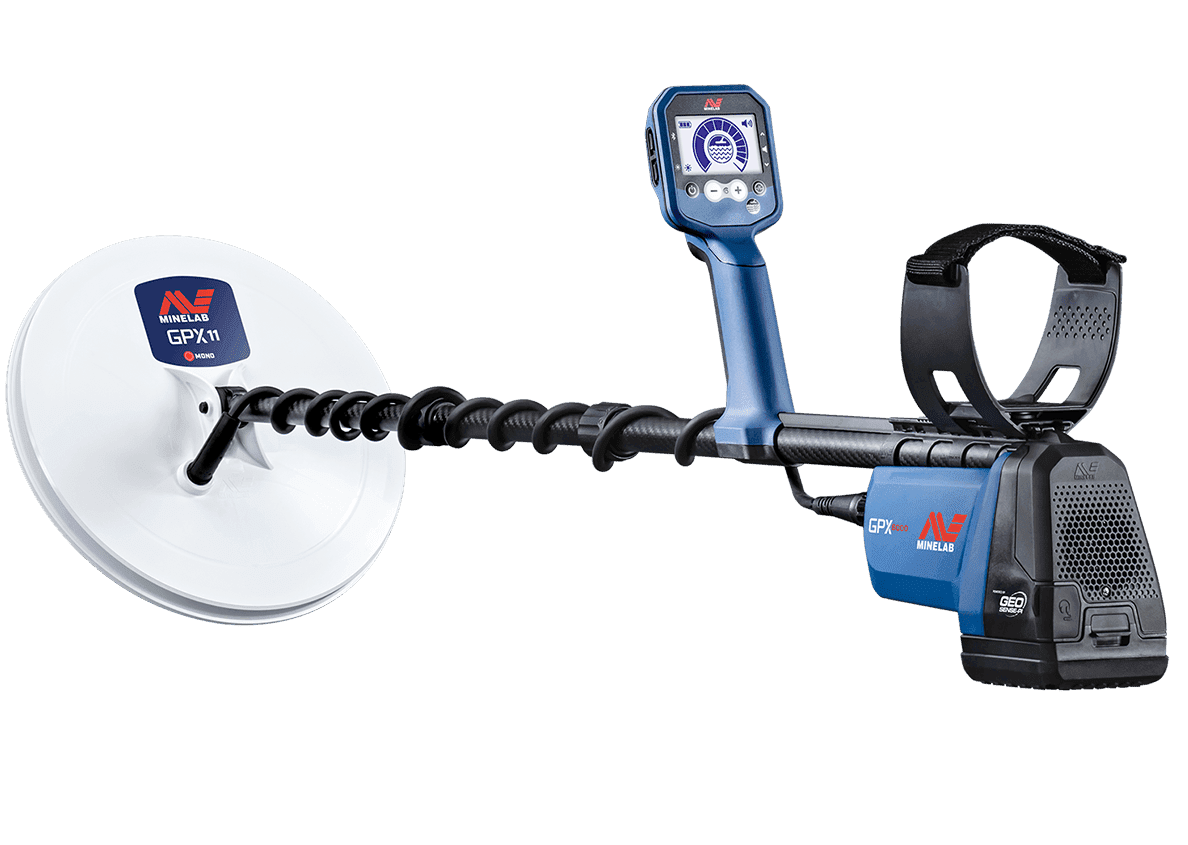

The GPX 6000 weighs approximately 4.6 pounds with the GPX11 coil installed. Lightweight carbon-fiber shafts, a streamlined control box, and Minelab’s U-Flex armrest help reduce fatigue during long days in the goldfields.

Wireless and Built-In Audio

Listen through the detector’s built-in speaker or use the included Minelab ML100 Bluetooth wireless headphones. Low-latency wireless audio provides clear target responses without a headphone cable interfering with movement.

Key Features

• GeoSense-PI pulse-induction technology

• Detects small fragments through larger gold nuggets

• Automatic ground balancing

• Automatic noise cancellation

• Automatic and manual sensitivity

• Three ground types: Normal, Difficult, and Severe

• Double-D EMI Cancel mode

• Double-D Conductive Ground Cancel mode

• Lightweight carbon-fiber shaft system

• U-Flex adjustable armrest

• Built-in loudspeaker

• Bluetooth aptX Low Latency wireless audio

• External removable rechargeable battery

• Three specialized waterproof search coils

• Rain- and splash-resistant detector housing

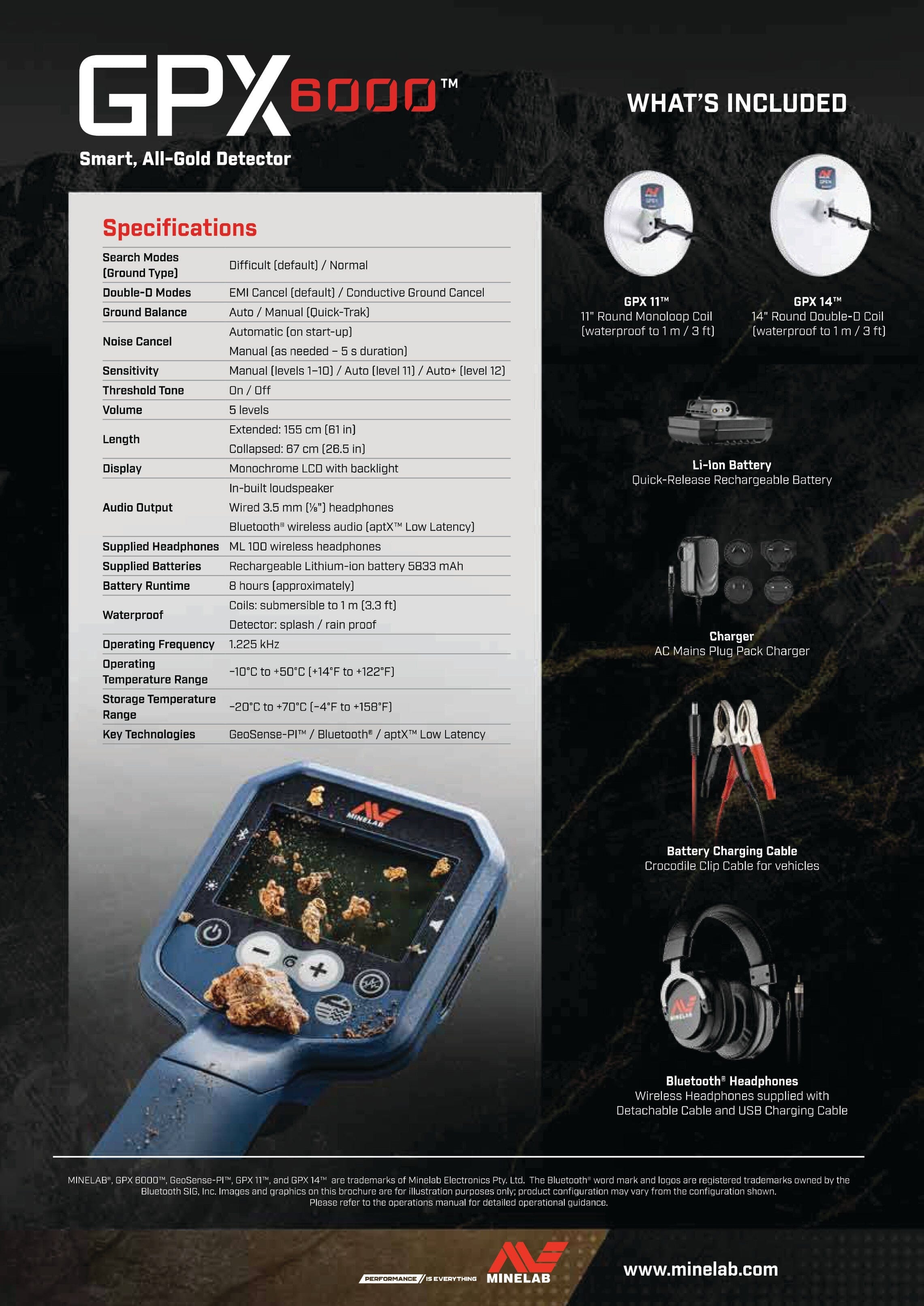

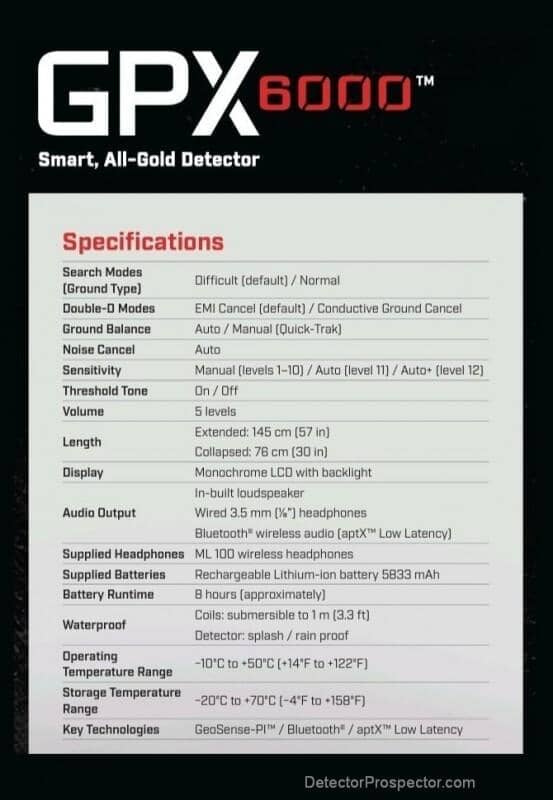

GPX 6000 Specifications

• Manufacturer: Minelab

• Model: GPX 6000

• Primary application: Natural-gold prospecting

• Detection technology: GeoSense-PI

• Operating technology: Pulse induction

• Ground types: Normal, Difficult, and Severe

• Sensitivity: Automatic and manual levels 1–10

• Noise cancellation: Automatic

• Ground balance: Automatic

• Double-D modes: EMI Cancel and Conductive Ground Cancel

• Display: Monochrome LCD

• Audio outputs: Built-in speaker, 3.5 mm wired headphones, and Bluetooth wireless audio

• Supplied headphones: Minelab ML100 Bluetooth wireless headphones

• Battery: Removable 7.4V, 5833 mAh lithium-ion battery pack

• Detector length collapsed: 26.5 inches / 67 centimeters

• Detector length extended: 61 inches / 155 centimeters

• Detector weight with GPX11 coil: 4.6 pounds / 2.1 kilograms

• Coil waterproof depth: 3.3 feet / 1 meter

• Detector housing protection: Splash- and rain-resistant

• Operating temperature: 14°F to 122°F / -10°C to 50°C

• Storage temperature: -4°F to 158°F / -20°C to 70°C

• Warranty: 3 years on the control box and Minelab coils

• Bundle SKU: 3300-0500-17-coil-promo

Included Search Coils

• GPX11 11-inch round Monoloop coil

• GPX14 14-inch round Double-D coil

• GPX17 17-inch x 13-inch elliptical Monoloop coil

• Protective skid plates

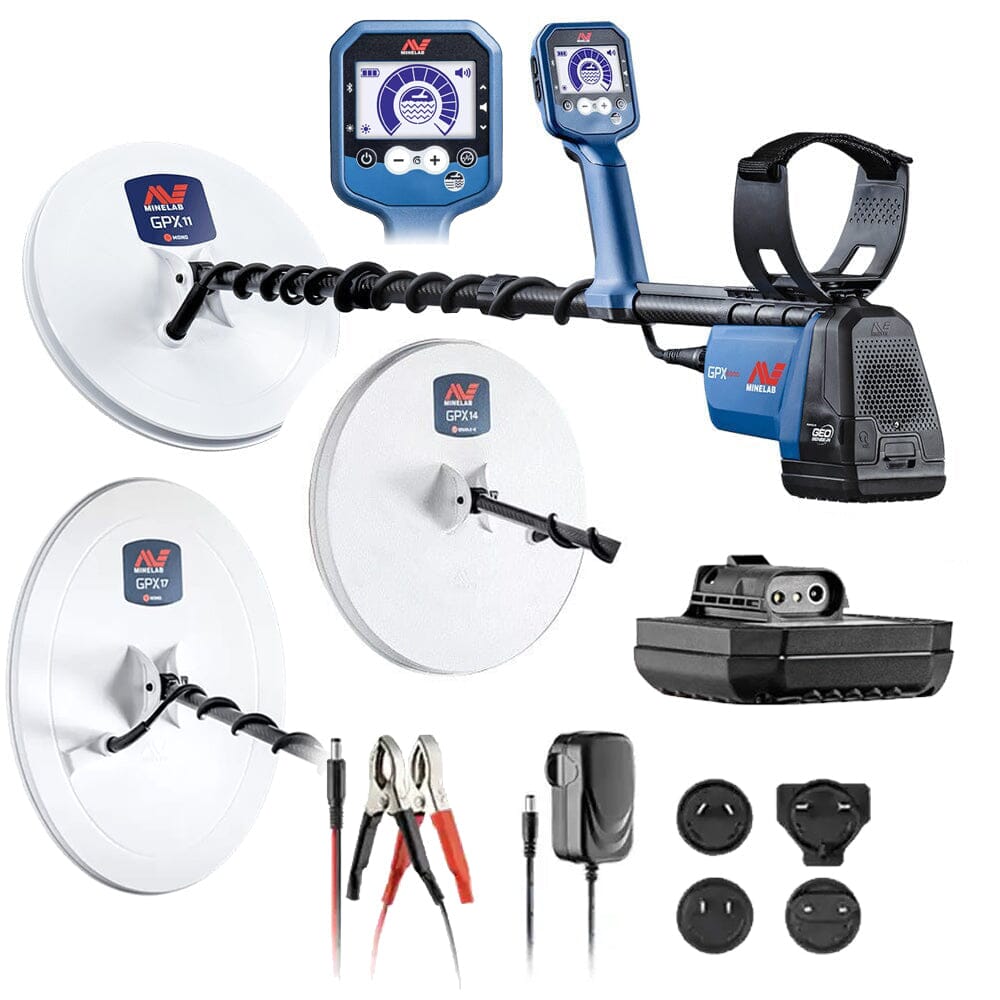

Package Includes

• Minelab GPX 6000 metal detector

• GPX11 11-inch Monoloop search coil

• GPX14 14-inch Double-D search coil

• GPX17 17-inch Monoloop search coil

• Minelab ML100 Bluetooth wireless headphones

• Removable rechargeable lithium-ion battery

• Battery-charging equipment

• Protective coil skid plates

• Factory documentation

Ideal For

• Natural-gold prospecting

• Detecting small gold fragments

• Searching for larger and deeper nuggets

• Highly mineralized soil

• Conductive or salty ground

• Areas with electromagnetic interference

• Open goldfields requiring wide ground coverage

• Rocky washes and confined terrain

• Professional and serious recreational prospectors

Important Waterproofing Information

The GPX11, GPX14, and GPX17 search coils are waterproof to approximately 3.3 feet (1 meter). The GPX 6000 control box is rain- and splash-resistant but is not waterproof and must never be submerged. The supplied ML100 wireless headphones are also not waterproof.

Included in this package:

• GPX 6000 Metal Detector
• GPX 11" Coil
• GPX 14" Coil
• GPX 17" Coil

GeoSense-PI™ technology quickly and precisely analyses gold signals buried in the ground, so you'll be able to hear all gold pieces clearly. Small fragments to large nuggets and everything in between can be accurately located with this one detector.

With automatic features and an easy-to-use interface, you'll be an expert at finding gold from the moment you turn on your GPX 6000. Because Automatic Ground Balance continously adapts to changing soil conditions as you swing your detector over the ground, there's no need to adjust any settings. Finding gold has never been easier.

Weighs only 2.1 kg (4.6 lb), featuring light carbon fibre shafts, streamlined control box, and signature U-Flex™ armrest so you can detect for longer and feel comfortable doing it.

Tested in the harsh environments of the Australian outback, Africa and the Middle East, the GPX 6000 can withstand extreme heat and heavy rains. A 3-year warranty is included, backed by Minelab's global support.

11" and 14" included with purchase.

Coil options include a versatile 11" Monoloop coil for tight spaces and pinpointing tiny gold pieces, a 14" Double-D coil to detect gold accurately even in salty environments, and a 17" Monoloop coil to search areas faster and find big nuggets. All coils are waterproof to 1 m (3.3').

Whether listening with the loud and clear external speaker or the supplied wireless Bluetooth® headphones, you'll never miss out on the sound of gold.
