Garrett Vortex VX9 Multi-Frequency Waterproof Metal Detector
Garrett’s Most Advanced Vortex—Built for Better Target Identification on Land and in the Water

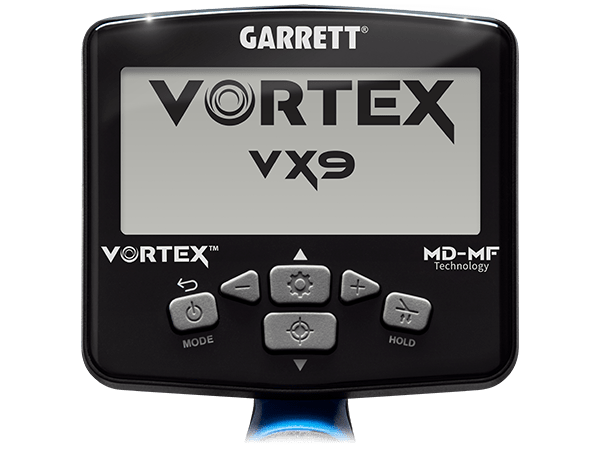

The Garrett Vortex VX9 is the professional-level model in the upgradeable Vortex detector series. Its advanced three-tiered MD-MF Target ID display provides separate non-ferrous and ferrous information, helping you make more informed decisions before digging.
With seven frequency options, dedicated saltwater performance, three recovery-speed settings, built-in Garrett Z-Lynk wireless capability, and waterproof construction to 16 feet, the VX9 is ready for parks, fields, beaches, surf, and freshwater hunting.
Three-Tiered MD-MF Target ID
When operating in multi-frequency, the VX9 displays targets across three separate scales:
-
One non-ferrous Target ID scale
-
Two ferrous scales for identifying unwanted iron
-
Simultaneous scale indications for complex or mixed targets
This additional target information helps identify difficult objects and distinguish desirable targets located close to iron trash.
Seven Frequency Options
Select from five individual operating frequencies or two simultaneous multi-frequency options:
-
5 kHz
-
9 kHz
-
13 kHz
-
18 kHz
-
25 kHz
-
Multi-Frequency
-
Multi-Frequency Salt
Multi-Frequency Salt is optimized for smoother performance and more accurate Target ID on wet saltwater beaches and in the surf.
Seven Search Modes
-
Zero Discrimination
-
Standard
-
U.S. Coins
-
Beach
-
Thin Coins
-
Fast
-
Custom
Thin Coins Mode
Designed to improve response on small, thin, and lower-conductive targets such as hammered silver coins, small ancient coins, and thin gold items.
Fast Mode
Provides rapid target recovery for competition hunts and trash-filled locations where nearby metal objects can mask valuable targets.
Adjustable Recovery Speed
Choose from three recovery-speed settings. Faster recovery can improve separation between closely spaced targets, while slower settings may provide advantages when searching cleaner ground.
Key Features
-
Garrett MD-MF Multi-Dimensional Multi-Frequency technology
-
Three-tiered Target ID display
-
Five single frequencies and two multi-frequency options
-
Dedicated Multi-Frequency Salt operation
-
Seven search modes plus pinpoint
-
Three recovery-speed settings
-
Five-tone audible Target ID
-
Eight sensitivity and depth settings
-
Eight Iron Volume levels
-
Garrett Iron Audio
-
High-resolution 175-point ground balance
-
Frequency Shift for reducing electrical interference
-
Backlit LCD
-
Built-in speaker
-
Built-in Garrett Z-Lynk wireless technology
-
Rechargeable internal lithium-ion battery
-
Collapsible shaft for convenient transportation
-
Fully submersible to 16 feet or 5 meters
-
Software-updateable and upgradeable design
Garrett Z-Lynk Wireless Ready
Built-in Z-Lynk wireless technology allows the VX9 to connect directly with compatible Garrett wireless accessories, including:
Compatible wireless headphones and pinpointers are sold separately unless specifically included in a bundle.
Specifications
-
Standard coil: Garrett Vortex Raider 8.5" x 11" DD search coil
-
Waterproof depth: 16 feet or 5 meters
-
Weight with coil cover: Approximately 3 lbs. or 1.38 kg
-
Collapsed length: Approximately 24.75"
-
Extended length: Approximately 56.75"
-
Battery: Built-in rechargeable lithium-ion
-
Typical battery life: Approximately 15 hours
-
Sensitivity levels: 8
-
Recovery-speed settings: 3
-
Iron Volume levels: 8
-
Audible Target ID: 5 tones
-
Ground-balance resolution: 175 points
-
Garrett model number: 1143060
-
Warranty: Three-year limited warranty

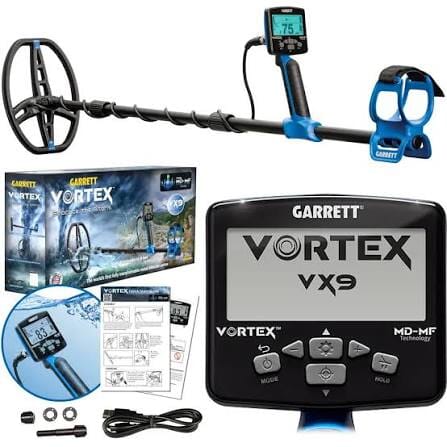

Package Includes
-
Garrett Vortex VX9 metal detector
-
Garrett Vortex Raider 8.5" x 11" DD search coil
-
Protective search-coil cover
-
USB charging and update cable
-
Instructional materials
Note: Wireless headphones, pinpointer, and USB wall adapter are not included unless specifically stated. The detector can be software updated, and Garrett Vortex feature upgrades are tied to the detector’s upgradeable platform.

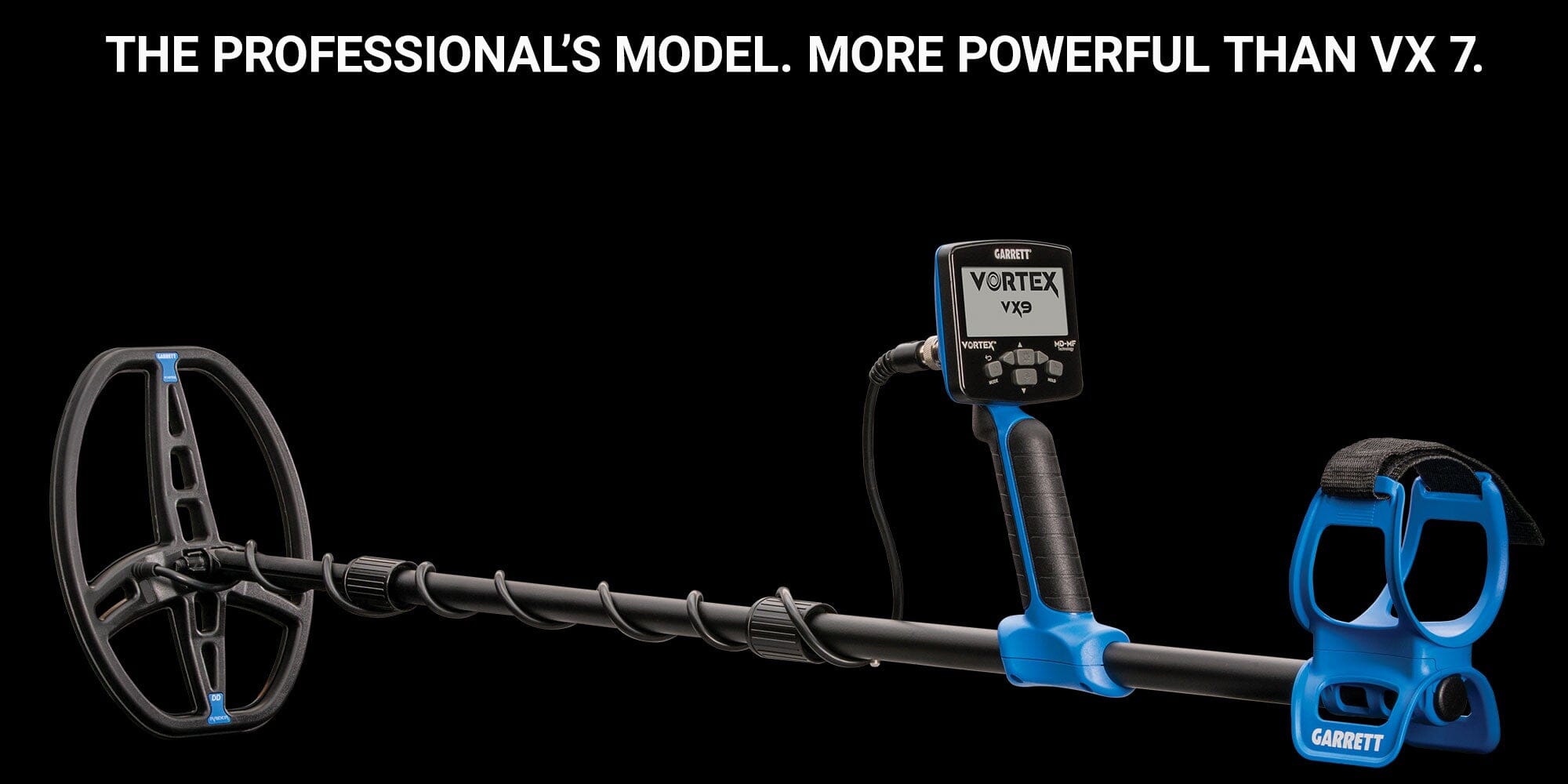

MORE POWER THAN VX7
The Professional’s model. Full three-tiered MD-MF Target ID display (including two ferrous scales to help identify unwanted iron trash). Includes Multi-Salt and additional frequency choices. Additional Recovery Speed controls. FAST Mode for competition hunts and high-trash search areas. THIN COINS Mode for detecting fine, lower conductive coins such as hammered silver and thin gold coins.
ULL THREE-TIERED MD-MF TARGET ID SCALE
When operating in Multi-Frequency, the VX9’s Target ID system displays a non-ferrous scale and two ferrous scales to help identify unwanted iron trash. Complex targets may indicate on both scales simultaneously.
More target information . . . so you can make better dig decisions!
THIN COINS MODE
Perfect setting made specifically for going after small thin coins - hammered silvers, tiny ancient gold coins, etc.
Faster recovery speed.
Enhanced Response on select Target ID range.
Target Response reduced for common ferrous items and high-tone targets.
FAST MODE
Designed for use in trashy areas, where abundant trach can mask adjacent coins. Also ideal for use in competition hunts. Includes fast recovery spee and reduced iron volume
3 LEVELS OF RECOVERY SPEED CONTROL
Choose from three recovery speeds. Increased recovery/reactivity speed helps you more clearly distinguish adjacent targets. A great benefit for competition hunts and for hunt sites filled with metallic trash that might otherwise mask good targets.
INCLUDES BEACH MODE AND MULTI-FREQUENCY SALT OPERATION!
Utilize the power of MD-MF Technology and Multi-Salt operation. Smooth operation and deep Target ID accuracy along wet salt beaches and in the surf. Fully submersible to 16 feet.
WIRELESS READY - Garrett Z-Lynk Wireless Built In
Compatible with MS3 Headphones, AT Z-Lynk Pro-Pointer (Sold Separately)
7, YES, SEVEN FREQUENCY OPTIONS
Choose from five powerful single frequencies (5 kHz, 9 kHz, 13 kHz, 18 kHz, or 25 kHz) or search with one of two Vortex simultaneous Multi-Frequency options (the traditional Multi or Multi-Frequency Salt for saltwater beach use).
SEARCH MODE VERSATILITY
Choose from 7 options:
Thin Coins Mode
Fast Mode
Zero Discrimination
Beach Mode
Standard Mode (ideal for hunting relics, jewelry, and most international coins)
US Coins Mode
Custom Mode
IRON VOLUME
CONTROL WHAT YOU HEAR
Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels.
LIGHTWEIGHT AND COLLAPSIBLE!
Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm)
Weight: 3 lbs. (1.38 kg) with coil cover installed.
MD-MF TECHNOLOGY EXPLAINED
The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!
SUBMERSIBLE TO 16 FEET (5 METERS)
SEARCH WITH CONFIDENCE
Fast Target Recovery Speed (3 settings)
5-Tone Audible Target ID
Excellent Detection Depth and Target ID accuracy
Backlit LCD for night operation
Rechargeable Battery - Built-in lithium ion battery provides approximately 15 hours of search time per charge.
EASY-ACCESS POWERFUL MENU OPTIONS
Hi-Resolution Ground Balance - 175 points of ground balance resolution, ranging from ferrous ground to saltwater.
Volume Control - For both the built-in speaker and headphones.
Eight Sensitivity/Depth Adjustments
Iron Audio - Garrett’s unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers.
Seven Search Modes + Pinpoint
Frequency Shift - Use to reduce noise or electrical interference (EMI)
Backlight - Illuminate your LCD screen to see target information at night.
World’s first fully transformable detector series!
As your skills increase, transform your VX5 OR VX7 into a VX9.
