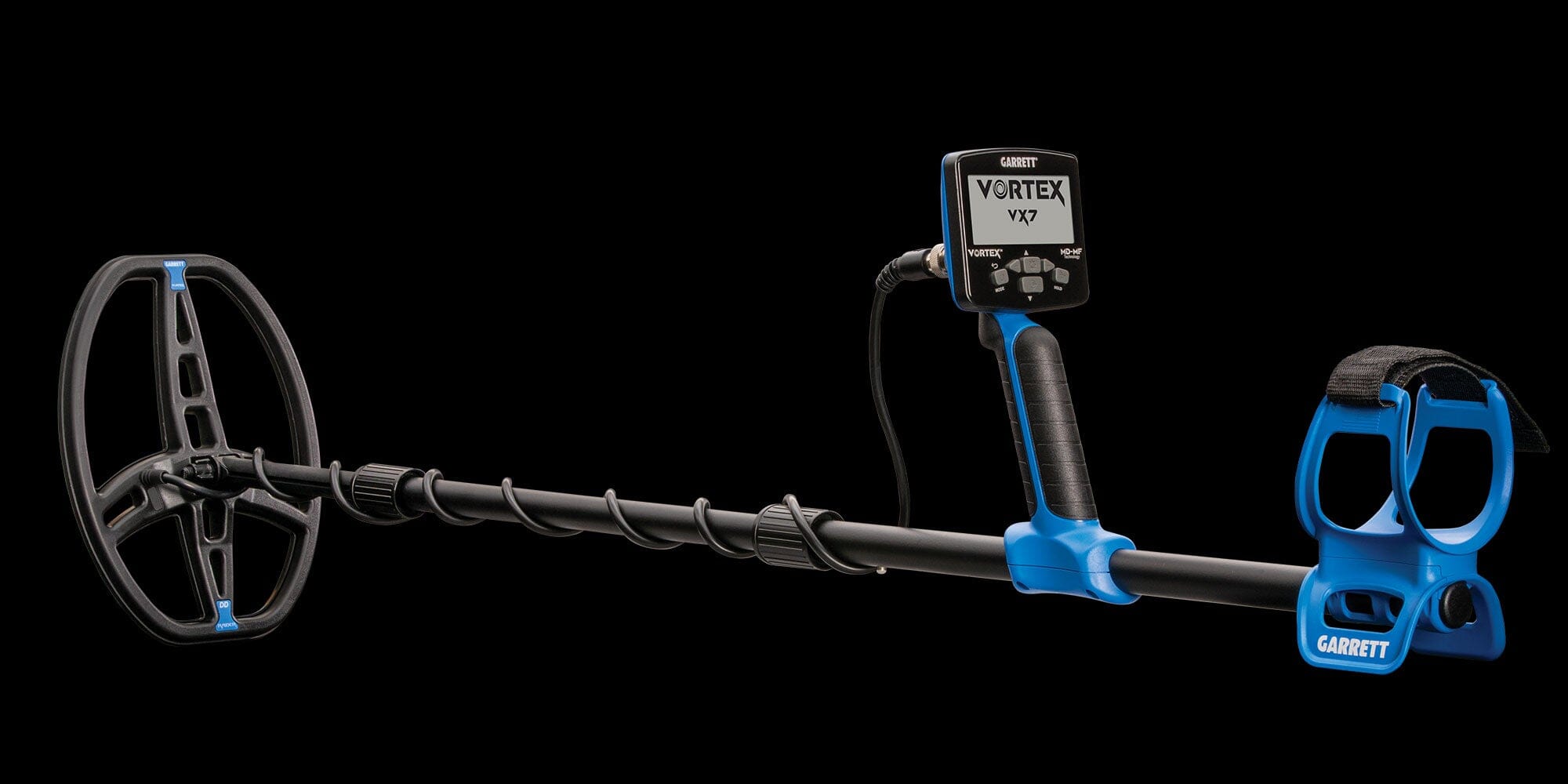

Garrett Vortex VX7 Waterproof Multi-Frequency Metal Detector
Advanced Multi-Frequency Performance for Land, Beach and Underwater Detecting
The Garrett Vortex VX7 is a fully waterproof, upgradeable metal detector built for coin, jewelry, relic, beach and shallow-water hunting. Garrett’s MD-MF technology provides powerful simultaneous multi-frequency performance, while the dedicated Multi-Frequency Salt option delivers smooth operation and dependable Target ID performance in wet sand and saltwater surf.
A dual Target ID scale displays ferrous and non-ferrous information simultaneously, helping you evaluate complex targets before digging. Adjustable recovery speed, five-tone audio, Iron Volume and Garrett Iron Audio provide the control needed for difficult sites and trash-filled ground.
MD-MF Multi-Frequency Technology
The VX7 offers four frequency options:
-
5 kHz single frequency
-
13 kHz single frequency
-
Multi-Frequency
-
Multi-Frequency Salt
Multi-Frequency Salt is optimized for wet salt beaches and surf, while the standard Multi-Frequency option provides versatile performance across a wide range of inland conditions.
Dual Target ID Scale
When operating in Multi-Frequency, the VX7 displays separate ferrous and non-ferrous Target ID scales. Complex targets may appear on both scales, providing additional information that can help you make more informed recovery decisions.
Fully Waterproof to 16 Feet
The entire detector is submersible to 16 feet or 5 meters, making it suitable for:
Optional Garrett submersible headphones are required for underwater audio.
Five Search Modes
-
Zero Discrimination
-
Standard
-
US Coins
-
Beach
-
Custom
-
Pinpoint function
Key Features
-
Garrett MD-MF multi-frequency technology
-
Standard Multi-Frequency and Multi-Frequency Salt operation
-
Two selectable single frequencies
-
Dual ferrous and non-ferrous Target ID scales
-
Standard and Fast recovery-speed settings
-
Five-tone audible Target ID
-
Eight Iron Volume levels
-
Garrett Iron Audio
-
High-resolution 175-point ground balance
-
Eight sensitivity and depth settings
-
Adjustable volume control
-
Frequency Shift for reducing electrical interference
-
Backlit LCD screen
-
Built-in Garrett Z-Lynk wireless audio
-
Integrated rechargeable lithium-ion battery
-
Approximately 15 hours of operation per charge
-
Fully waterproof to 16 feet
-
Collapsible travel-friendly shaft
-
Upgradeable to VX9 through a purchased software upgrade
Built-In Z-Lynk Wireless
The VX7 includes Garrett Z-Lynk wireless technology for use with compatible Garrett wireless audio accessories, including:
Wireless and waterproof headphones are sold separately.
Lightweight and Collapsible
The Vortex VX7 weighs approximately 3 pounds with its coil cover installed. Its adjustable shaft collapses for easier storage and transportation.
Included Search Coil
The VX7 includes Garrett’s versatile 8.5" x 11" DD Raider search coil. Its Double-D design provides an effective balance of depth, ground coverage and target separation for everyday detecting.
Specifications
-
Brand: Garrett
-
Model: Vortex VX7
-
Manufacturer Part Number: 1142960
-
Detection Technology: MD-MF
-
Frequency Options: 5 kHz, 13 kHz, Multi-Frequency and Multi-Frequency Salt
-
Search Modes: Five plus Pinpoint
-
Audio Tones: Five
-
Recovery Speeds: Standard and Fast
-
Sensitivity Settings: Eight
-
Iron Volume Levels: Eight
-
Ground Balance Resolution: 175 points
-
Waterproof Rating: 16 feet / 5 meters
-
Wireless Audio: Built-in Garrett Z-Lynk
-
Battery: Integrated rechargeable lithium-ion
-
Approximate Battery Life: 15 hours
-
Included Coil: 8.5" x 11" DD Raider
-
Weight: Approximately 3 pounds with coil cover
-
Warranty: Garrett three-year limited warranty
What’s Included
-
Garrett Vortex VX7 metal detector
-
Garrett 8.5" x 11" DD Raider search coil
-
Protective search-coil cover
-
Adjustable collapsible shaft assembly
-
Coil mounting hardware
-
USB charging and data cable
-
Owner documentation
Wireless headphones, waterproof headphones, pinpointer and USB wall-charging adapter are not included.
Upgradeable Platform
The VX7 can be converted to the higher-featured VX9 through a separately purchased Garrett software upgrade. This allows users to expand the detector’s capabilities without replacing the physical detector.
Important Setup Notice
Update the detector to the latest Garrett firmware before use to ensure the best performance, accurate Target ID operation and compatibility with Garrett Vortex accessory coils. After saltwater use, rinse the detector and coil with clean fresh water before storage.
MORE POWER THAN VX5
More advanced. Includes more frequency and mode options than VX5, including the powerful Multi-Frequency Salt mode for wet sand and saltwater surf use. Two-tiered MD-MF Target ID display (with separate ferrous and non-ferrous target scales). Additional audio tones plus adjustable Recovery Speed.
INCLUDES BEACH MODE AND MULTI-FREQUENCY SALT OPERATION!
Utilize the power of MD-MF Technology and Multi-Salt operation. Smooth operation and deep Target ID accuracy along wet salt beaches and in the surf. Fully submersible to 16 feet.
RECOVERY SPEED CONTROL
Select from Standard or Fast speed. Increased recovery/reactivity speed helps you more clearly distinguish adjacent targets. A great benefit for competition hunts and for hunt sites filled with metallic trash that might otherwise mask good targets.
DUAL TARGET ID SCALE
When operating in Multi-Frequency, the VX7’s Target ID system displays both a ferrous target scale and a non-ferrous scale. Complex targets may indicate on both scales simultaneously. More target information . . . so you can make better dig decisions!
WIRELESS READY - Garrett Z-Lynk Wireless Built In
Compatible with MS-3 Hedphones, AT Z-Lynk Pro-Pointer
IRON VOLUME
CONTROL WHAT YOU HEAR
Iron Volume allows you to decrease the volume of ferrous (iron) targets, while the volume of non-ferrous targets remains at normal level. Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease the volume of undesired items. Eight adjustment levels.

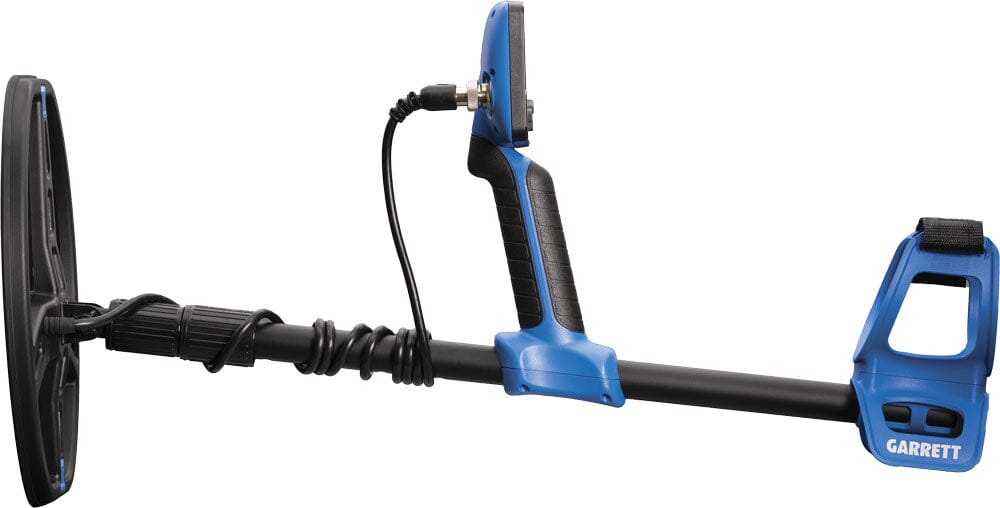

LIGHTWEIGHT AND COLLAPSIBLE!
Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm)
Weight: 3 lbs. (1.38 kg) with coil cover installed.
MD-MF TECHNOLOGY EXPLAINED
The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!
FOUR (4) FREQUENCY OPTIONS
Choose from two powerful single frequencies (5 kHz or 13 kHz) or search with one of two Vortex simultaneous Multi-Frequency options (the traditional Multi or Multi-Frequency Salt for saltwater beach use).
SEARCH MODE VERSATILITY
Choose from 5 options:
Zero Discrimination
Beach Mode
Standard Mode (ideal for hunting relics, jewelry, and most international coins)
US Coins Mode
Custom Mode
SUBMERSIBLE TO 16 FEET (5 METERS)
Search streams, lakes, and the ocean coast with your Vortex.
(Submersible headphones available from Garrett)
SEARCH WITH CONFIDENCE
Fast Target Recovery Speed (2 settings)
5-Tone Audible Target ID
Excellent Detection Depth and Target ID accuracy
Backlit LCD for night operation
Rechargeable Battery - Built-in lithium ion battery provides approximately 15 hours of search time per charge.
EASY-ACCESS POWERFUL MENU OPTIONS
Hi-Resolution Ground Balance - 175 points of ground balance resolution, ranging from ferrous ground to saltwater.
Volume Control - For both the built-in speaker and headphones.
Eight Sensitivity/Depth Adjustments
Iron Audio - Garrett’s unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers.
Five Search Modes + Pinpoint
Frequency Shift - Use to reduce noise or electrical interference (EMI)
Backlight - Illuminate your LCD screen to see target information at night.
World’s first fully transformable detector series!
As your skills increase, transform your VX7 into a VX9.
