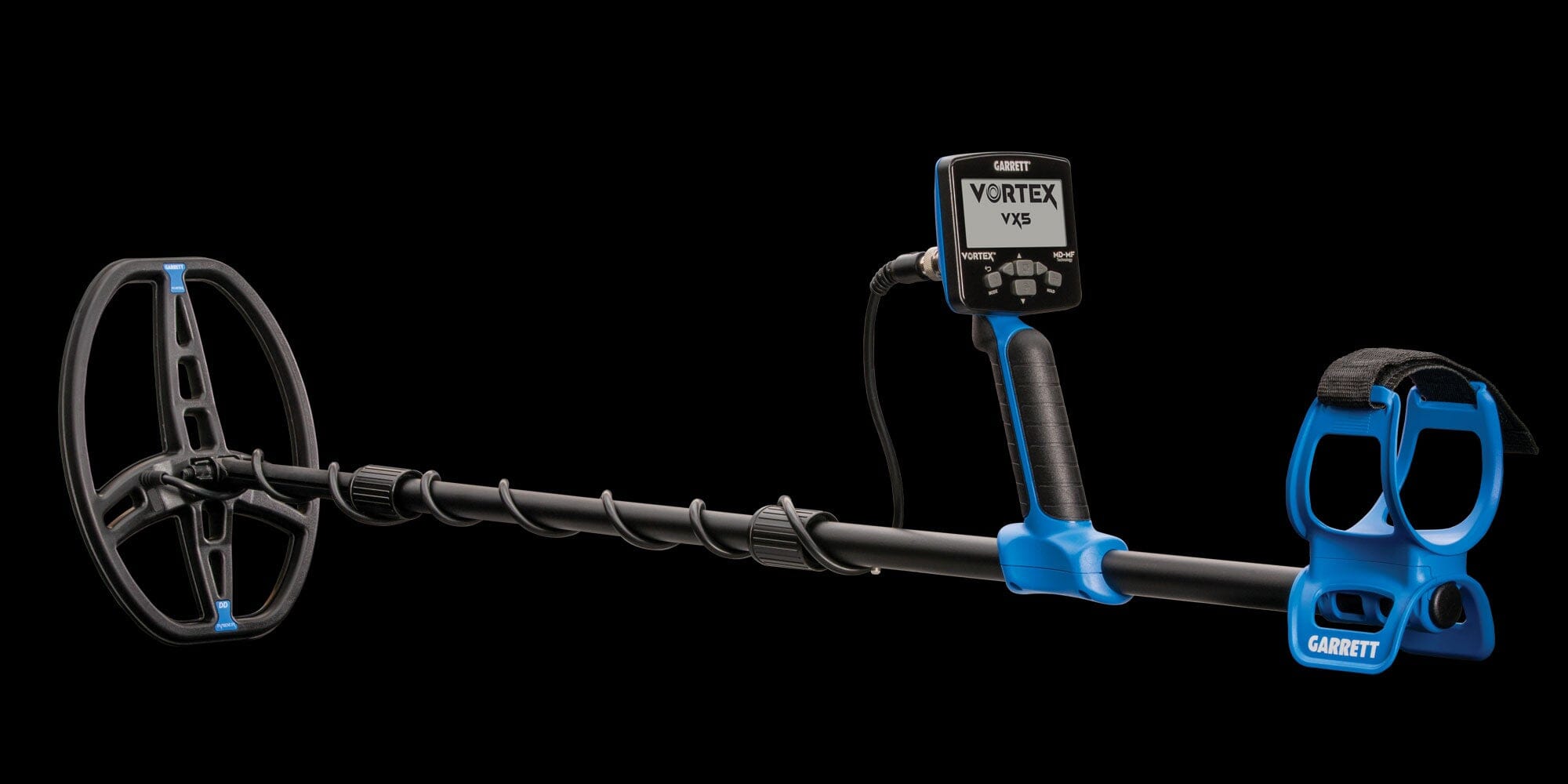

Garrett Vortex VX5 Waterproof Multi-Frequency Metal Detector
Affordable Multi-Frequency Performance for Land and Water Hunting
The Garrett Vortex VX5 brings simultaneous multi-frequency technology, a fully waterproof design and Garrett’s upgradeable Vortex platform to an easy-to-use detector.
Choose between a powerful 13 kHz single frequency and simultaneous Multi-Frequency operation for dependable performance across coins, jewelry, relics and other common targets. The VX5 also includes fast target recovery, three-tone audio, high-resolution ground balance and Garrett Iron Audio.
Fully Waterproof to 16 Feet
The entire detector is waterproof and submersible to 16 feet or 5 meters, making it suitable for:
The VX5 does not include the dedicated Multi-Frequency Salt and Beach modes found on the VX7 and VX9. Detectorists who primarily hunt conductive wet salt sand or saltwater surf should consider upgrading to one of those models.
Optional Garrett submersible headphones are required for underwater audio.
Two Frequency Options
Select between:
This gives users the flexibility to choose a focused single frequency or the broad target response of multi-frequency detection.
Four Search Modes
-
Zero Discrimination
-
Standard
-
US Coins
-
Custom
-
Pinpoint function
Key Features
-
Garrett MD-MF multi-frequency technology
-
Single-tier Target ID display
-
13 kHz and simultaneous Multi-Frequency operation
-
Fast fixed recovery speed
-
Three-tone audible Target ID
-
Garrett Iron Audio
-
High-resolution 175-point ground balance
-
Eight sensitivity and depth settings
-
Adjustable volume control
-
Frequency Shift for reducing electrical interference
-
Backlit LCD screen
-
Integrated rechargeable lithium-ion battery
-
Approximately 15 hours of operation per charge
-
Fully waterproof to 16 feet
-
Lightweight, collapsible shaft
-
Updateable and upgradeable Vortex platform
Fast Target Recovery
The VX5 uses a fast recovery speed to help distinguish closely spaced targets. This is especially useful in parks, old home sites and other locations where desirable items may be located near metallic trash.
Lightweight and Collapsible
The adjustable Vortex shaft collapses for convenient transportation and storage.
Included Search Coil
The VX5 includes Garrett’s versatile 8.5" x 11" Multi-Flex DD search coil, providing a balanced combination of depth, ground coverage and target separation for everyday detecting.
Specifications
-
Brand: Garrett
-
Model: Vortex VX5
-
Manufacturer Part Number: 1142860
-
Detection Technology: MD-MF
-
Frequency Options: 13 kHz and Multi-Frequency
-
Search Modes: Four plus Pinpoint
-
Audio Tones: Three
-
Recovery Speed: Fast, fixed
-
Sensitivity Settings: Eight
-
Ground Balance Resolution: 175 points
-
Iron Audio: Yes
-
Iron Volume: No
-
Built-In Z-Lynk Wireless: No
-
Waterproof Rating: 16 feet / 5 meters
-
Battery: Integrated rechargeable lithium-ion
-
Approximate Battery Life: 15 hours
-
Included Coil: 8.5" x 11" Multi-Flex DD
-
Weight: Approximately 3 pounds with coil cover
-
Warranty: Garrett three-year limited warranty
What’s Included
-
Garrett Vortex VX5 metal detector
-
Garrett 8.5" x 11" Multi-Flex DD search coil
-
Protective search-coil cover
-
Adjustable collapsible shaft assembly
-
Coil mounting hardware
-
USB charging and data cable
-
Quick-start documentation
Headphones, pinpointer and USB wall-charging adapter are not included.
Upgradeable Vortex Platform
The VX5 can be converted to a VX7 or VX9 through a separately purchased Garrett software upgrade. Upgrading unlocks additional frequencies, search modes, Target ID information and advanced controls without requiring the purchase of another detector.
Important Setup Notice
Update the detector to the latest Garrett firmware before use to ensure the best performance and compatibility with Garrett Vortex accessory coils. After detecting in saltwater or dirty water, rinse the detector and coil with clean fresh water before storage.
The entry Vortex model is loaded with features and provides fast, fixed Recovery Speed on adjacent targets. Fully waterproof to 16 feet (5m). Single and Multi-Frequency options. Single-tier MD-MF Target ID scale. Three audio tones.

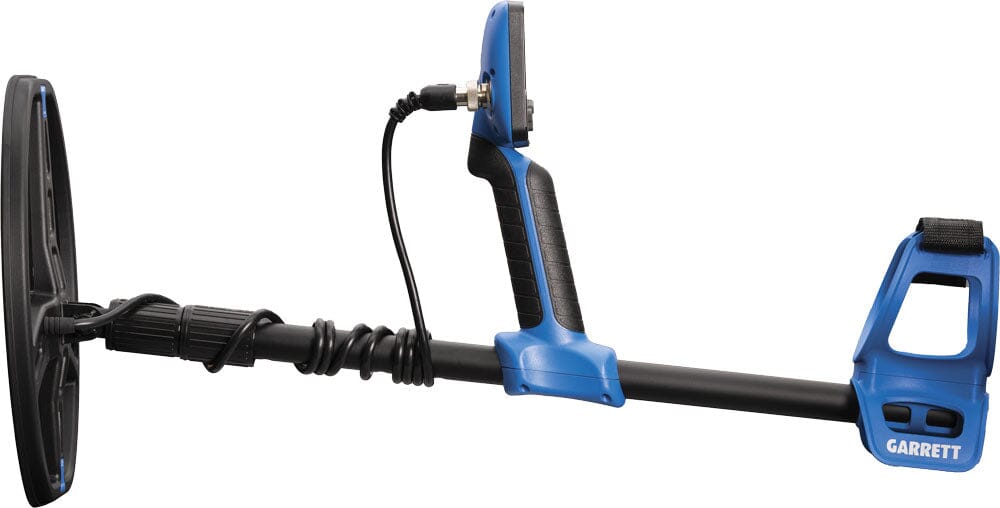

LIGHTWEIGHT AND COLLAPSIBLE!
Compacts to 24.75" (62.86 cm) and extends to 56.75" (144.14 cm)
Weight: 3 lbs. (1.38 kg) with coil cover installed.
MD-MF TECHNOLOGY EXPLAINED
The world’s first fully upgradeable waterproof detector series! As your skills increase, you can opt to convert your VX-5 to a VX-7 or VX-9 model with software updates. Each Vortex model upgrade includes additional operating frequencies, more advanced features, and more power!
FREQUENCY OPTIONS (2)
Choose a powerful single frequency (13 kHz) or search with Vortex’s simultaneous Multi-Frequency option to achieve excellent detection on all targets in all soils.
SEARCH MODE VERSATILITY
Choose from 4 options:
Zero Discrimination
Standard Mode (ideal for hunting relics, jewelry, and most international coins)
US Coins Mode
Custom Mode
SUBMERSIBLE TO 16 FEET (5 METERS)
Vortex waterproof up to 16 feet
Search streams, lakes, and the ocean coast with your Vortex.
(Submersible headphones available from Garrett)
SEARCH WITH CONFIDENCE
Fast Target Recovery Speed
Excellent Detection Depth and Target ID accuracy
Backlit LCD for night operation
Rechargeable Battery - Built-in lithium ion battery provides approximately 15 hours of search time per charge.
Lightweight and Collapsible
3-Tone Audible Target ID
EASY-ACCESS POWERFUL MENU OPTIONS
Hi-Resolution Ground Balance
175 points of ground balance resolution, ranging from ferrous ground to saltwater.
Volume Control - For both the built-in speaker and headphones.
Eight Sensitivity/Depth Adjustments
Iron Audio - Garrett’s unique feature helps to correctly identify complex iron objects, such as bottlecaps and steel washers.
Four Search Modes + Pinpoint
Frequency Shift - Use to reduce noise or electrical interference (EMI)
Backlight - Illuminate your LCD screen to see target information at night.
World’s first fully transformable detector series!
As your skills increase, transform your VX5 into a VX7 or VX9.
