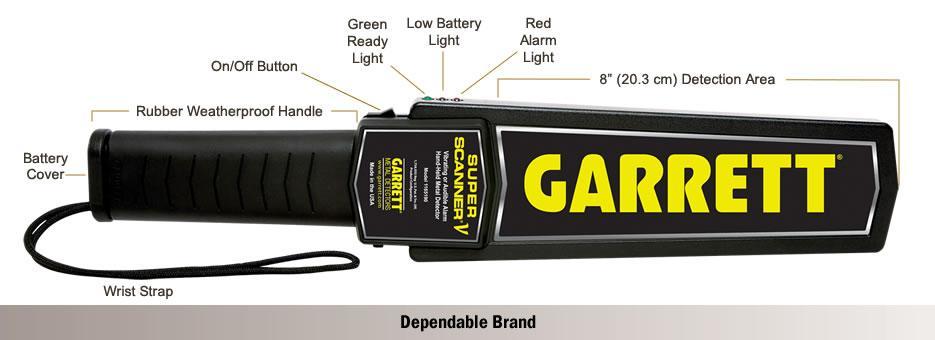

Garrett Super Scanner V Handheld Security Metal Detector

The Garrett Super Scanner V is a professional handheld metal detector designed for fast, dependable security screening. Originally developed for use at the 1984 Olympic Games, the Super Scanner has become one of the world’s most widely recognized handheld security detectors.

Its large eight-inch scanning surface helps operators screen individuals quickly and thoroughly. Automatic tuning eliminates routine sensitivity adjustments, while audible and silent vibrating alarm modes allow the detector to operate effectively in a variety of security environments.

Reliable Metal Detection

The Super Scanner V is engineered to detect ferrous, nonferrous, and stainless-steel objects. When metal is detected, the unit produces a sharp audible alarm or a silent vibration alert, along with a bright red LED indication.

Typical maximum detection distances include:

• Medium-sized pistol: up to 9 inches

• Large knife: up to 6 inches

• Razor blade or box cutter: up to 3 inches

• Tiny jewelry or foil-wrapped material: up to 1 inch

Actual detection distance may vary according to the target’s size, material, orientation, and surrounding conditions.

Automatic Operation

Digital microprocessor technology automatically calibrates the detector, eliminating the need for routine sensitivity adjustments. A momentary interference-elimination button helps reduce responses from nearby ambient metal, including rebar, metal walls, and other large stationary objects.

Key Features

• Professional handheld security screening detector

• Detects ferrous, nonferrous, and stainless-steel objects

• Large eight-inch scanning surface

• Automatic tuning and calibration

• Audible and silent vibrating alarm modes

• Bright LED status and detection indicators

• Momentary interference-elimination control

• Rugged, high-impact ABS housing

• Reinforced detection-coil compartment

• Tool-free battery replacement

• Up to 100 hours of operation with a standard 9-volt battery

• Wide operating-temperature range

• Exceeds applicable MIL-STD-810F drop-test procedures

Three-Color LED Indicators

• Green: Power is on

• Amber: Battery is low

• Red: Metal has been detected

Ideal For

• Schools and educational facilities

• Courthouses and government buildings

• Concerts and sporting events

• Airports and transportation facilities

• Loss-prevention operations

• Correctional facilities

• Nightclubs and entertainment venues

• Corporate and industrial security

• Private security personnel

• Special-event screening

Specifications

• Brand: Garrett

• Model: Super Scanner V

• Part number/SKU: 1165190

• Detector type: Handheld security metal detector

• Tuning: Automatic

• Scan-surface length: 8 inches

• Overall length: 16.5 inches

• Width: 3.25 inches

• Thickness: 1.625 inches

• Weight: 17.6 ounces

• Audio frequency: 2 kHz warble

• Alarm modes: Audible or silent vibration

• Indicators: Speaker and three-color LED display

• Controls: Audible/Off/Silent power switch and momentary interference-elimination switch

• Housing: High-impact ABS

• Operating temperature: -35°F to 158°F

• Operating humidity: Up to 95% noncondensing

• Standard power source: One 9-volt battery

• Standard battery life: Up to 100 hours under normal operation

• Optional rechargeable power: NiMH battery

• Optional NiMH runtime: Up to 45 hours per charge

What’s Included

• One Garrett Super Scanner V handheld metal detector

• One standard 9-volt battery

Please Note: The optional NiMH rechargeable battery kit is sold separately.

Operating Information

Move the detector smoothly along the screened area while keeping its broad scanning surface near the subject. Select either audible or silent vibration mode according to the screening environment. Use the momentary interference-elimination control when nearby structural metal causes unwanted detection.

Important: Security-screening effectiveness depends on proper operator training and established screening procedures. This detector identifies the presence of metal but does not determine the type of object detected.

Super Scanner® V Hand-Held
Metal Detector

PN 1165190

MSRP: $199.95 (U.S.)

Originally designed for use at the Olympic Games in 1984, Garrett's Super Scanner is the most recognized hand-held metal detector in the world.

Super Scanner V has both audible and silent vibrating alarm options and extended battery life.

Ultimate sensitivity: detects medium sized pistol from 9" distance; large knife from 6"; razor blades and box cutters from 3" distance; foil-wrapped drugs and tiny jewelry from 1".


Self-calibrating: digital microprocessor technology eliminates the need for periodic sensitivity adjustments.


Rugged, high-impact ABS case with reinforced coil compartment. Exceeds Mil-Std-810F (drop test) Method 516.5, procedures II and IV.


Large 8" scan surface for quick, thorough scanning.


No tools required to change standard 9V battery (included). Optional rechargeable battery kit available.


Sharp audible alarm and bright red LED indicates the detection of metal.


Momentary push button helps temporarily eliminate detection of nearby ambient metal such as rebar, metal walls.


Three-color LED indication: Green LED indicates ON; Amber LED indicates LOW BATTERY: Red LED indicates ALARM.


Operating temperatures: -35° F (-37° C) to 158° F (70° C)

Operating Temperatures
-35º F (-37º C) to 158º F (70º C)

Humidity
To 95% noncondensing

Audio Frequency
2kHz Warble

Tuning
Automatic

Indicators
Speaker
LED Alert Lights

Green: Power ON
Amber: Battery LOW
Red: ALARM condition

Controls
Power switch (Audible / Off / Silent)
Interference Elimination Momentary Switch

Battery
Single 9 volt battery provides up to 100 hours of
normal operation. Optional NiMH rechargeable battery
provides up to 45 hours on a single charge.

Dimensions

Width: 3.25" (8.3 cm)





Thickness: 1.625" (4.13 cm)





Length: 16.5" (42 cm)




Weight: 17.6 oz (500 g)
