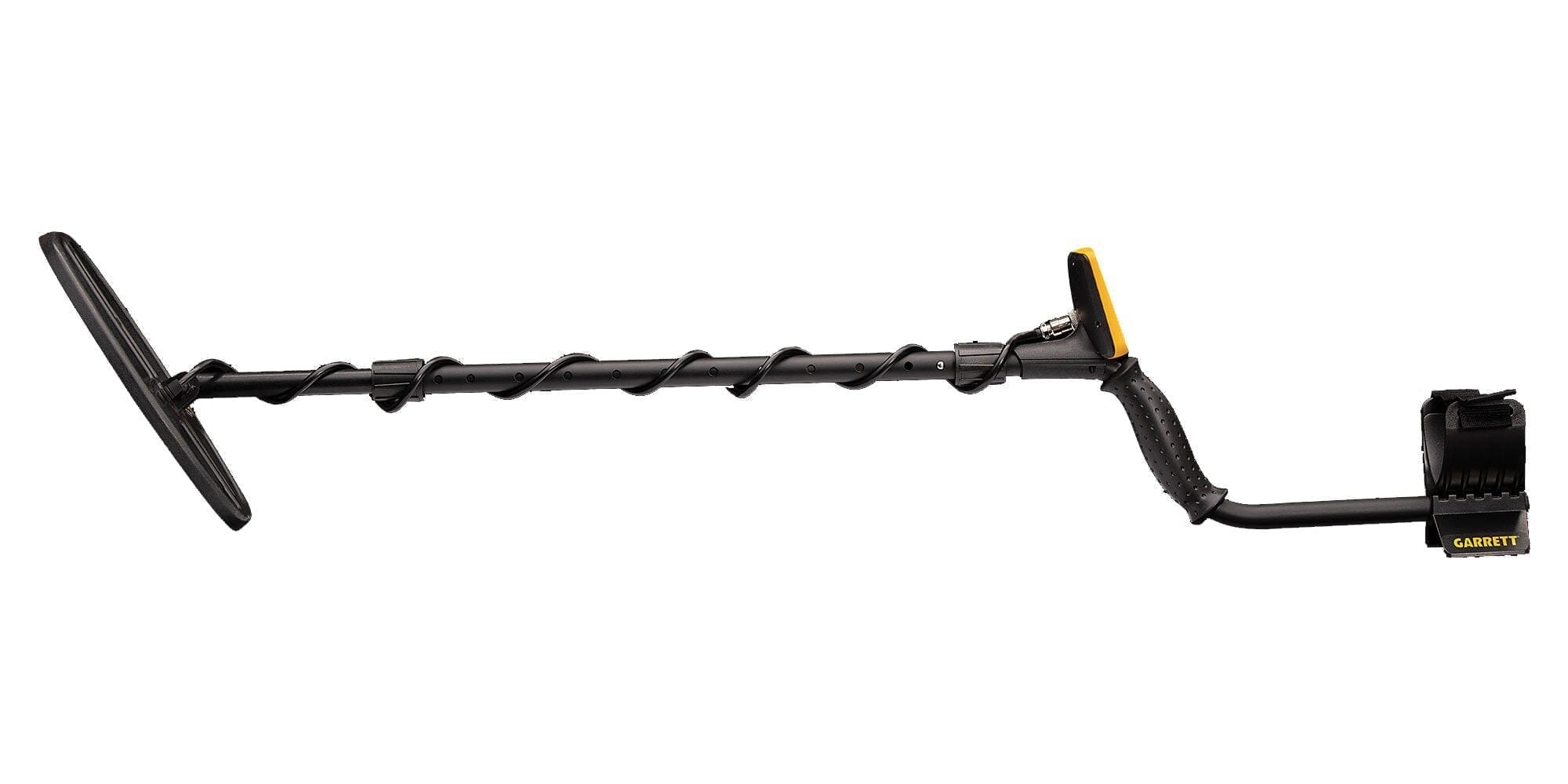

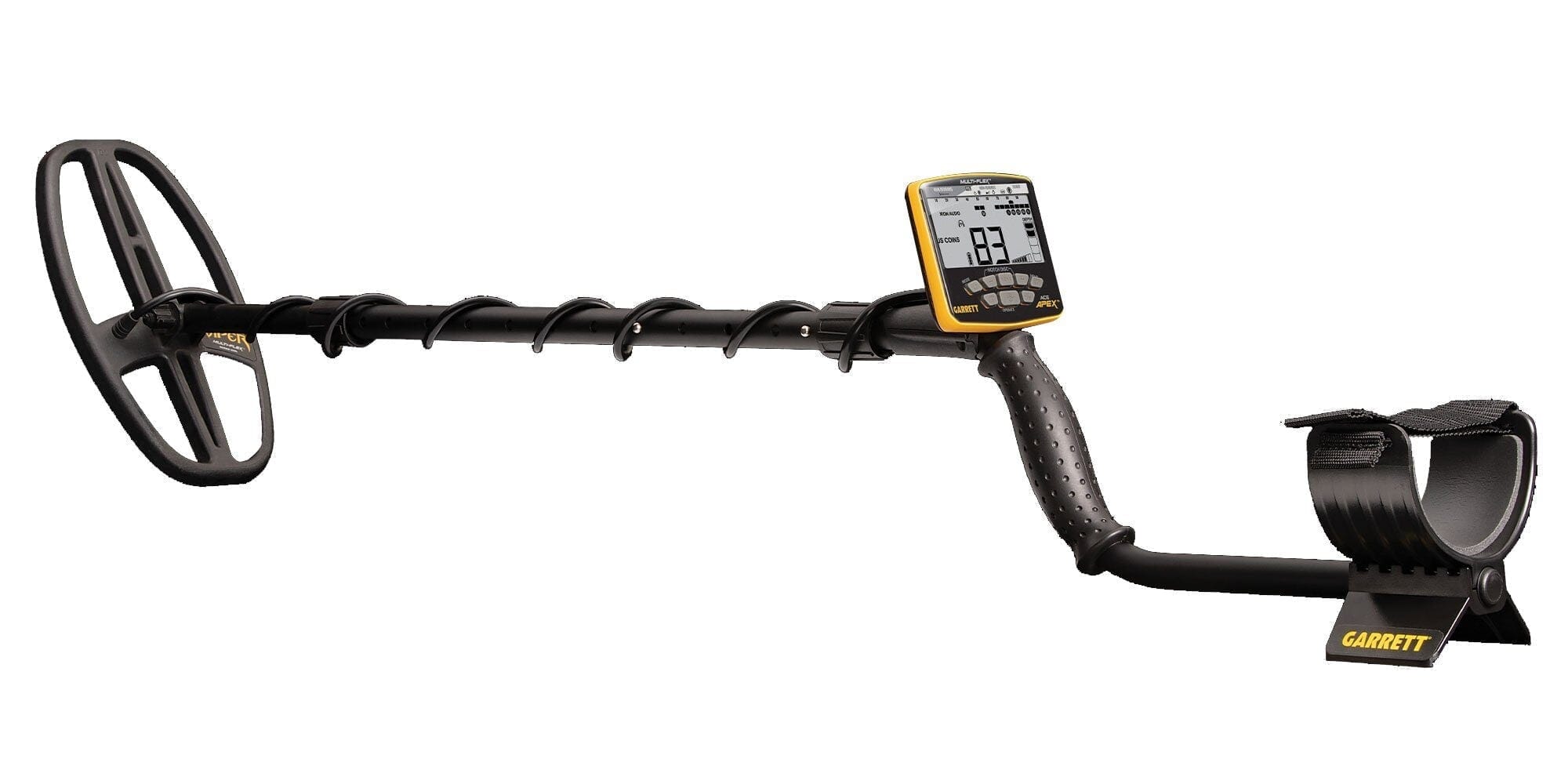

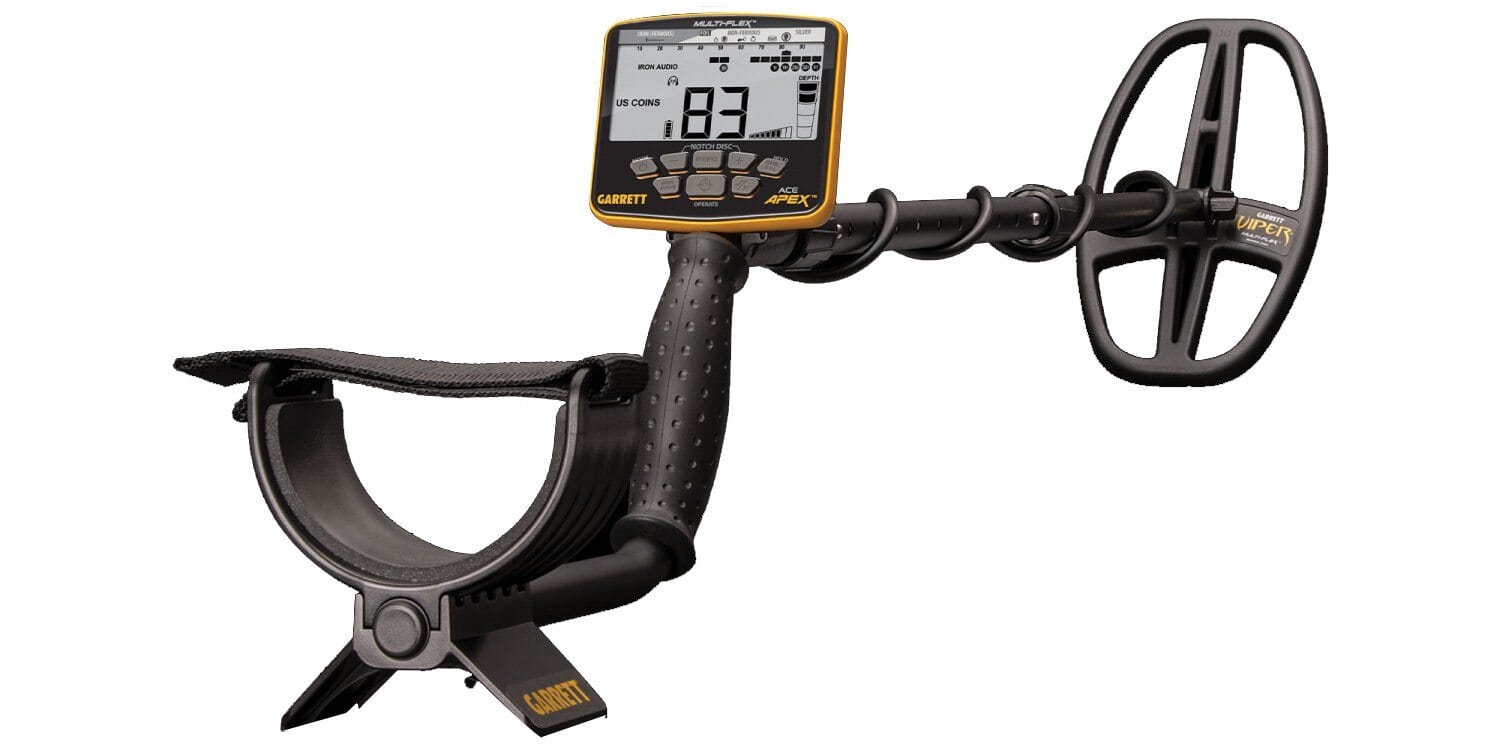

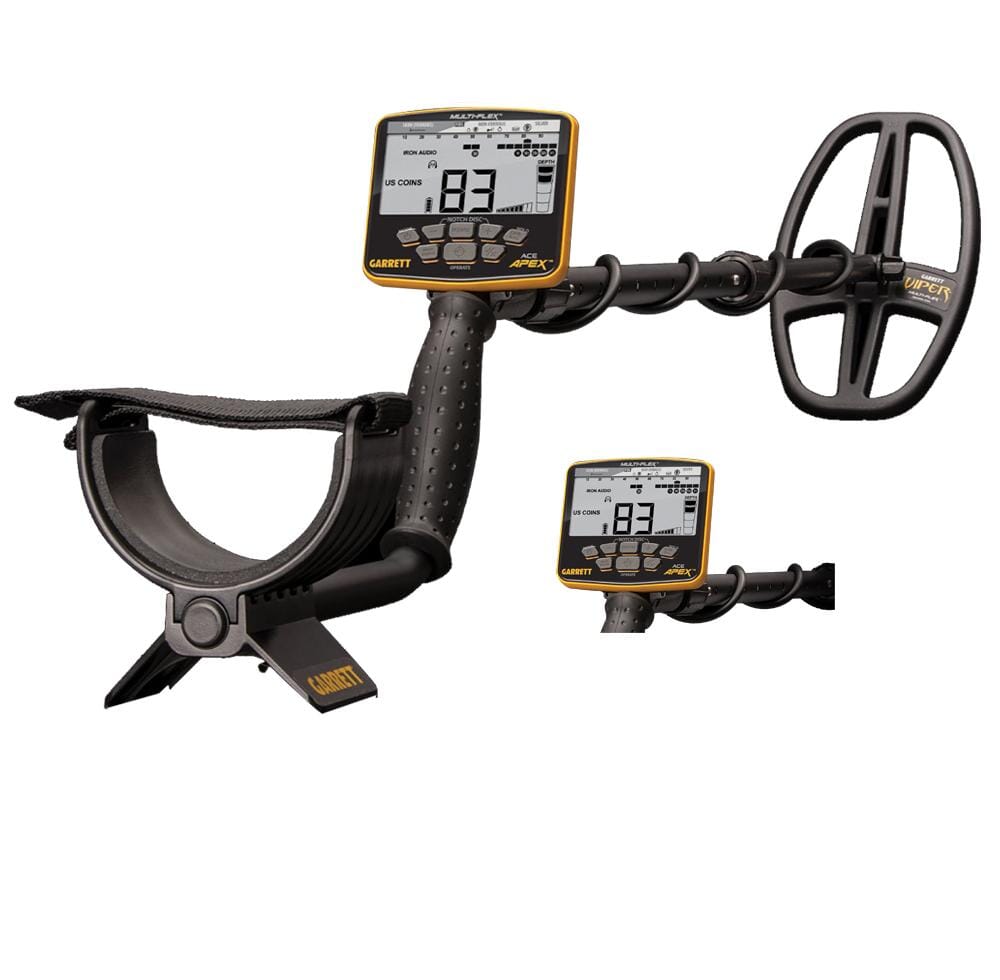

Garrett ACE Apex Metal Detector – Standard Package
The Garrett ACE Apex combines advanced Multi-Flex multi-frequency technology with lightweight construction and simple, direct-access controls. Select from four single frequencies, simultaneous multi-frequency, or Multi-Salt mode to match different targets and ground conditions.
This standard package includes Garrett’s versatile 6" x 11" DD Viper search coil. Headphones are not included, allowing you to use the built-in speaker or add your preferred compatible wired or Garrett Z-Lynk wireless headphones.
Multi-Flex Technology
Choose the operating frequency best suited to your detecting conditions:
5 kHz for larger, high-conductive targets
10 kHz for general-purpose detecting
15 kHz for coins, jewelry, and relics
20 kHz for smaller and lower-conductive targets
Simultaneous Multi-Frequency
Multi-Salt mode for wet salt-sand conditions
Detection Features
Six search modes: Zero, Coins, U.S. Coins, Jewelry, Relics, and Custom
Dedicated pinpoint mode
Large 0–99 digital Target ID
Five-tone audible target identification
Hybrid binary and proportional audio
Iron Audio and adjustable Iron Volume
Twenty selectable discrimination segments
Eight sensitivity and depth adjustments
High-resolution automatic ground balance with 175 points
Backlit LCD screen
Target-depth indicator
Fast target separation and recovery
Built-In Audio Options
Built-in speaker with adjustable volume
Integrated Garrett Z-Lynk wireless technology
Z-Lynk is significantly faster than standard Bluetooth
1/8-inch jack for optional wired headphones
Compatible wired and wireless headphones sold separately

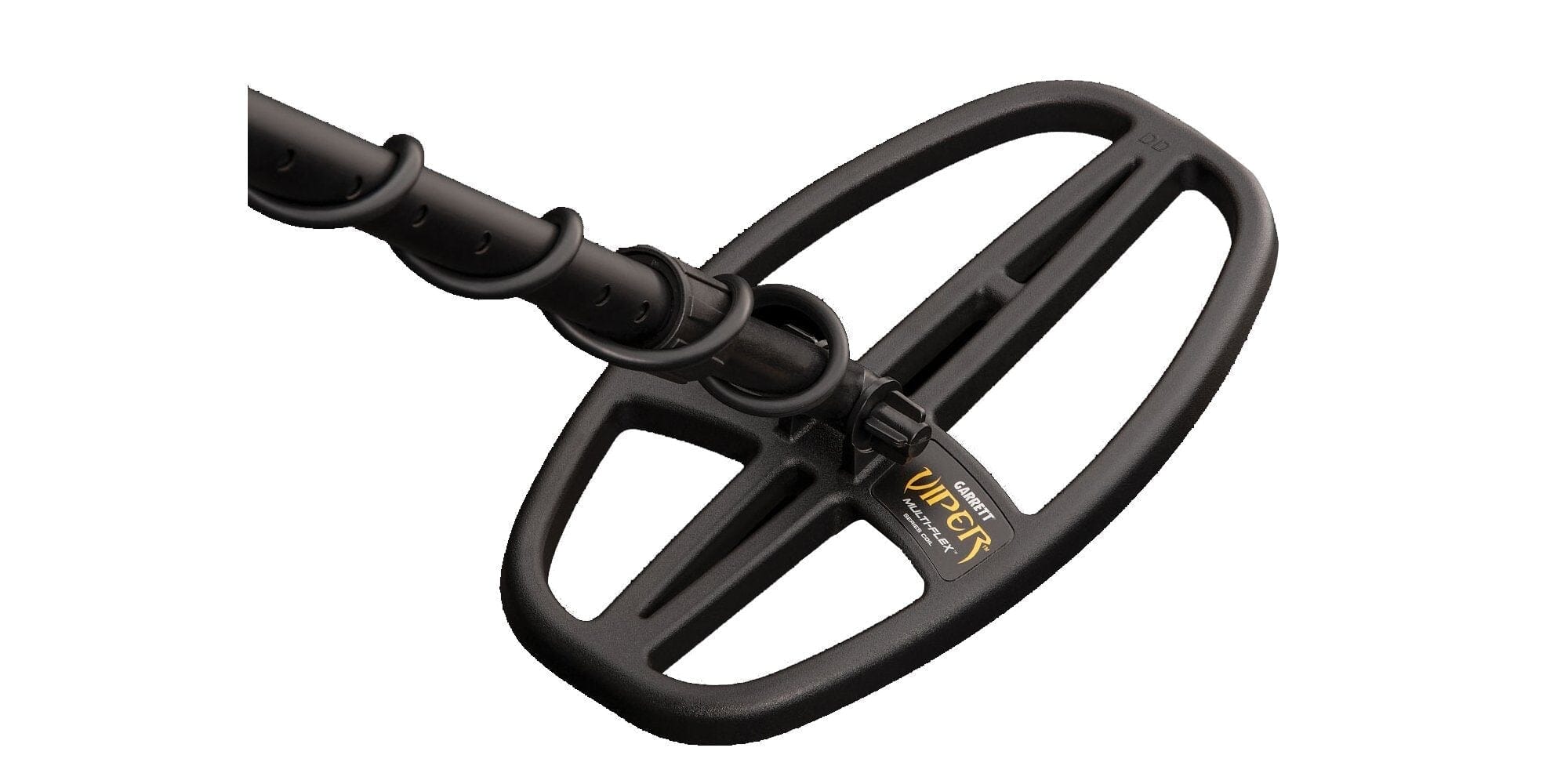

6" x 11" DD Viper Search Coil
The included Viper coil provides an excellent balance of depth, ground coverage, and target separation. Its narrow design maneuvers easily around obstacles and performs well in parks, fields, beaches, and moderately trashy locations.
The Viper search coil and lower shaft are waterproof. The Apex control box is rain-resistant but must not be submerged.
Additional Specifications
Built-in rechargeable lithium-ion battery
Battery life of up to approximately 15 hours
Micro-USB charging
Adjustable length from approximately 40 to 53 inches
Weight: approximately 2.5 pounds
Three-year limited manufacturer’s warranty
Package Includes
Garrett ACE Apex metal detector
Garrett 6" x 11" DD Multi-Flex Viper search coil
Adjustable shaft assembly
Arm cuff and strap
Micro-USB charging cable
Manufacturer documentation
Please note: Headphones are not included with this standard package. The search coil and lower shaft are waterproof, but the control box must not be submerged.
The Garrett Ace Apex Metal Detector is a cutting-edge and highly versatile device designed for treasure hunters, relic seekers, and hobbyist detectorists. Manufactured by Garrett, a renowned name in the metal detecting industry, the Ace Apex combines advanced technology with user-friendly features to deliver exceptional performance in various metal detecting scenarios. Whether you're scouring the beach for lost jewelry, exploring historical sites for artifacts, or simply enjoying the thrill of discovering hidden treasures underground, the Garrett Ace Apex is a reliable and powerful tool that promises to enhance your metal detecting adventures. In this brief overview, we'll delve into the key features and capabilities that make the Garrett Ace Apex a standout choice for both beginners and experienced detectorists.
Click the dropdowns below for exclusive High Plains key features, additional search coils, specifications, and downloads.
Videos
Click down arrow next to titles below for complete information
Overview
Choose from powerful single frequencies to enhance detection on specific targets*, or select one of Apex’s simultaneous multifrequency modes to achieve excellent detection on all targets in all soils.
Fully waterproof, the Viper is a blend of two of Garrett’s most popular DD coils. The 11" size is large enough to cover plowed fields, but its narrow 6" footprint allows easy separation of targets in iron-infested areas.
The Viper is designed as a low-impedance, broad-bandwidth coil to support the new Apex Multi-Flex frequency technology.
Note: As a result of the Multi-Flex coil technology, the Apex Viper coil is not compatible with older ACE detectors. Prior ACE coils are not compatible with an Apex detector. *
Note: lower frequencies generally offer improved detection on larger and more conductive targets (i.e. large silver coins). Higher frequencies generally offer improved detection on smaller and less conductive targets (i.e., hammered silver coins, gold nuggets).
IRON VOLUME:CONTROL WHAT YOU HEAR IRON VOLUME allows user to decrease the volume of iron targets, while the volume of non-ferrous targets remains at normal level.
Experienced treasure hunters often like hearing all targets, but will appreciate the option to decrease volume of undesired items.
With eight Iron Volume adjustments, Apex offers more flexibility than any other detectors in its price range.
EXCELLENT DETECTION DEPTH on a wide variety of targets. >
FAST TARGET RECOVERY SPEED HIGHLY VERSATILE LIGHT WEIGHT Well-Balanced
Only 2.5 Pounds Multi-Flex Multi-Frequency technology makes Apex ideal for coin shooting, relic hunting, shallow water wading, beach hunting, and even prospecting! >
INTUITIVE AND EFFICIENT CONTROLS Direct drive buttons for most frequently used controls. Easy-access menu adjustments for other controls.
SIX DETECTION MODES + PINPOINT Zero, Coins, US Coins (with coin icons), Jewelry, Relics, and CustomHI-RESOLUTION GROUND BALANCE
Available Packages: ACE APEX (Standard Package)Includes Apex metal detector and Viper coil cover.PN: 1142320 ACE APEX WIRELESS PACKAGEIncludes Apex metal detector, MS-3 Z-Lynk wireless headphones, and Viper coil cover. (Big savings over buying MS-3 separately)PN: 1142325Go fully wireless! 175 points of ground balance resolution (like the Garrett AT Max), ranging from ferrous ground to saltwater.
LARGE TARGET ID NUMBERSRECHARGEABLE BATTERY Built-in rechargeable lithium ion battery provides up to approximately 15 hours of use, depending on setting. Micro-USB charging cable included.
IRON AUDIO Garrett’s unique feature helps to correctly identify complex iron objects, such as bottle caps.
5-TONE AUDIBLE TARGET ID Five distinct tones provide greater audible target identification than on Garrett detectors.
HYBRID AUDIO SYSTEM The Apex target audio provides the simplicity of binary audio (found on existing ACE detectors) with the additional benefits of subtle proportional audio for faint targets.
HI-RESOLUTION DISCRIMINATION Twenty pixels of Notch Discrimination, including 8 pixels of Iron.

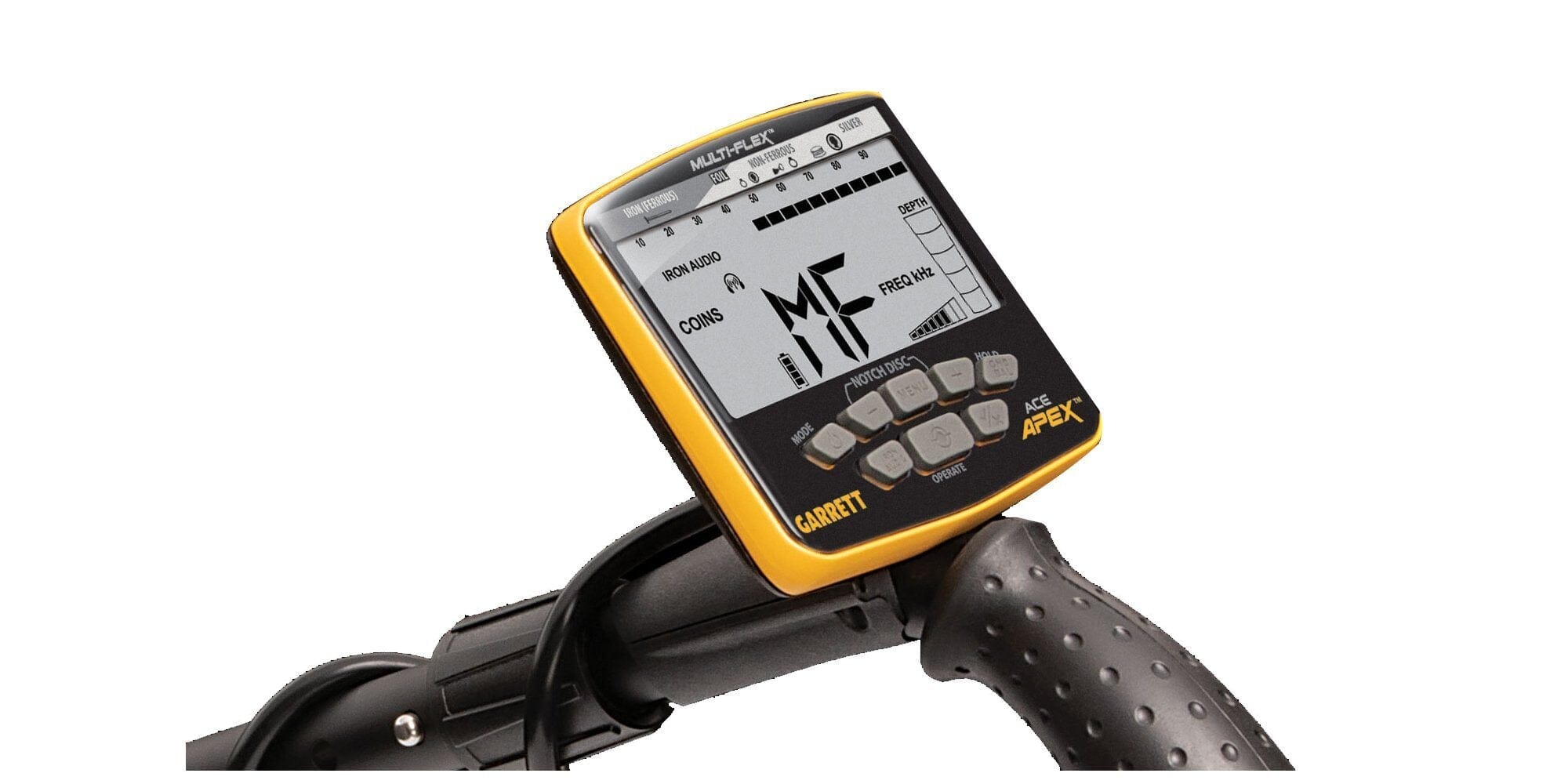

BACKLIT LCDVOLUME CONTROL For both the built-in speaker and headphones.
EIGHT SENSITIVITY/DEPTH ADJUSTMENTS 1/8” JACK for optional wired headphones
BUILT-IN Z-LYNK WIRELESS TECHNOLOGY Up to 6 times faster than Bluetooth. Hunt without the cords!
Specifications
Multi-Flex™ Technology: ✔
Single Frequency Options: 5, 10, 15 and 20 kHz
Multi-Frequency Options: Simultaneous Multi-Freq. and Multi-Salt
Z-Lynk™ Wireless Technology: ✔
Fast Target Separation/Recovery: ✔
1/8" Headphone jack: ✔
Backlight: ✔
Iron Audio: ✔
Iron Volume Control: ✔
Iron Discrimination Segments: 8
Volume Adjustment: ✔ (Built-in)
Notch Discrimination: 20
selectable segments
Search Modes: 6, with International and U.S. Coins modes
Large Digital Target ID: 0 to 99 scale
Sensitivity/ Depth Adjustments: 8
Ground Balance, Auto/Manual: Auto, High Resolution, 175 pts
Pinpoint: ✔
Waterproof coil/stem: ✔
Rainproof control box: ✔
Audio Tone ID Levels: 5
tones included with hybrid binary and proportional audio system
