Deluxe K&M Rock Crusher Vacuum Attachment for 11" and 14" Crushers

Control Crusher Dust and Separate Valuable Material Before It Reaches Your Shop Vacuum

The Deluxe K&M Rock Crusher Vacuum Attachment System connects an 11-inch or 14-inch K&M Krusher to a compatible shop vacuum. The included Dust Deputy 2.5 cyclone system separates crushed material and fine dust into a heavy-duty collection bucket before the airflow reaches the vacuum filter.

This system helps reduce airborne dust, maintain vacuum suction, minimize clogged filters, and simplify the collection of finely crushed ore for further processing.

Key Features

• Compatible with both 11" and 14" K&M Krushers

• Connects to the crusher’s discharge opening

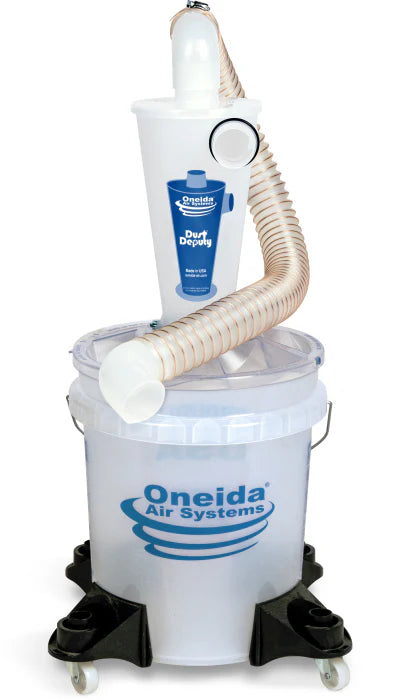

• Includes the Dust Deputy 2.5 Deluxe cyclone system

• Separates more than 99% of fine dust and bulk debris before it reaches the vacuum filter

• Helps reduce suction loss caused by clogged filters

• Clear cyclone components make it easier to monitor material collection

• Heavy-duty bucket resists collapsing under vacuum pressure

• Quick-release lid allows easier emptying

• Caster-mounted base provides stability and portability

• Flexible, wire-reinforced polyurethane vacuum hose

• Anti-static components help reduce static shocks

Installation

Slide the K&M vacuum attachment completely onto the crusher’s discharge opening. Secure it using the included 5/16" bolt and locknut. Connect a compatible vacuum hose from the crusher attachment to the Dust Deputy cyclone, then connect the cyclone outlet to your shop vacuum.

Compatibility

• K&M 11" rock and ore crushers

• K&M 14" rock and ore crushers

• Shop vacuums using compatible 1.5" to 2.5" hose connections

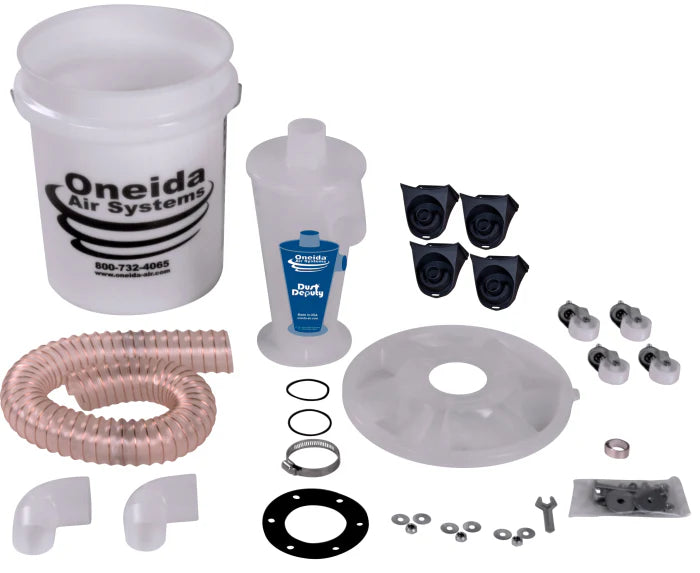

Package Includes

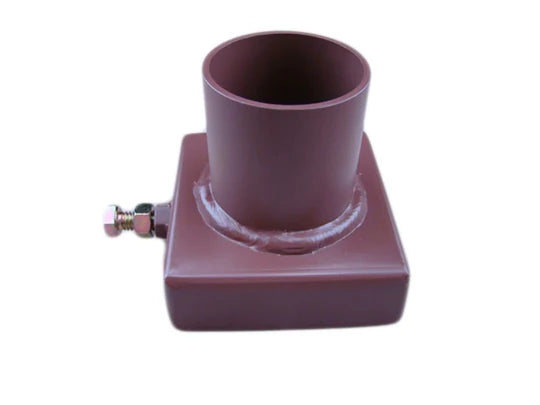

• K&M crusher vacuum-port attachment

• 5/16" mounting bolt and locknut

• Dust Deputy 2.5 cyclone separator

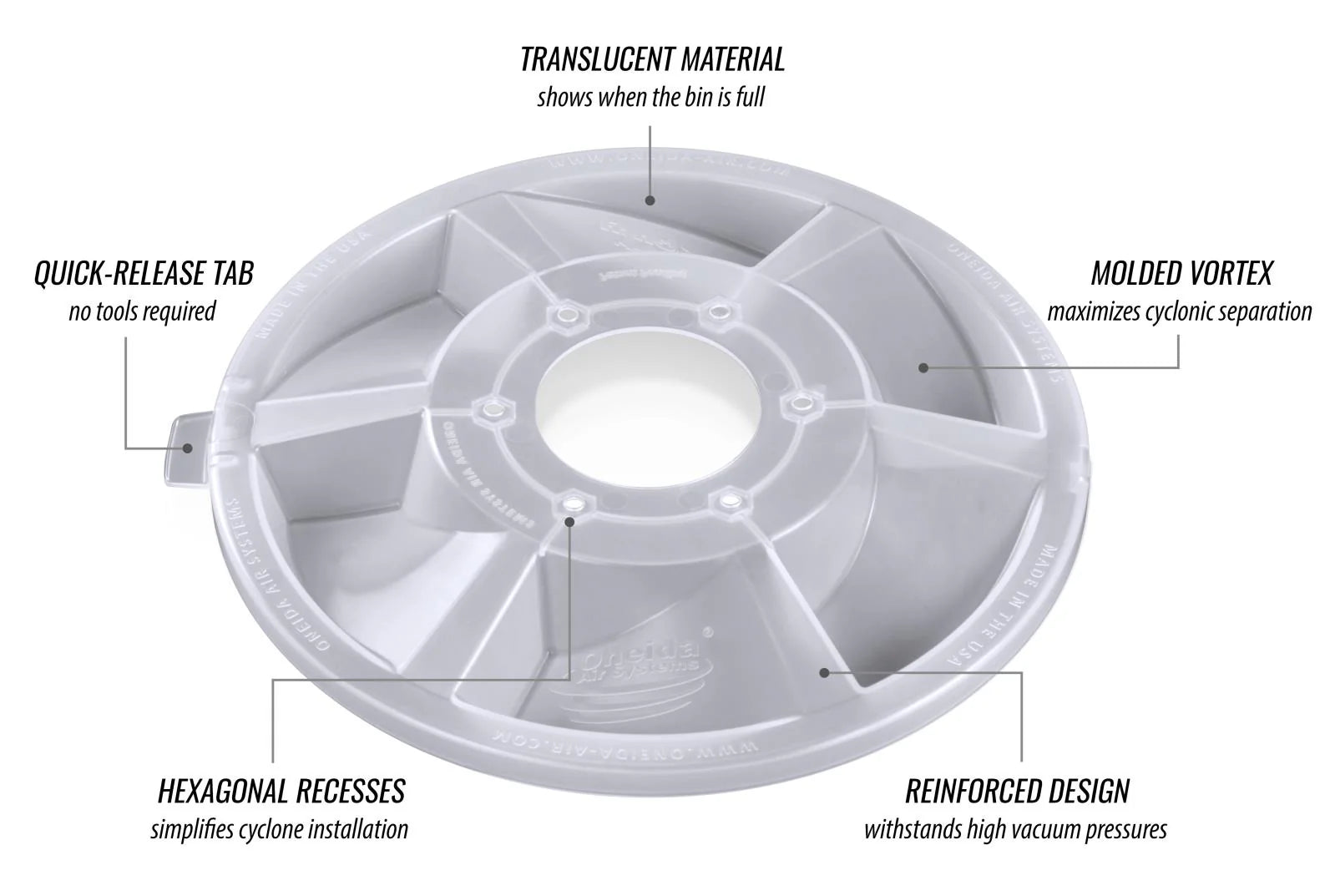

• Reinforced quick-release cyclone lid

• Heavy-duty 5-gallon collection bucket

• Caster-mounted stabilizing base

• Flexible wire-reinforced vacuum hose

• Connection components supplied with the Dust Deputy Deluxe kit

SKU

• KM-VAC-Attach-Deluxe

Important: K&M rock crusher and shop vacuum are not included. Crushing rock can produce hazardous silica-containing dust. Always operate the crusher in a well-ventilated area and use suitable respiratory, eye, hearing, and other personal protective equipment.

This Vacuum attachment is designed and compatible for 11" & 14" K&M Krushers. Its to be attached to the exit port of the crusher then attach a 2-1/8" hose to the round exit port and then attach to your Shop Vac or if you are using a Dust Deputy Cyclone (Official Oneida Products) to the side port or opening of the Cyclone. To attach the Vacuum Port, slide it completely up on the crusher then tighten the 5/16" bolt provided and lock it down with the 5/16" nut. (Bolt & Nut is included) With this purchase we also include the NEW 2.5 Dust Deputy Deluxe Kit. Please see details below Dust Deputy® 2.5
