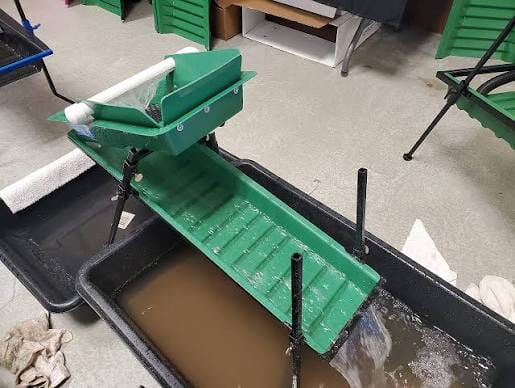

GeoSluice California Mini High Banker with Stand and 1,100 GPH Pump

Process more gold-bearing material without hauling a full-size highbanker into the field. The GeoSluice California Mini High Banker combines a lightweight nine-pound design with adjustable legs, an adjustable spray bar, and GeoSluice’s efficient drop-riffle recovery system.

The compact design is easy to transport, set up, operate, and clean. It is an excellent choice for creek prospecting, remote locations, concentrate processing, sampling, and recirculating setups where portability matters.

Lightweight, Portable Gold-Recovery System

Weighing approximately nine pounds with the stand and pump, the California Mini High Banker delivers a useful balance of portability and processing capability. Its compact size makes it easier to carry into locations where a larger highbanker would be difficult to transport.

The adjustable legs help establish the correct sluice angle on uneven ground, while the adjustable upper section lets you fine-tune the spray-bar position and water action for the material being processed.

GeoSluice Drop-Riffle Recovery

The molded drop-riffle sluice uses gravity and water flow to separate heavier gold from lighter sand and gravel. The recessed riffles create low-pressure capture zones that allow gold to settle while lighter material continues through the sluice.

Unlike traditional carpet-and-expanded-metal systems, the molded drop-riffle design has fewer loose components to remove during cleanup. This makes inspecting and rinsing captured material faster and more convenient.

Key Features

• Complete compact highbanker system

• Weighs approximately nine pounds with stand and pump

• GeoSluice molded drop-riffle recovery system

• Designed to capture both fine and larger gold

• Adjustable spray-bar angle

• Removable spray bar for easier cleaning

• Adjustable legs for slope and stability

• Compact, streamlined design

• Lightweight and easy to transport

• Fast setup and cleanup

• Includes a powerful 1,100 GPH water pump

• Available in green or blue

• Suitable for streamside and recirculating operation

Adjustable Water and Slope Control

Successful highbanking depends on establishing the correct relationship between water flow, sluice angle, material size, and feed rate. The adjustable legs allow the sluice angle to be changed, while the adjustable spray bar helps direct water into the hopper.

Begin with a moderate slope and feed material gradually. Adjust the angle and water flow until lighter material clears the sluice while black sand and other heavy material remain active in the drop-riffle capture zones.

Easy Cleanup

When processing is complete:

1. Stop the pump and allow the water to drain.

2. Remove the spray bar if needed.

3. Carefully rinse the drop-riffle sluice into a cleanup pan or container.

4. Pan or process the recovered concentrates to separate the gold.

The molded drop-riffle design eliminates the need to remove and clean traditional carpet, expanded metal, and individual riffle components.

What’s Included

• GeoSluice California Mini High Banker

• Adjustable stand and legs

• Adjustable, removable spray bar

• 1,100 GPH water pump

A recirculating tub, collection bucket, power source, and other items not specifically listed above are not included.

Product Specifications

• Brand: GeoSluice

• Model: California Mini High Banker

• Product type: Portable gold highbanker

• Recovery system: Molded drop riffles

• Approximate system weight: 9 pounds with stand and pump

• Pump capacity: 1,100 gallons per hour

• Spray bar: Adjustable and removable

• Legs: Adjustable

• Available colors: Green and blue

• Intended use: Gold-bearing gravel, sand, classified material, and concentrates

• Power source included: No

• Recirculating tub included: No

Ideal For

• Recreational gold prospectors

• Backpack and remote-location prospecting

• Creek and river operations

• Recirculating highbanker setups

• Processing concentrates

• Testing potential gold-bearing locations

• Prospectors wanting a lightweight alternative to a full-size highbanker

Drop-Ship Processing Notice

This product ships from the manufacturer. Please allow approximately three to five business days before tracking information becomes available. Transit time begins after the manufacturer processes the order and may vary by destination.

Take efficient drop-riffle gold recovery into the field with the lightweight and easy-to-use GeoSluice California Mini High Banker.

Weighing only 9 lbs. including stand and pump, the lightweight California Mini High Banker makes gold prospecting enjoyable and convenient. Its streamlined design, compact size, and efficient DROP RIFFLE SLUICE DESIGN ensure productivity and exceptional gold recovery. The adjustable upper section allows for an adjustable spray bar angle, and adjustable legs provide stability. Plus, the unit's 1,100 GPH pump is powerful and easy to use. Choose between green and blue options.
