A52S Sluice Conversion - Transform You A52S Into a Highbanker or Mini Max (No Pump, Hoses)

Keene A52S Highbanker & Mini Max Conversion Kit—No Pump or Hose

Convert your existing Keene A52S Super Sluice into a powered highbanker or Mini Max-style recovery system. The A52SMMKIT2 conversion kit includes the hopper, classification screens, grizzly, and sluice end cap needed for the conversion while allowing you to supply your own compatible pump and plumbing.

It is an excellent option for A52S owners who already have a suitable 12-volt pump, hose, and flow-control valve—or who want to customize the water system for a particular field or recirculating setup.

Expand Your A52S System

With the conversion components installed, the A52S can process material using a controlled water supply rather than relying entirely on natural stream flow. This makes the sluice more versatile in low-water conditions and suitable for recirculating operation at home or camp.

Remove the conversion components when you want to return the A52S to its original stream-sluice configuration.

Key Features

• Converts an existing Keene A52S into a powered highbanker

• Creates a Mini Max-style recovery system

• Suitable for low-water prospecting conditions

• Can be used in a recirculating setup

• Hopper directs material into the sluice

• Grizzly removes oversized rocks

• Woven screens provide additional classification

• Installs and removes in minutes

• Lets you select your preferred pump and plumbing

• Made in the USA by Keene Engineering

Kit Includes

• Highbanker hopper

• Grizzly classifier

• Woven classification screens

• Sluice end cap

• Required conversion components

Not Included

• Keene A52S sluice box

• Water pump

• Pump hose

• Ball valve or flow-control valve

• Hose fittings

• 12-volt battery or power source

• Water reservoir

• Tailings container

This listing is for the A52SMMKIT2 conversion components only.

Specifications

• Compatible sluice: Keene A52S Super Sluice

• Manufacturer part number: A52SMMKIT2

• Conversion-kit weight: Approximately 8 pounds

• Pump system: Customer-supplied

• Intended configurations: Highbanker or Mini Max-style power sluice

• Country of manufacture: USA

Full Kit vs. Conversion-Only Kit

The A52SMMKIT2 is intended for customers who already have compatible pumping equipment.

• A52SMMKIT2: Hopper, grizzly, woven screens, and sluice end cap

• A52SMMKIT1 Full Kit: Conversion components plus pump, hose, and ball valve

Choose the full A52SMMKIT1 package if you also need the water-supply components.

Pump and Plumbing Requirements

A compatible water pump, hose, fittings, and flow-control valve must be added before this conversion can operate as a highbanker or powered sluice.

Select a pump that provides appropriate water flow for the A52S conversion. When using a 12-volt pump, match the battery, wiring, fuse protection, and connectors to the pump manufacturer’s requirements. Never operate a pump dry.

Recirculating Operation

For recirculating use, position the pump in an adequately sized water reservoir and direct the sluice discharge into a tailings container or settling area. Prevent sediment from returning directly to the pump, as accumulated sand and gravel can restrict water flow or damage the pump.

Monitor water level, sediment buildup, sluice angle, and flow throughout operation.

Setup Tips

• Securely install the hopper and sluice end cap.

• Position the A52S on stable ground.

• Adjust the sluice to a consistent downward pitch.

• Connect the customer-supplied pump, hose, and valve.

• Begin with moderate water flow.

• Classify material to a consistent size when possible.

• Feed material gradually rather than overwhelming the hopper.

• Adjust flow and angle until lighter material clears the recovery section.

Ideal For

• Existing Keene A52S owners

• Customers who already own a compatible pump

• Customized highbanker builds

• Low-water prospecting

• Paydirt and concentrate processing

• Home or camp recirculating systems

• Prospectors who want multiple configurations from one sluice

The World Famous Keene A52S does it all. Not only is it the best sluice box on the market today, it now converts into a Mini Max Style Sluice box system utilizing a 12-volt pump system. This versatile package performs extremely well in all conditions. Now with the Mini Max upgrade, you can run in low water conditions and be “Silent Running”. The battery powered pumps makes it ideal for setting up at home or in camp with a water recirculating system. Made in the USA. Converts back and forth between a concentrator, dredge or high banker and Mini Max in a matter of minutes.

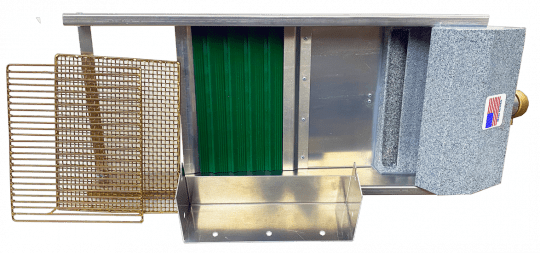

This Conversion Kit contains sluice end cap, hopper, grizzly and woven screens. Net weight 8 pounds.
