Steve's Minelab Equinox 600/800 Carbon-Fiber Upper Shaft – Multiple Color Options

Upgrade Your Equinox with Premium Carbon Fiber, Improved Stability, and a Custom Look!

Give your Minelab Equinox 600 or 800 a serious upgrade with Steve's Detector Rods Carbon-Fiber Upper Shaft.

Designed to replace both the original upper and middle shaft sections, this premium one-piece carbon-fiber shaft delivers a more streamlined setup with a secure, adjustable cam-lock system.

Whether you're searching for old silver coins, historic relics, lost jewelry, or gold nuggets, Steve's carbon-fiber shaft provides a durable, lightweight upgrade for your favorite detector.

IMPORTANT: This listing is for the UPPER SHAFT ONLY. The lower rod, search coil, detector, and counterweight system are NOT included. This standard version is not counterweight-ready.

Key Features & Benefits

• Premium 3K Carbon Fiber: High-quality carbon-fiber tubing with an attractive glossy twill-weave finish.

• One-Piece Upper Shaft: Replaces the factory upper and middle shaft sections, eliminating the connection between them.

• Heavy-Duty Cam Lock: Adjustable nylon clamping mechanism securely holds the lower rod in position.

• Helps Reduce Shaft Wobble: Rigid construction and secure clamping provide improved shaft stability.

• Precise Length Adjustment: Adjust the lower rod's extension without being limited to preset spring-button positions.

• Lightweight Construction: Weighs approximately 4.81 ounces (136 grams).

• Factory-Positioned Mounting Holes: Four arm-cuff adjustment holes and one control-box mounting hole match the original Equinox locations.

• Protective Rear End Cap: Rubber end cap finishes the shaft and protects its open end.

• Multiple Color Options: Customize the appearance of your Equinox with a variety of carbon-fiber finishes.

• Made for Equinox 600/800: Designed specifically around these popular Minelab detectors.

Why Upgrade Your Equinox Shaft?

1. Say Goodbye to Unwanted Shaft Movement

One of the most common complaints about telescoping detector shafts is unwanted movement between the sections.

Steve's carbon-fiber upper shaft uses a heavy-duty adjustable cam lock to hold the lower rod securely.

Combined with the rigid one-piece upper design, this helps create a stable detecting setup.

2. Enjoy More Precise Shaft Adjustments

Traditional spring-button shafts limit adjustments to predetermined hole positions.

Steve's cam-lock system allows you to position the lower rod anywhere within its usable adjustment range, then clamp it securely in place.

This makes it easier to fine-tune your detector's length to match your height, arm position, and preferred swinging style.

3. Premium Carbon Fiber Without Replacing Everything

You don't have to purchase an entirely new detector shaft assembly to enjoy the benefits of carbon fiber.

This upper shaft replaces the original Equinox upper and middle sections while allowing you to use a compatible lower rod.

It's a practical option for detectorists who want to upgrade their existing equipment one component at a time.

4. Customize Your Detector

Steve's carbon-fiber shafts are available in several attractive colors and woven finishes.

Whether you prefer classic black or a brighter custom appearance, these shafts offer a great way to personalize your Equinox.

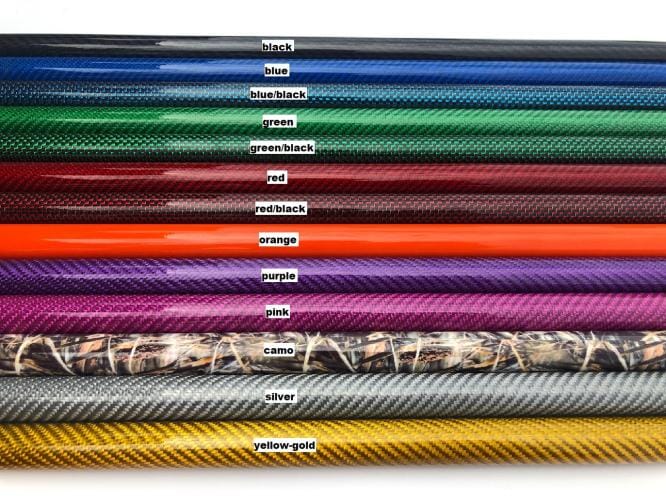

Available Color Options

• Black

• Orange

• Red

• Red/Black

• Green

• Green/Black

• Blue

• Blue/Black

• Gold

• Silver

Select your preferred color from the available product variants.

Compatibility

Designed for:

• Minelab Equinox 600

• Minelab Equinox 800

• Compatible factory Equinox 600/800 lower rods

• Compatible Steve's Detector Rods Equinox 600/800 lower rods

Not designed for: Minelab Equinox 700, Equinox 900, Manticore, or X-Terra models.

Technical Specifications

What's Included?

• 1 × Steve's carbon-fiber upper shaft in your selected color

• 1 × Installed adjustable cam lock

• 1 × Protective rear end cap

What's NOT Included?

• Lower detector rod

• Metal detector or control box

• Arm cuff

• Search coil

• Counterweight or counterweight attachment

• Other detecting accessories

A Premium Upgrade for Your Minelab Equinox

Whether you're replacing a worn factory shaft or building a custom carbon-fiber setup, Steve's Equinox 600/800 Upper Shaft offers a combination of quality construction, convenient adjustments, and improved stability.

Less wobble. Better adjustments. Premium carbon-fiber style.

Upgrade your Minelab Equinox 600 or 800 with Steve's Detector Rods from High Plains Prospectors!

Steve's standard upper shaft for the Minelab Equinox includes 4 cuff-adjustment holes, and one hole for the control-box handle (in the same positions as the stock Minelab shaft). The shaft also includes a heavy duty, adjustable, removable clamping cam lock, and a rubber end cap.

• Shaft Length: 34 7/8 in.
• Shaft Weight: 4.81 oz. (136 g)
• Material: Carbon-fiber (3K, twill pattern, glossy finish)
• Cam Lock material: Injection-molded Plastic (nylon)
• End Cap Material: Rubber
