SPX FLOW Johnson Pump Aqua Void 800 GPH 12V Bilge Pump

Compact Cartridge Pump for Marine Dewatering

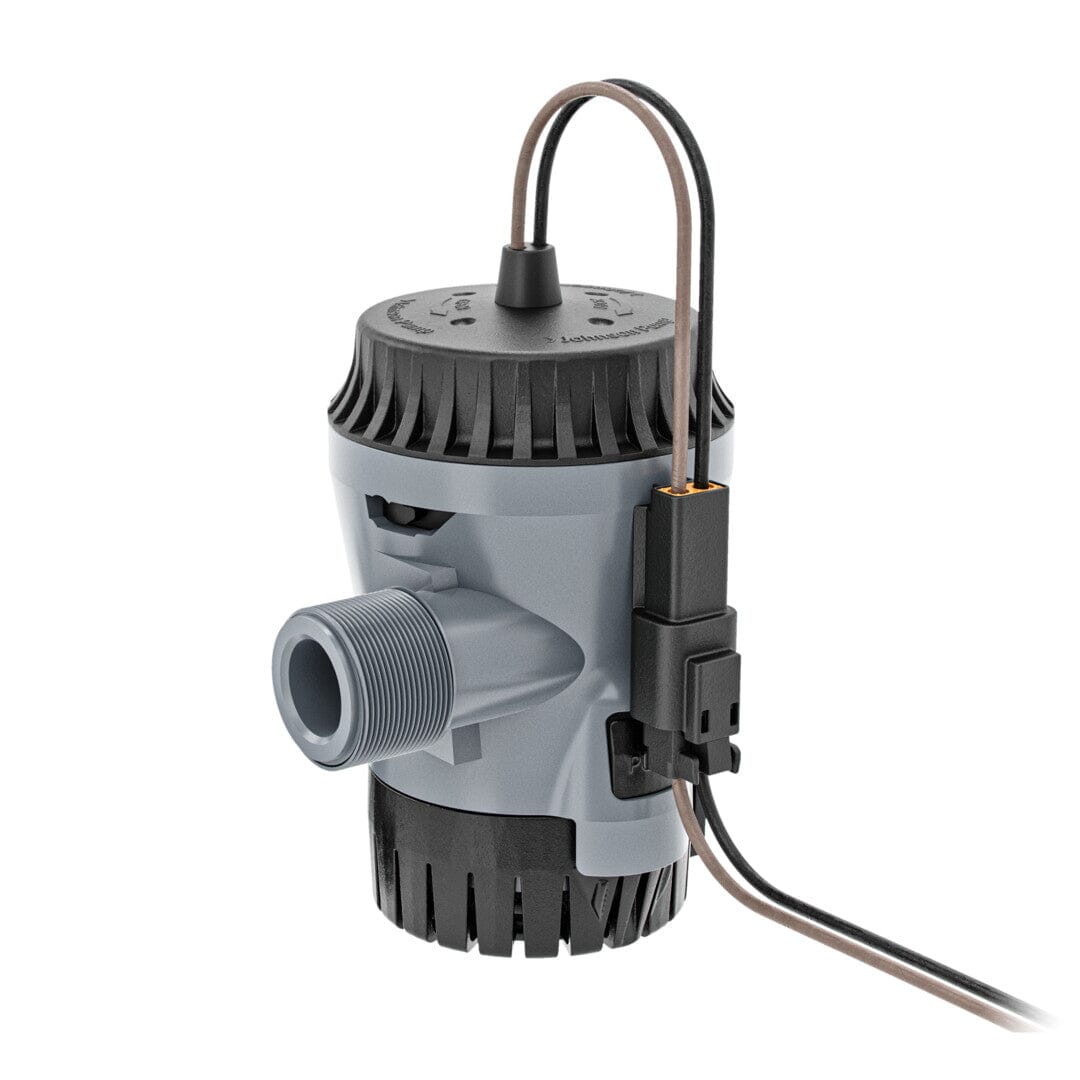

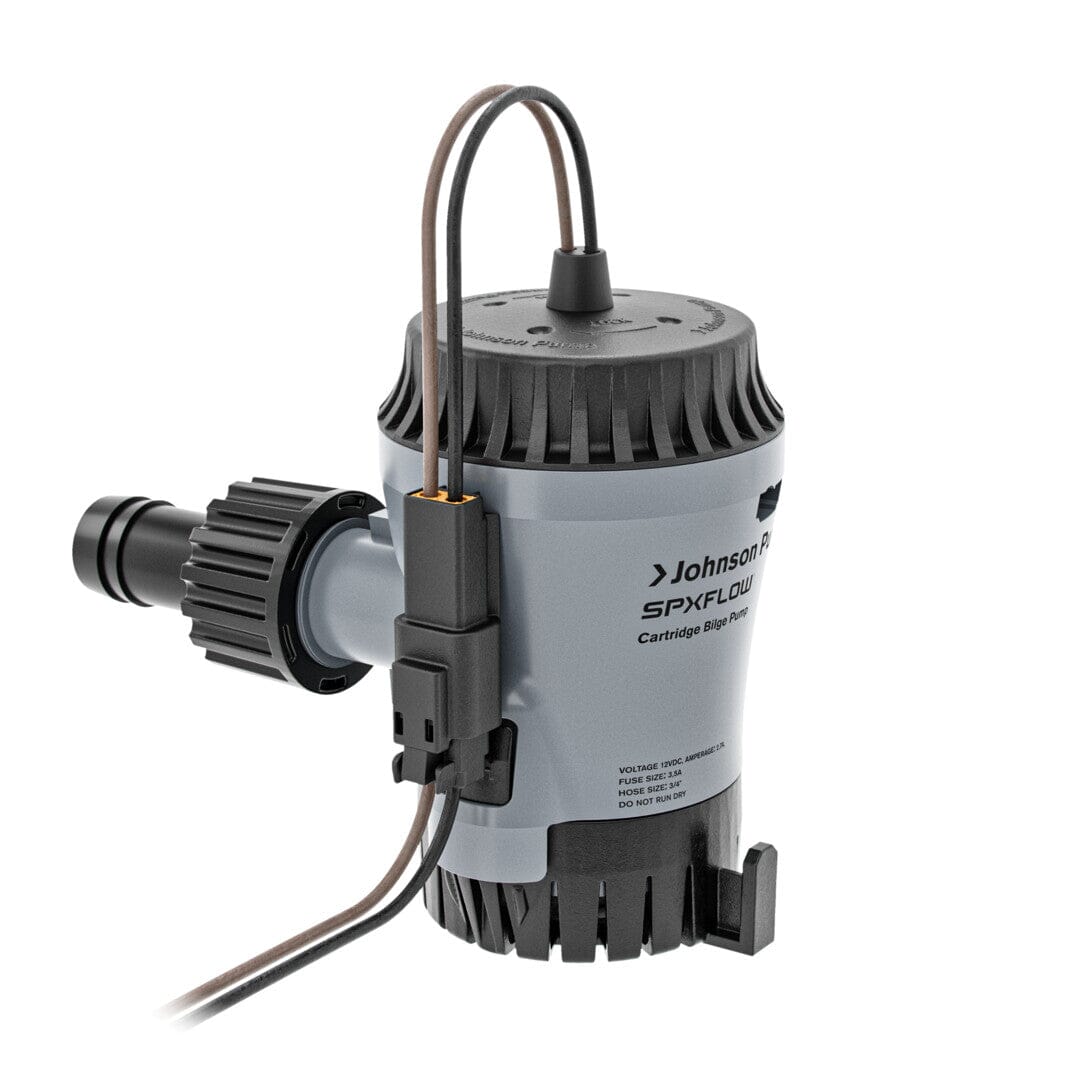

The SPX FLOW Johnson Pump Aqua Void is a compact 12-volt bilge pump rated for up to 800 gallons per hour. Its quick-change cartridge design provides convenient, one-handed access to the motor and impeller, making inspection, cleaning, and replacement easier in confined bilge spaces.

The pump features a water-cooled motor, durable 316 stainless steel shaft, and reinforced mounting basket. Included straight and 90-degree Dura-Port fittings help reduce stress caused by overtightened hose clamps and provide greater installation flexibility.

Features

• Nominal pumping capacity of 800 GPH

• Compact 12V DC cartridge-style bilge pump

• Quick-change motor connection

• Replace or upgrade the cartridge without removing the pump casing

• Water-cooled motor

• High-flow impeller design

• Durable 316 stainless steel motor shaft

• Reinforced click-in mounting basket

• Tool-free pump inspection and maintenance

• Included wiring-harness connection

• Straight and 90-degree Dura-Port discharge fittings

• Removable check valve

• Molded T-slot accepts compatible automatic switches

• Meets ISO 8849 marine electrical standards

• Limited three-year manufacturer warranty

Recommended Uses

Ideal for:

• Recreational boat bilges

• Compact marine dewatering systems

• Lightweight 12V water-transfer applications

• Small cleanup or recirculation systems within the pump’s flow and lift capabilities

• Replacement or new bilge-pump installations

The pump operates manually unless connected to a compatible automatic switch, such as the SPX FLOW AS888, electronic float switch, or Ultima Switch.

Specifications

• Brand: SPX FLOW / Johnson Pump Marine

• Product Line: Aqua Void

• Manufacturer Part Number: 10-13626-05

• Voltage: 12V DC

• Nominal Capacity: 800 GPH

• Width: 2.75 inches

• Height: 4.69 inches

• Length: 5.24 inches

• Weight: Approximately 12.6 ounces

• Motor Shaft: 316 stainless steel

• Compliance: ISO 8849 marine

• Warranty: Limited three-year manufacturer warranty

What’s Included

• Aqua Void 800 GPH 12V pump

• Wiring-harness connector

• Straight Dura-Port fitting

• 90-degree Dura-Port elbow

• Removable check valve

• Reinforced mounting basket

Automatic switch, discharge hose, clamps, fuse, battery, and external wiring are not included unless otherwise stated.

Important Information

The 800 GPH rating is a nominal capacity. Actual output will vary according to discharge height, hose length, restrictions, fittings, and available voltage. Install with properly sized wiring, overcurrent protection, marine-grade electrical connections, and discharge plumbing according to the manufacturer’s instructions.

This pump is intended for water only. Do not use it for fuel, flammable liquids, or potable-water applications.
