Le Trap Sluice Closed Ended Sluice Box

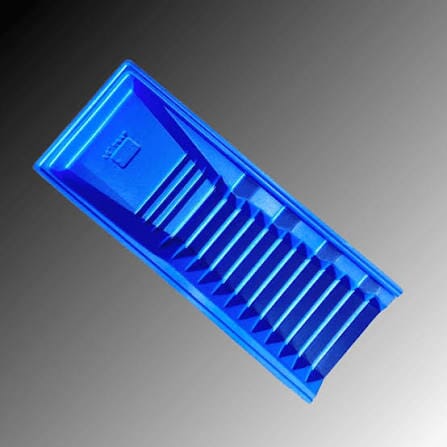

Le’ Trap™ Closed-End Gold Sluice with Spray Bar – Multiple Colors

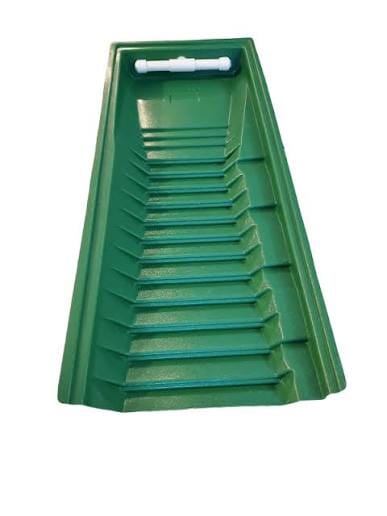

Get efficient, carpet-free gold recovery with the legendary Le’ Trap™ sluice design. This closed-end model features an attached spray bar and flow-control valve, making it ideal for powered recirculating systems, highbanker-style setups and concentrate cleanup.
The molded two-step riffle system captures fine gold without carpet, miner’s moss or removable riffle assemblies. Its lightweight, wear-resistant construction makes the sluice easy to transport, set up and clean.
Made in the USA using the original Le’ Trap molds and proven Canadian design.
Key Features
-
Closed header end for powered or recirculating operation
-
Attached spray bar distributes water across the sluice
-
Integrated valve provides convenient flow adjustment
-
Molded two-step riffles capture fine gold
-
Carpetless design simplifies cleanup
-
No removable riffle tray or miner’s moss required
-
Lightweight and easy to transport
-
Suitable for lower-pressure and faster-flowing water setups
-
Made in the USA from the original Le’ Trap molds
-
Available in multiple colors
Specifications
-
Brand: GeoSluice
-
Model: Le’ Trap™ Closed-End Spray-Bar Sluice
-
Length: 40 inches
-
Width: 16 inches
-
Weight: Approximately 4 pounds
-
Configuration: Closed end
-
Recovery surface: Integrated molded two-step riffles
-
Water distribution: Attached spray bar
-
Flow control: Integrated valve
-
Available colors: Green, blue and pink
-
Country of manufacture: USA
Ideal For
-
Recirculating gold recovery systems
-
Powered sluice configurations
-
Highbanker-style setups
-
Fine-gold recovery
-
Processing classified material
-
Cleaning concentrates
-
Prospectors who prefer a carpetless sluice
Package Includes
Pump, supply hose, fittings, battery or power source, stand, legs and recirculating tub are not included unless specifically selected or stated elsewhere.
Basic Setup
Support the sluice securely at a suitable operating angle and connect the spray bar to a compatible water supply. Begin with moderate water flow, then use the valve to adjust the flow until material moves evenly through the molded riffles without washing valuable heavies out of the recovery zones.
Feed classified material gradually and evenly for the best recovery. To clean the sluice, stop the water, tilt the unit and rinse the captured concentrates into a suitable container.
Choosing the Correct Version
This is the closed-ended model with an attached spray bar, designed for powered or recirculating use. Prospectors seeking a traditional in-stream configuration should select the open-ended Le’ Trap sluice sold separately.

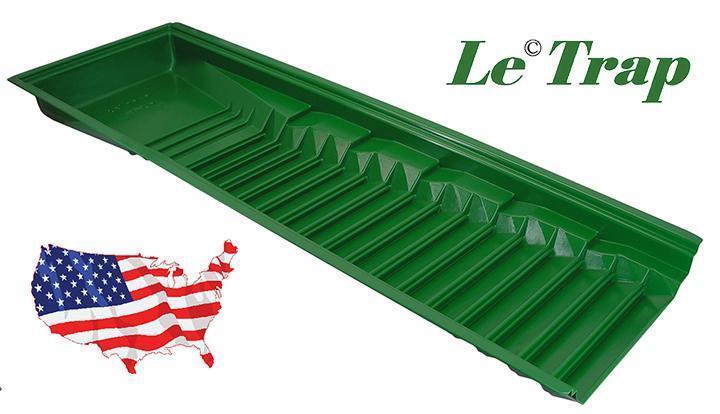

The le Trap sluice is made of light weight wear-resistant green plastic. 16 inches wide and 40 inches long but weighs only 4 pounds. The sluice box riffles are designed with a two-step ramp which allows the sluice to recover fine gold without vibrating or the use of a carpet liner. Designed and manufactured in Canada for decades it is now made in the USA from the original molds. This is the high banker version with a closed end at the header. Open ended stream sluice is available.
