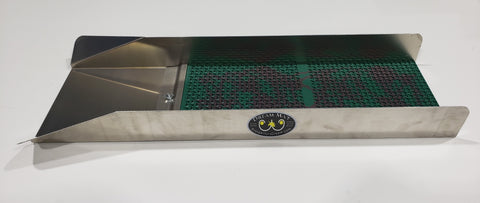

10″ x 35″ Big Foot Sluice with Micro Dream Mat

Recover exceptionally fine gold with the 10″ x 35″ Big Foot Sluice with Micro Dream Mat. This compact stream sluice combines a sturdy 16-gauge aluminum sluice body with Prospectors Dream’s specialized Micro Dream Mat, creating a portable recovery system designed for fine placer gold, beach concentrates and finishing applications.

The Micro Dream Mat uses a tightly spaced vortex-cell profile to separate fine gold from lighter material while producing a relatively small amount of concentrates. Its front-row capture provides immediate visual feedback, helping prospectors recognize gold-bearing material as soon as it enters the recovery zone.

The shorter Big Foot design is easier to position at the proper slope, fits more conveniently with your prospecting equipment and delivers a full 10-inch-wide recovery surface in a compact 35-inch sluice.

Key Features

• Micro Dream Mat recovery system: Specialized profile designed for extremely fine and flour-gold recovery

• Front-row gold capture: Allows prospectors to quickly identify productive material

• Vortex-cell technology: Uses controlled water action to separate heavy gold from lighter material

• Reduced concentrates: Tight Micro Mat profile helps minimize the material remaining for final cleanup

• Compact Big Foot design: Shorter body makes achieving the proper slope and water flow easier

• 16-gauge aluminum construction: Provides a sturdy yet portable sluice platform

• Wing-nut pressure clamp: Holds the mat in position while allowing convenient removal for cleanup

• Versatile performance: Works across high, steep and lower-flow operating conditions

• Easy cleanup: Remove the mat and rinse the captured concentrates into a pan or cleanup tub

• Portable size: Convenient for creek, beach and mobile prospecting applications

Benefits

• Excellent recovery of extremely fine and flour gold

• Especially useful in sandy material and beach deposits

• Creates fewer concentrates for faster final cleanup

• Compact enough for mobile and backpack prospecting

• Easy to position in suitable stream flow

• No traditional riffles, expanded metal or miner’s moss to disassemble

• Front-row capture helps locate productive pay streaks

• Suitable for stream sluicing, sampling and concentrate finishing

• Flexible mat is easy to remove, rinse and reinstall

Ideal For

• Fine and flour-gold recovery

• Beach and sand prospecting

• Creek and river sluicing

• Processing classified material

• Testing potential pay streaks

• Final concentrate reduction

• Low-volume cleanup applications

• Backpack and mobile prospecting

• Beginning and experienced gold prospectors

Specifications

• Product type: Portable gold prospecting sluice

• Series: Big Foot

• Sluice material: 16-gauge aluminum

• Sluice width: 10 inches

• Sluice length: Approximately 35 inches

• Recovery mat: Prospectors Dream Micro Dream Mat

• Mat profile: Micro vortex-cell profile

• Mat material: Flexible molded recovery mat

• Mat retention: Wing-nut pressure clamp

• Primary application: Fine-gold recovery

• Power requirement: Natural stream flow

• Mat color: May vary

Dimensions

• Sluice box: Approximately 10″ wide x 35″ long

• Micro Dream Mat: Approximately 10″ wide x 24″ long

• Mat length note: Molded mat dimensions are approximate and may vary slightly

What’s Included

• 10″ x 35″ Big Foot aluminum sluice box

• Approximately 10″ x 24″ Micro Dream Mat

• Mat-retention pressure clamp

Pump, hose, stand, legs, header box, battery and recirculating tub are not included.

Recommended Operation

Position the sluice securely in a suitable section of moving water. Adjust the angle and water flow until the Micro Mat cells remain active and exchange lighter material without becoming packed.

For the best fine-gold performance, classify oversized rocks, break apart clay and feed material gradually across the width of the sluice. Because the Micro profile is intended for fine-gold recovery, controlled feed rates and properly prepared material will generally provide better results than overloading the mat with large, unclassified gravel.

Fast Cleanup

Stop feeding material and allow the remaining light material to clear. Release the pressure clamp, carefully remove the Micro Dream Mat and rinse it into a gold pan or cleanup tub. The removable, riffle-free design makes it easy to inspect and process the resulting concentrates.

Important Mat Information

Micro Dream Mats feature a tight, complex molded profile. Small air bubbles or minor surface imperfections may occasionally be present and do not affect mat performance. Mat color may vary according to the manufacturer’s current production run.

Why Choose the Big Foot Sluice with Micro Dream Mat?

The 10″ x 35″ Big Foot Sluice with Micro Dream Mat is purpose-built for prospectors who want improved recovery of extremely fine gold without taking home excessive amounts of concentrates. Its compact aluminum body, specialized vortex-cell mat and convenient cleanup system make it an excellent choice for fine-gold streams, sandy material, beach deposits and finishing work.

Recover Fine Gold, Reduce Your Concentrates and Make Every Cleanup Count with the 10″ x 35″ Big Foot Sluice with Micro Dream Mat.

10"X35" BIG FOOT SLUICE W/ MICRO MAT

New BIG FOOT series sluices are shorter to give a more versatile use. Easier to get good slope drop, easier to fit in your pack. With front row gold capture, you can sluice w/ confidence.

THE WING NUT PRESSURE CLAMP. 16 Ga. ALUIM. CONSTRUCTION IS VERY STURDY.

Dream Mat Micro Mat is a great beach mat & finishing mat. This mat is capturing uber fine gold w/ very little cons. Makes a great addition to the Mini Mat set up for fine gold recovery.

Miners doing fine gold recovery in Australia wanted a larger version to catch the fine gold from crushing's. We see folks showing off gold in this mat all the time. It's so fun & easy to use!

COLORS MAY VARY!
